Installation Procedure

    Fig 1: Identifying Fuel Tank Fill Pipe & Recirculation Hose
    GM1480087Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel fill pipe to the vehicle frame and install the push-pin retainer.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fuel fill pipe ground strap bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Uncap the fuel fill hose.
  4. Connect the fuel fill pipe to the fuel tank.

    Tighten:  Tighten the clamp to 2.5 N.m (22 lb in).

  5. Connect the fuel filler pipe recirculation hose to the fuel tank. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
  6. Lower the vehicle.

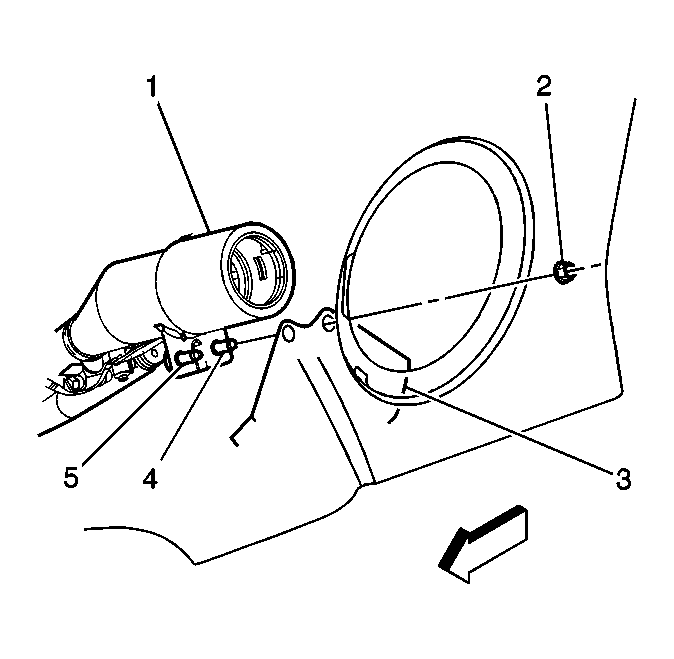

    7. Fig 2: Locating Fuel Fill Pipe Bracket Nut
    GM730799Courtesy of GENERAL MOTORS CORP.
  7. Install the fuel fill pipe bracket nuts (2).

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

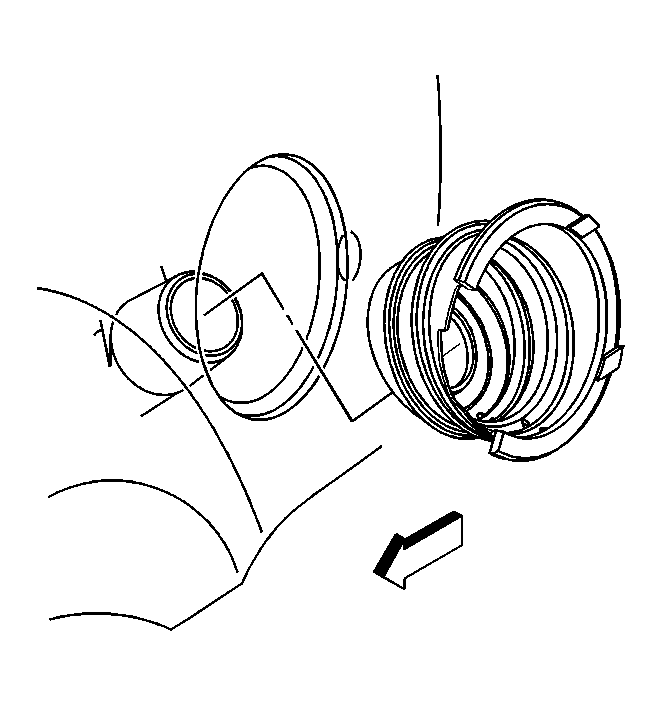

    8. Fig 3: View Of Fuel Fill Pipe Housing
    GM730795Courtesy of GENERAL MOTORS CORP.
  8. Install the fuel fill pipe housing.
  9. Install the fuel fill cap.
