Installation Procedure

  1. Install the new fuel tank pressure sensor seal.

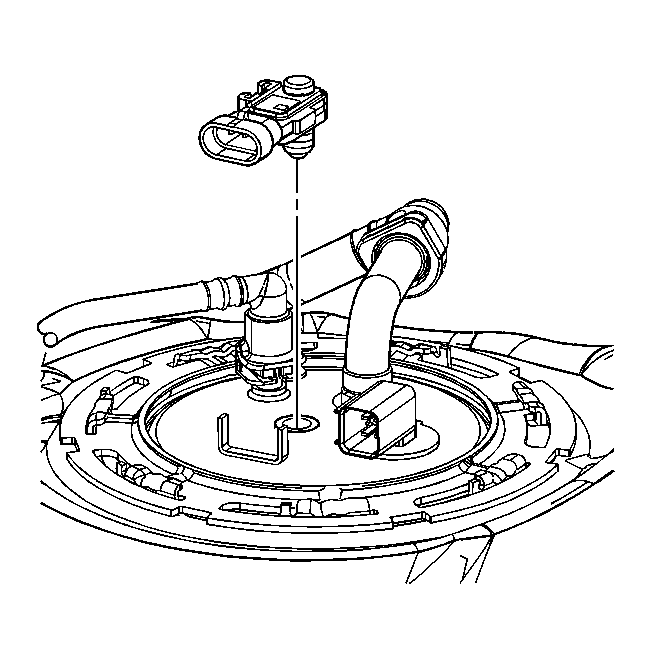

    2. Fig 1: View Of Fuel Tank Pressure Sensor
    GM1480291Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel tank pressure sensor.
  3. Connect the fuel tank sensor harness connector.
  4. Install the fuel tank. Refer to Fuel Tank Replacement .
