Installation Procedure

  1. Support the fuel tank.
    2. Fig 1: View Of Connections On Top Of Fuel Tank
    GM1480091Courtesy of GENERAL MOTORS CORP.
  2. Connect the fuel sender electrical connector (1).
  3. Connect the EVAP vent valve electrical connector (2).
  4. Connect the fuel pressure sensor electrical connector (8).

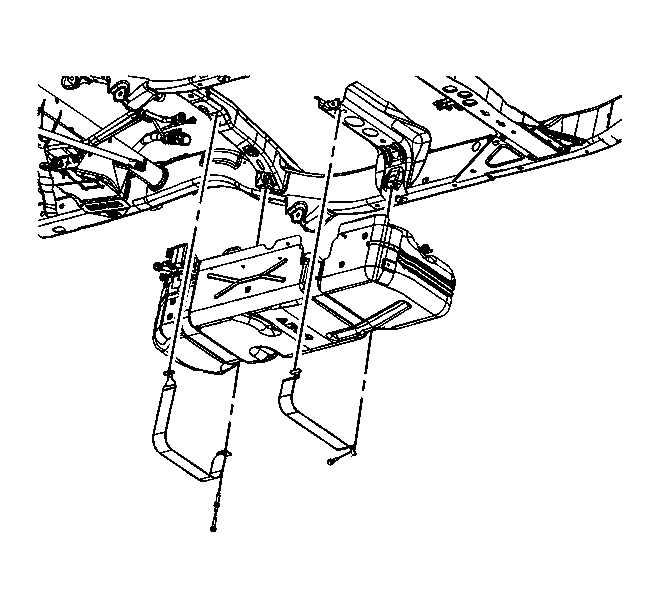

    5. Fig 2: Identifying Fuel Tank Straps
    GM1480086Courtesy of GENERAL MOTORS CORP.
  5. Install the fuel tank straps.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the fuel tank strap attaching bolts.

    Tighten:  Tighten the bolts to 32 N.m (24 lb ft).

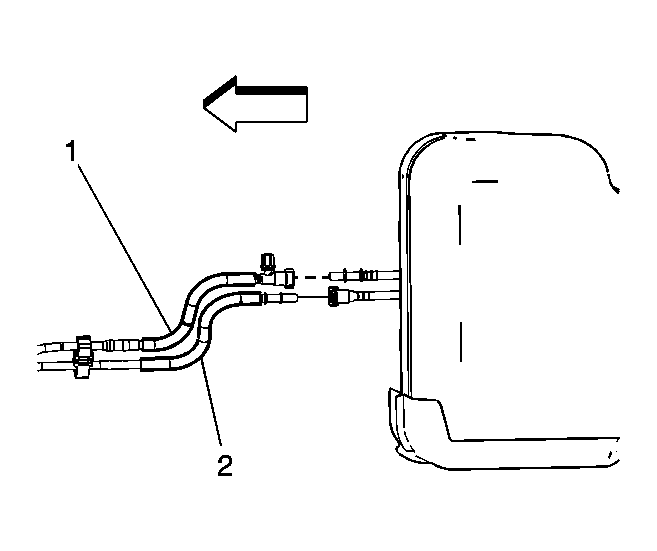

    7. Fig 3: Identifying Fuel Feed Pipe & EVAP Pipes
    GM1368522Courtesy of GENERAL MOTORS CORP.
  7. Remove the caps from the fuel and EVAP pipes.
  8. Connect the fuel feed pipe (1) and the EVAP pipe (2). Refer to Quick Connect Fitting(s) Service (Plastic Collar) .

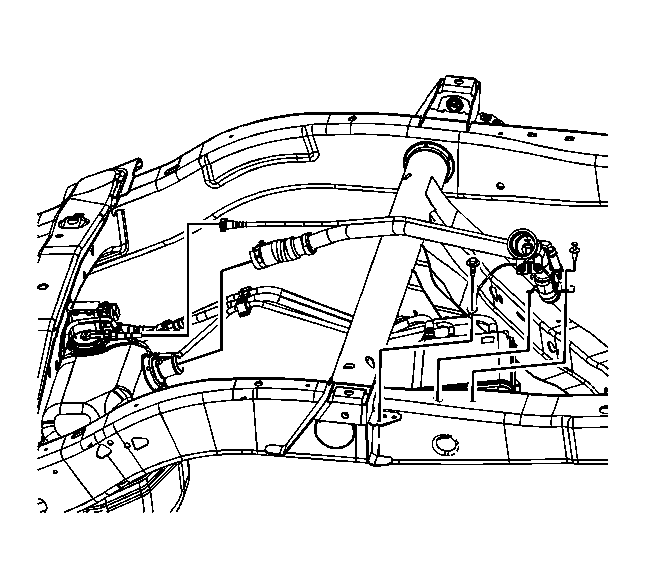

    9. Fig 4: Identifying Fuel Tank Fill Pipe & Recirculation Hose
    GM1480087Courtesy of GENERAL MOTORS CORP.
  9. Connect the fuel fill pipe to the fuel tank.

    Tighten:  Tighten the fuel fill hose clamp to 2.5 N.m (22 lb in).

  10. Connect the fuel filler pipe recirculation hose to the fuel tank. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .

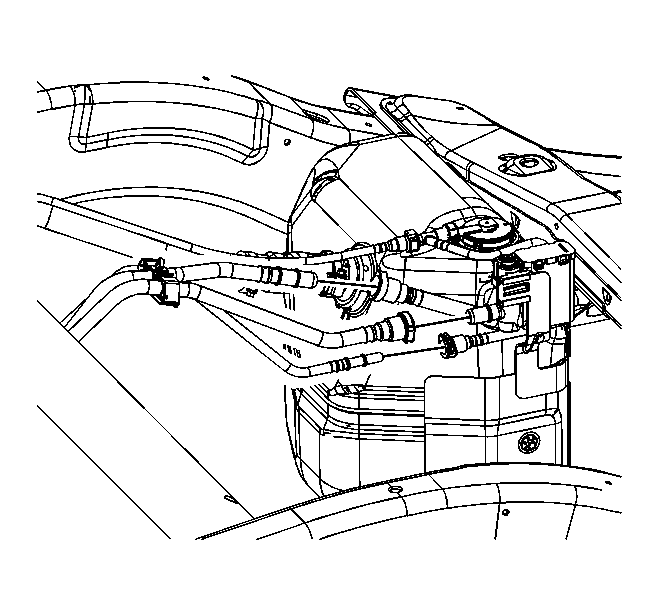

    11. Fig 5: Identifying Evaporative Emission (EVAP) Canister Pipes
    GM1480088Courtesy of GENERAL MOTORS CORP.
  11. Connect the EVAP purge pipe. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
  12. Connect the EVAP canister solenoid pipe. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
  13. Connect the EVAP canister fresh air pipe. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
  14. Lower the vehicle.
  15. Refill the fuel tank.
  16. Install the fuel filler cap.
  17. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  18. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  19. Inspect for leaks.
    1. Turn ON the ignition, with the engine OFF for 10 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition, with the engine OFF.
    4. Inspect for fuel leaks.
  20. Install the fuel tank shield, if equipped. Refer to Fuel Tank Shield Replacement in Frame and Underbody.
  21. Install the frame brace. Refer to Frame Brace Replacement in Frame and Underbody.
  22. Lower the vehicle.
