Installation Procedure

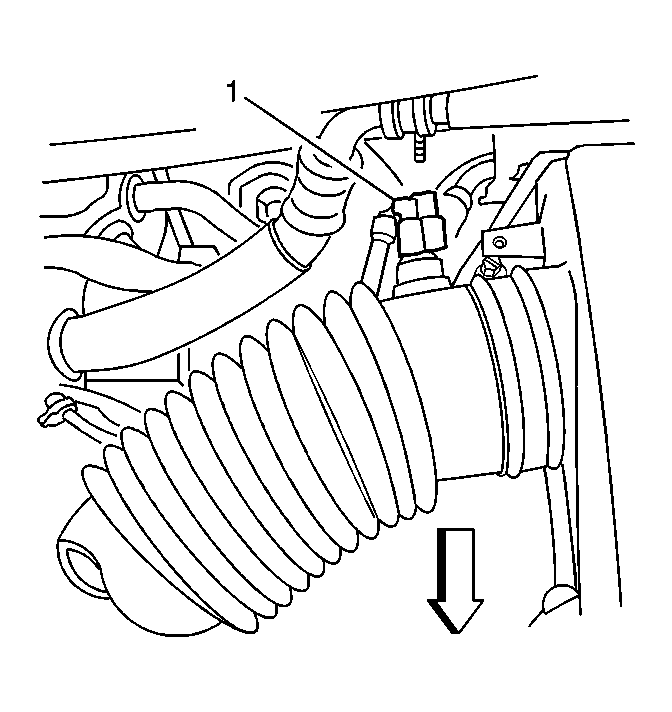

    Fig 1: Locating Intake Air Temperature Sensor
    GM732048Courtesy of GENERAL MOTORS CORP.
  1. Install the IAT sensor (1) to the air duct with a pushing and twisting motion.
  2. Reconnect the IAT sensor electrical connector.
