Installation Procedure

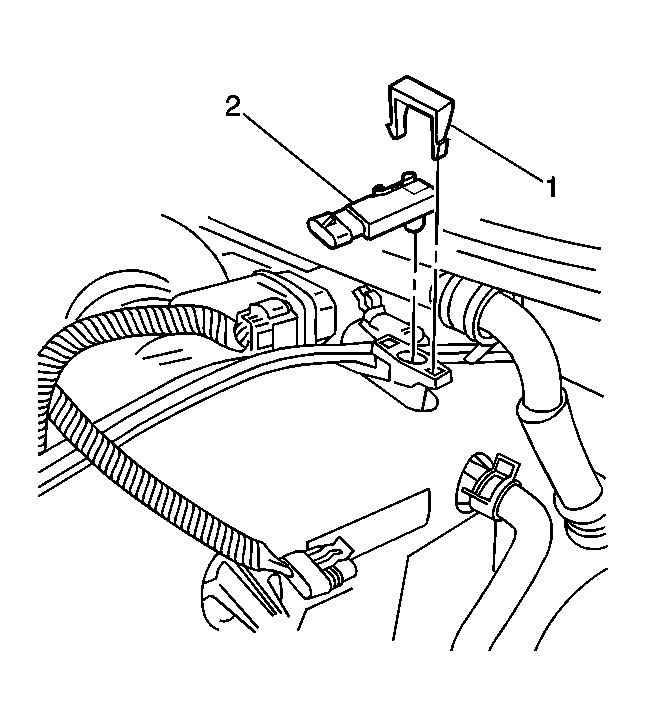

    Fig 1: View Of MAP Sensor & Retainer
    GM732839Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor (2).
  2. Install the MAP sensor retainer (1).

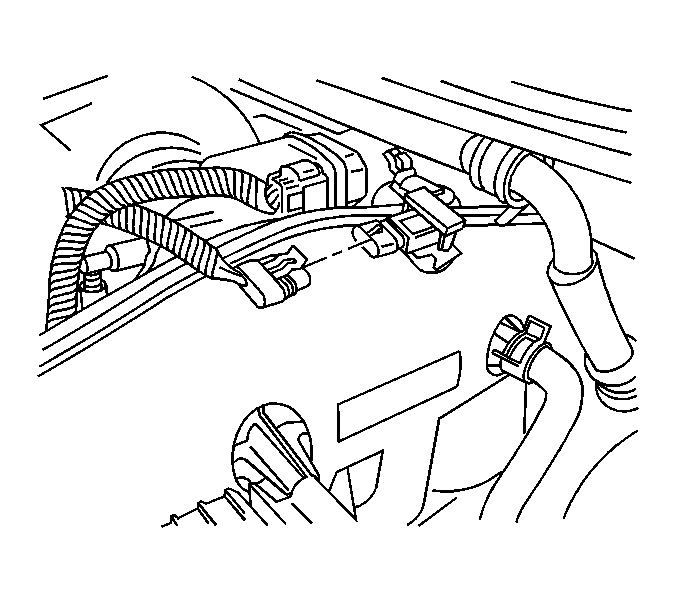

    3. Fig 2: View Of MAP Sensor Electrical Connector
    GM732831Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector.
