Initial Inspection and Diagnostic Overview

Keyless Transmitter Battery

Inspection

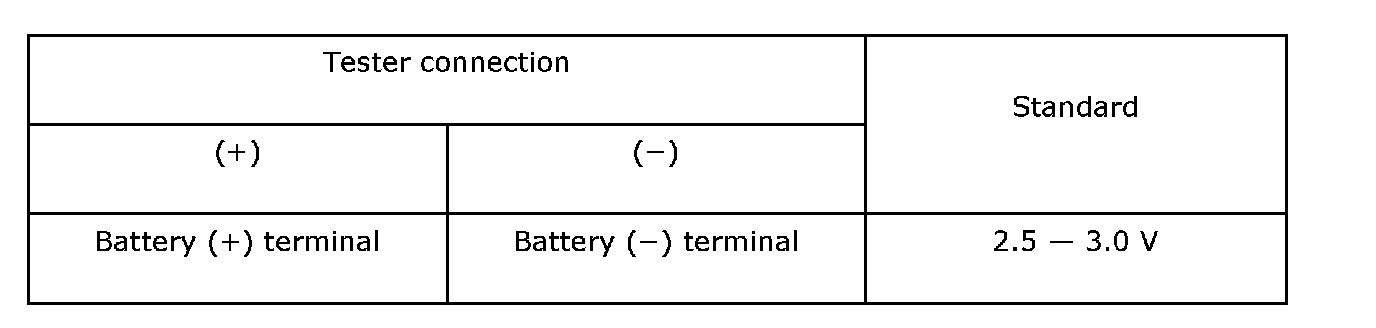

Measure the voltage between battery (+) terminal and (-) terminal.

NOTE:
- Battery discharge occurs during measurement. Complete the measurement within 5 seconds.












If NG, replace the battery. (Use CR1620 or equivalent.)
