Computers and Control Systems: Locations

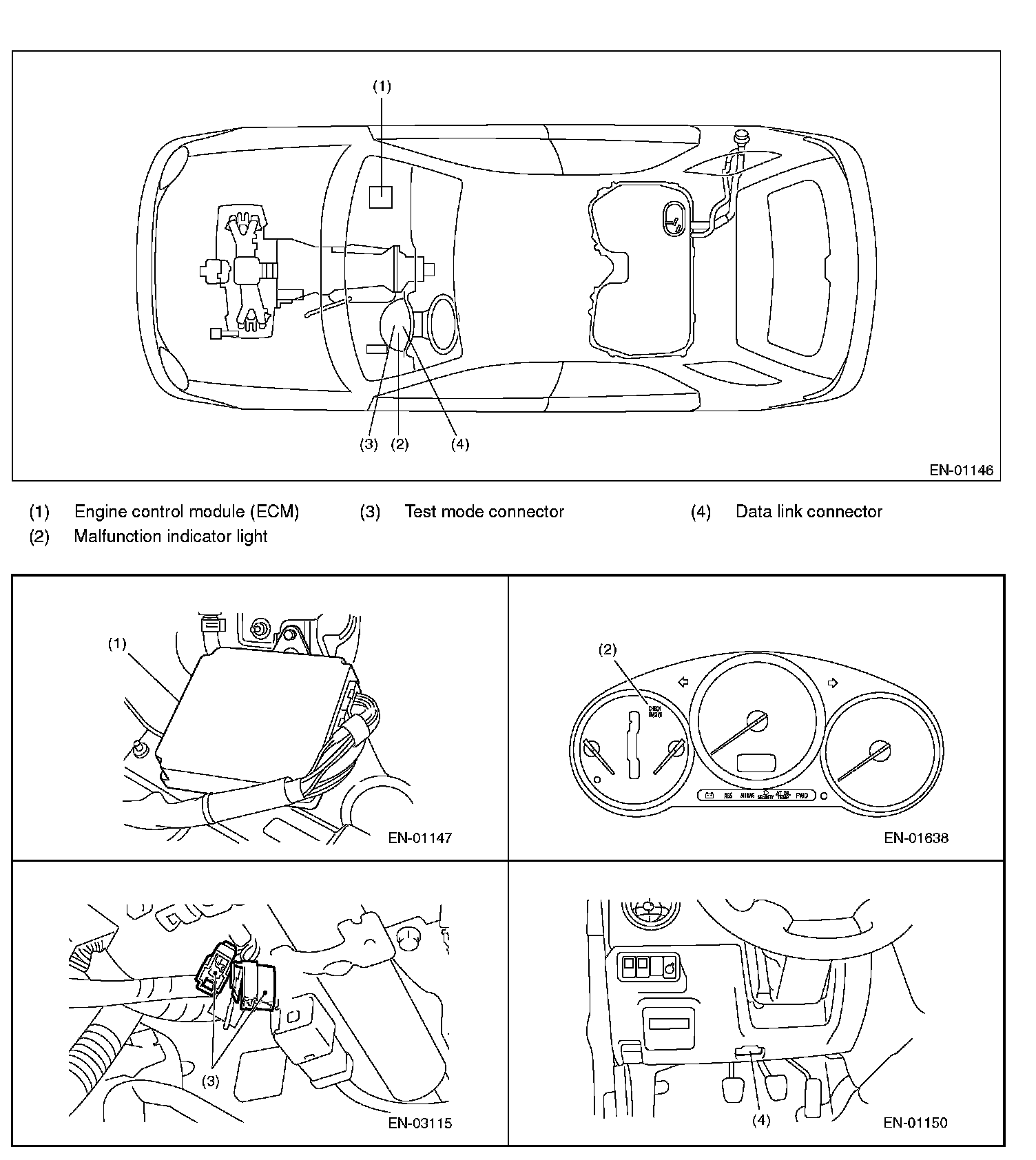

Control Module:

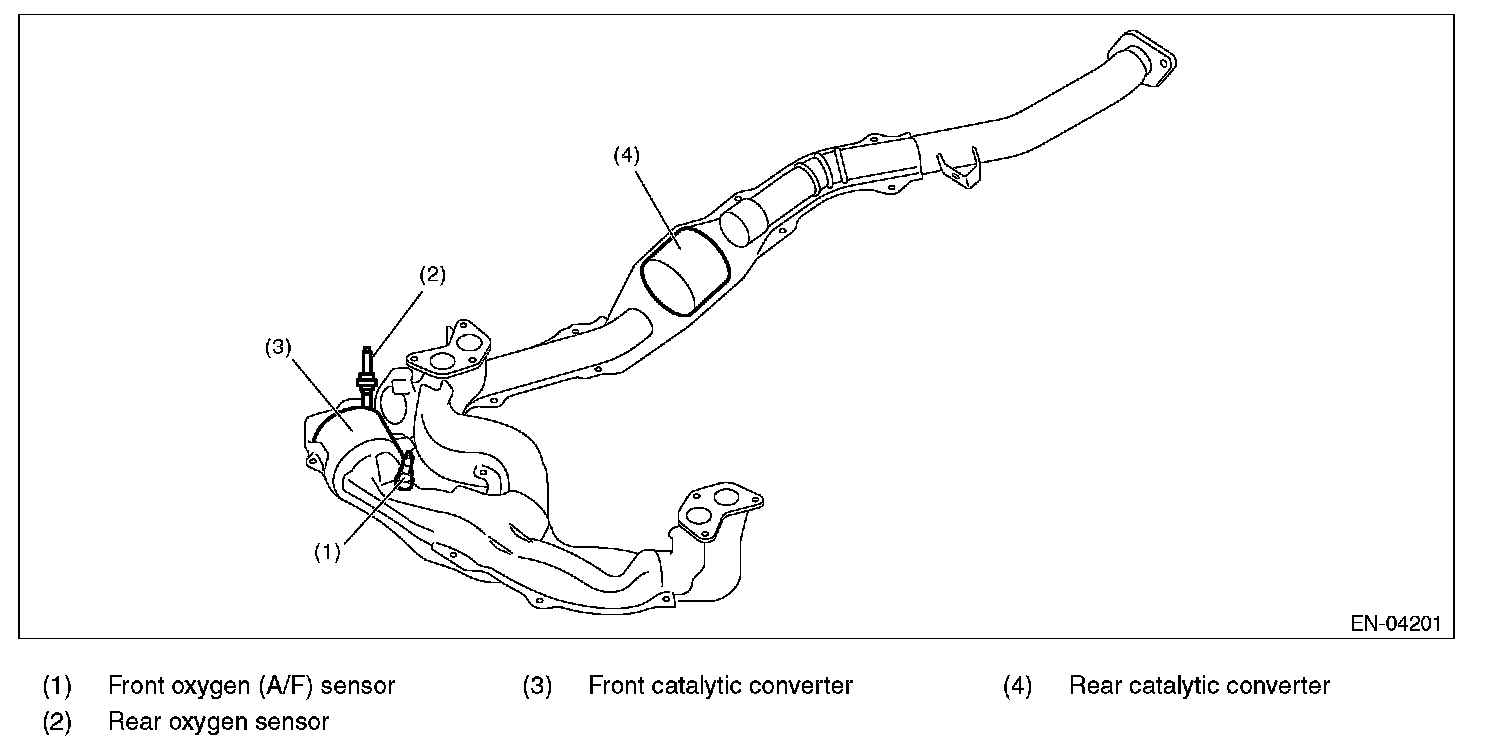

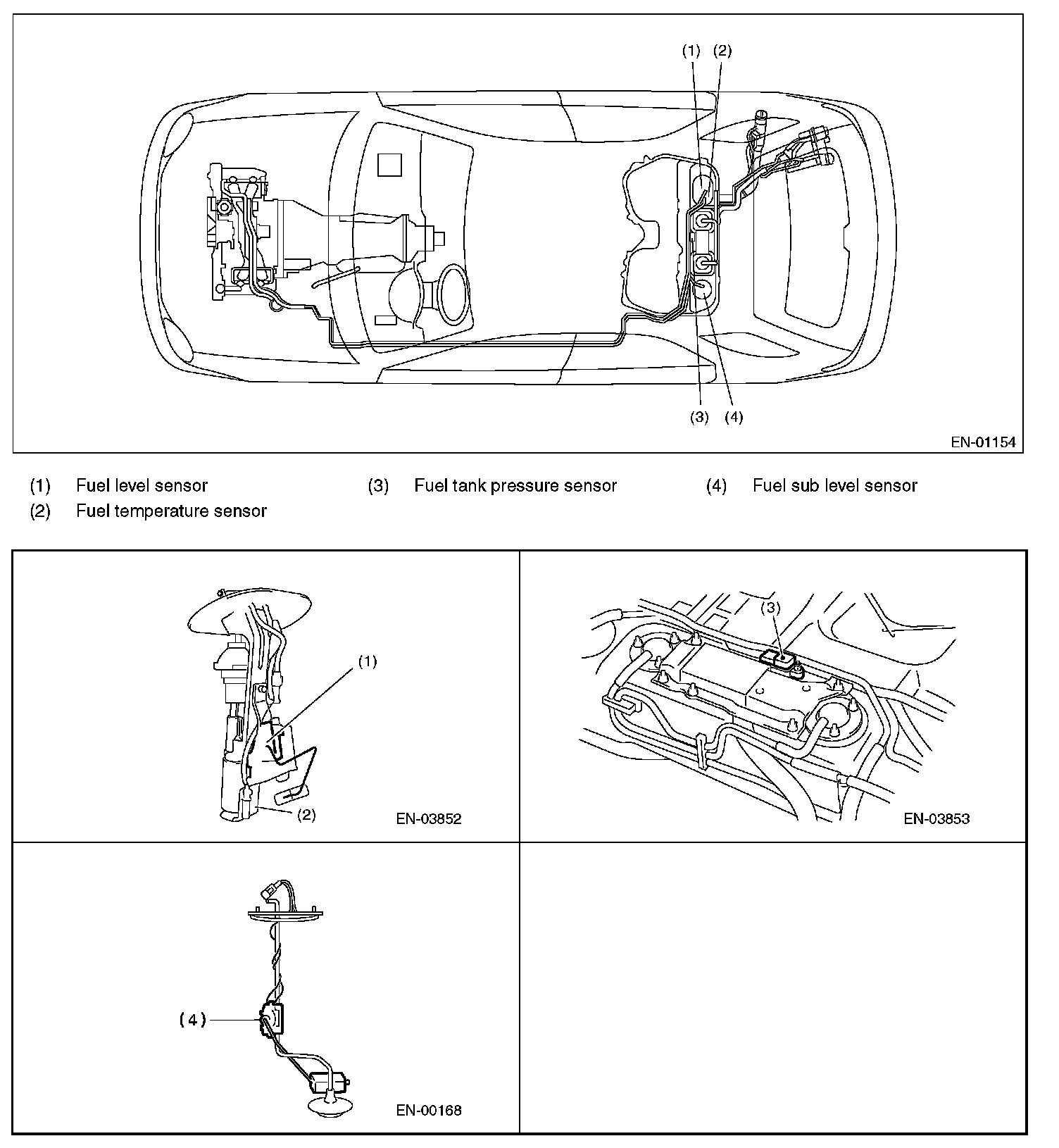

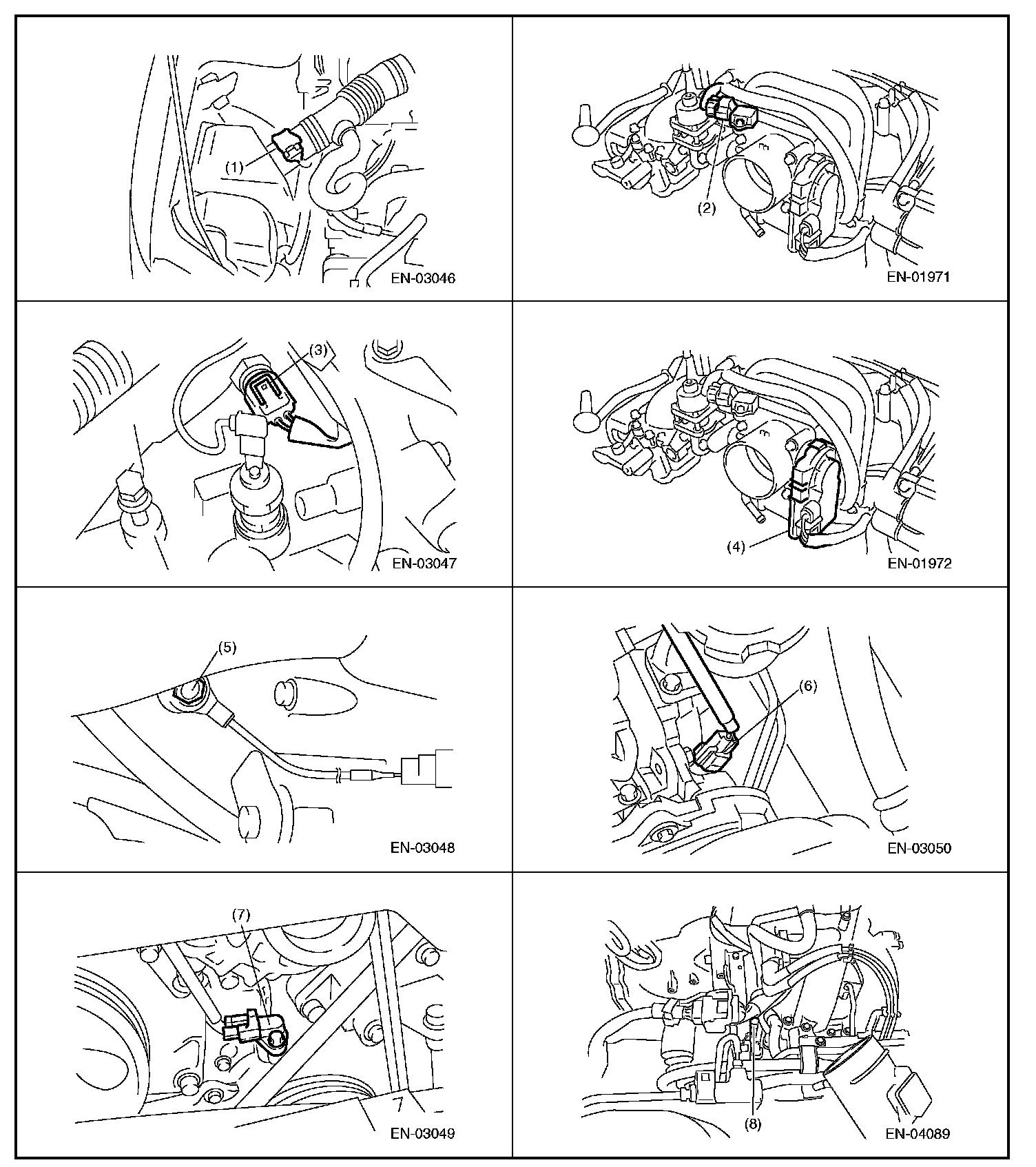

Sensor (Part 1):

Sensor (Part 2):

Sensor (Part 3):

Sensor (Part 4):

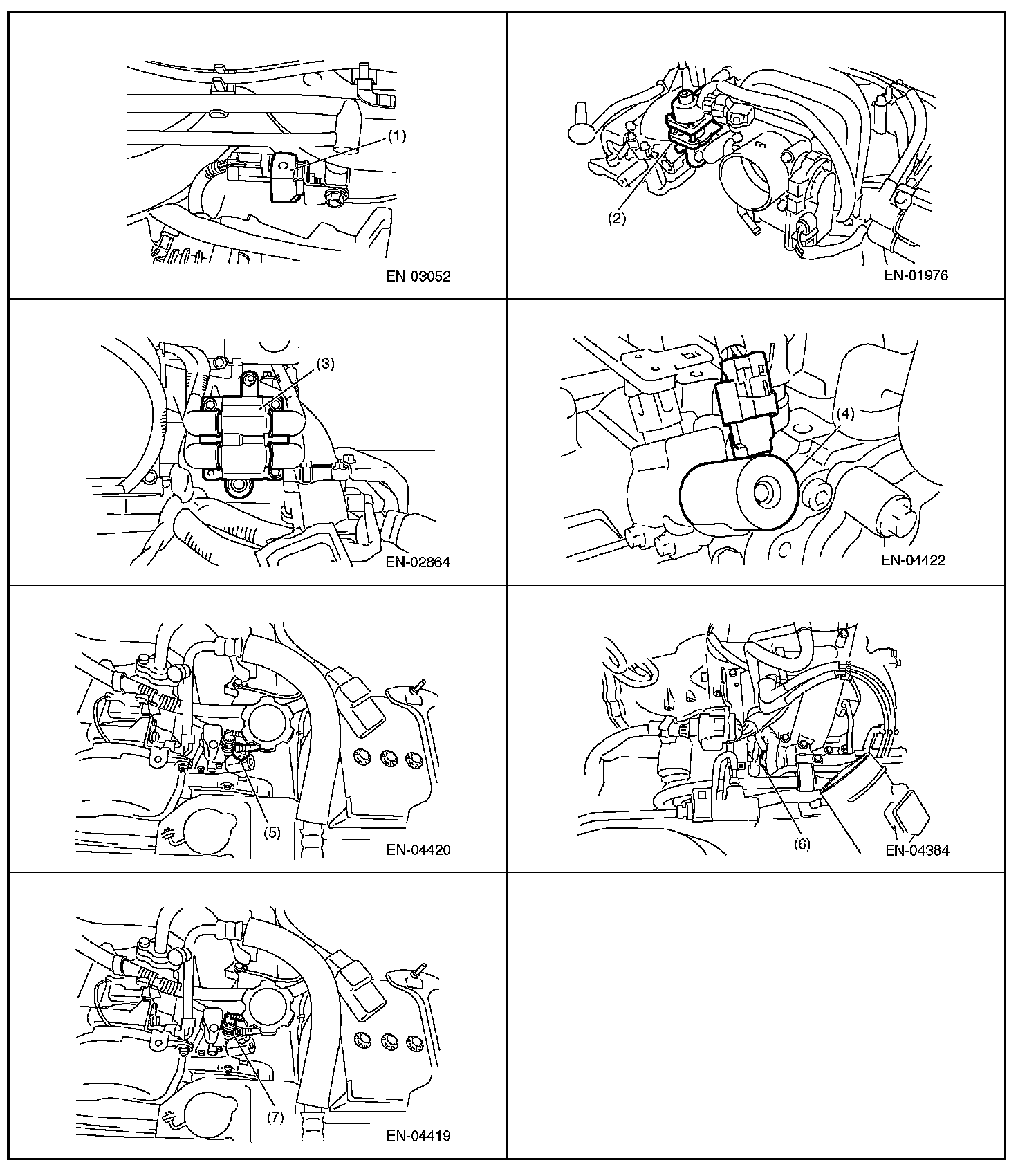

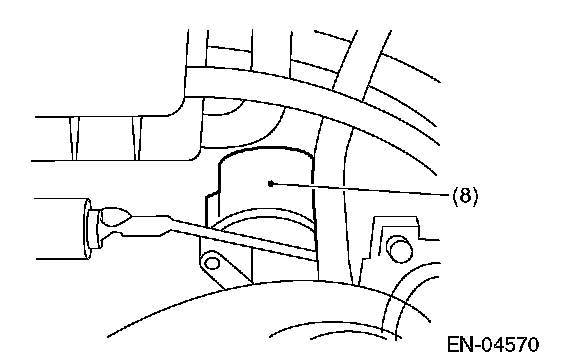

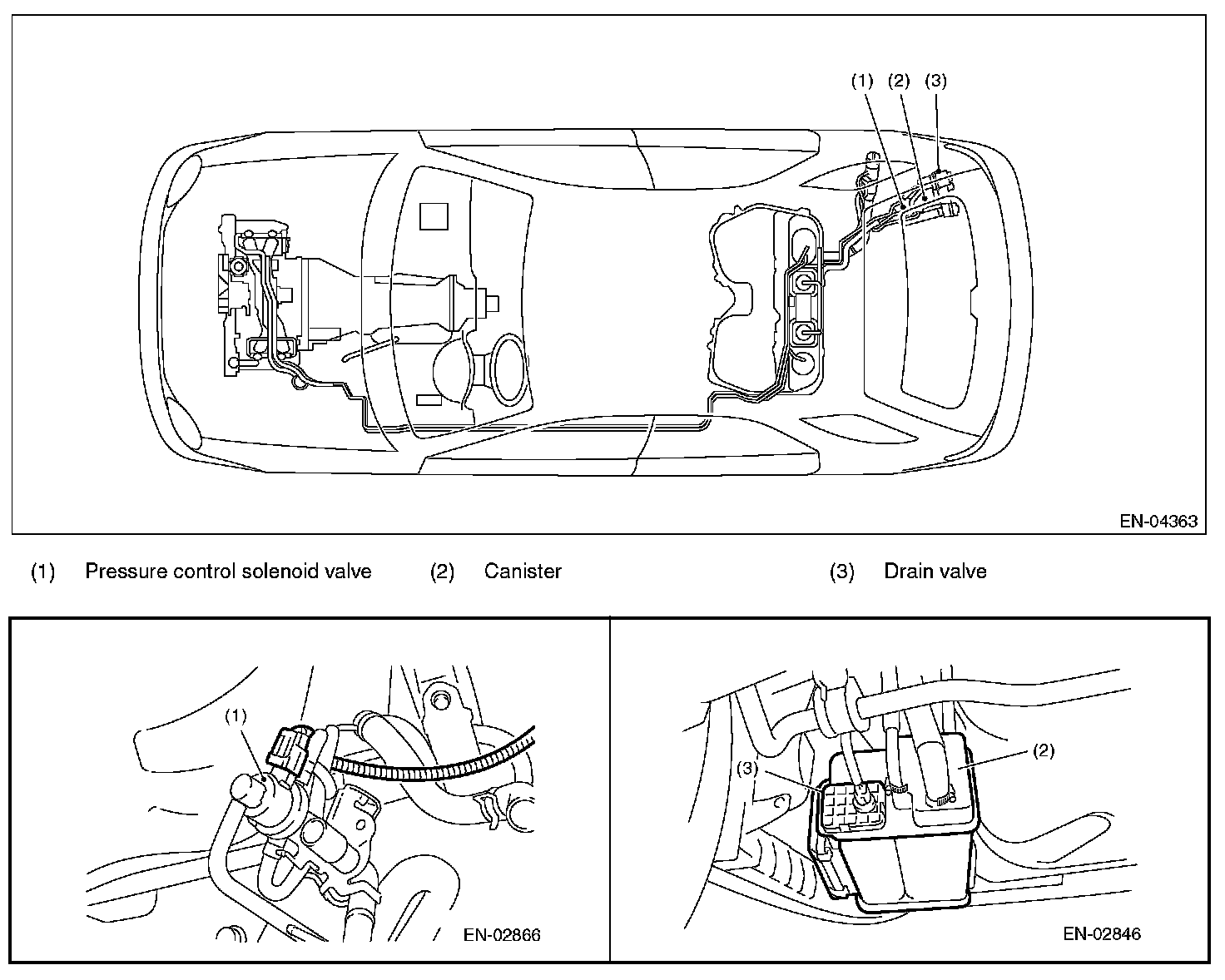

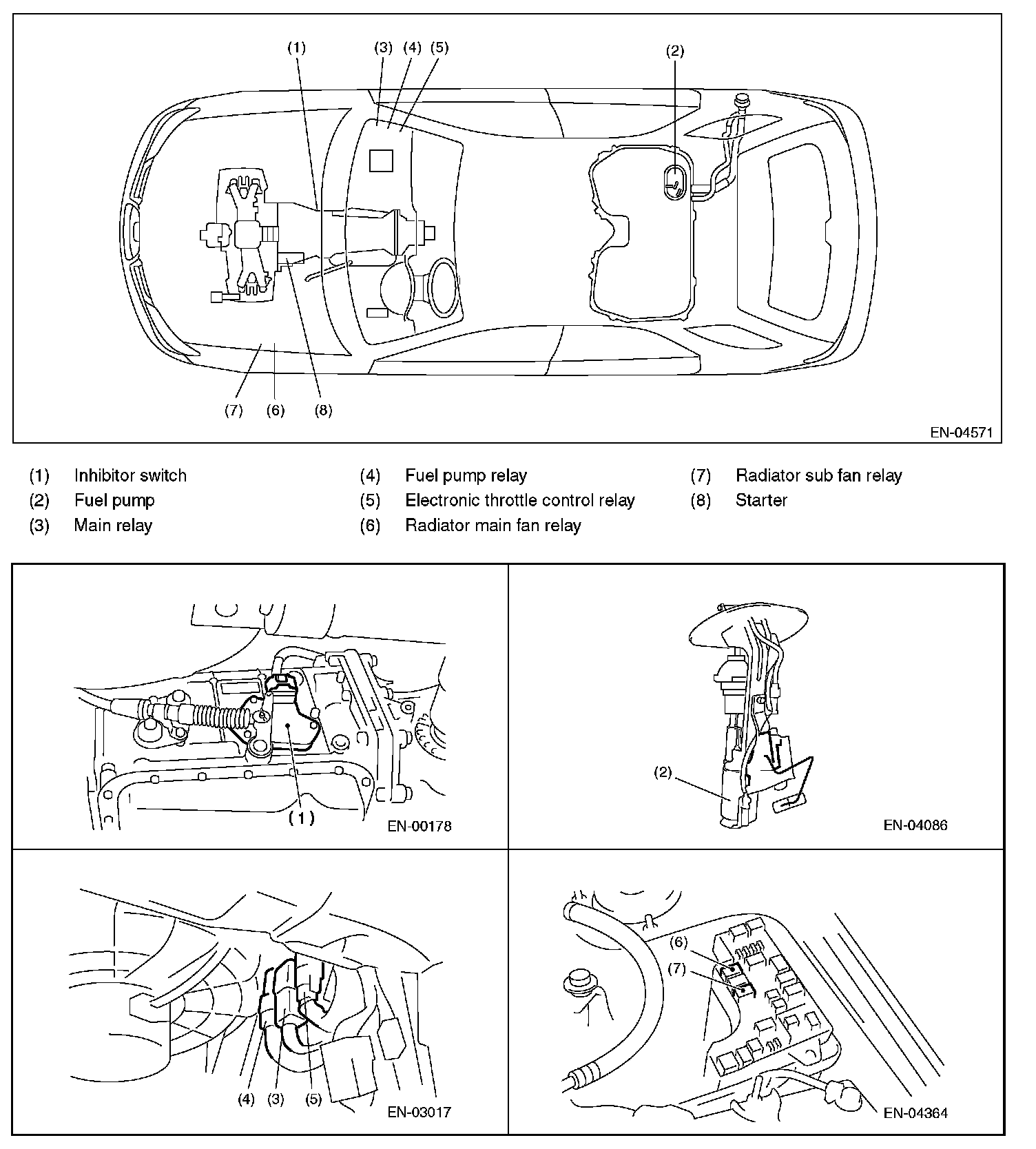

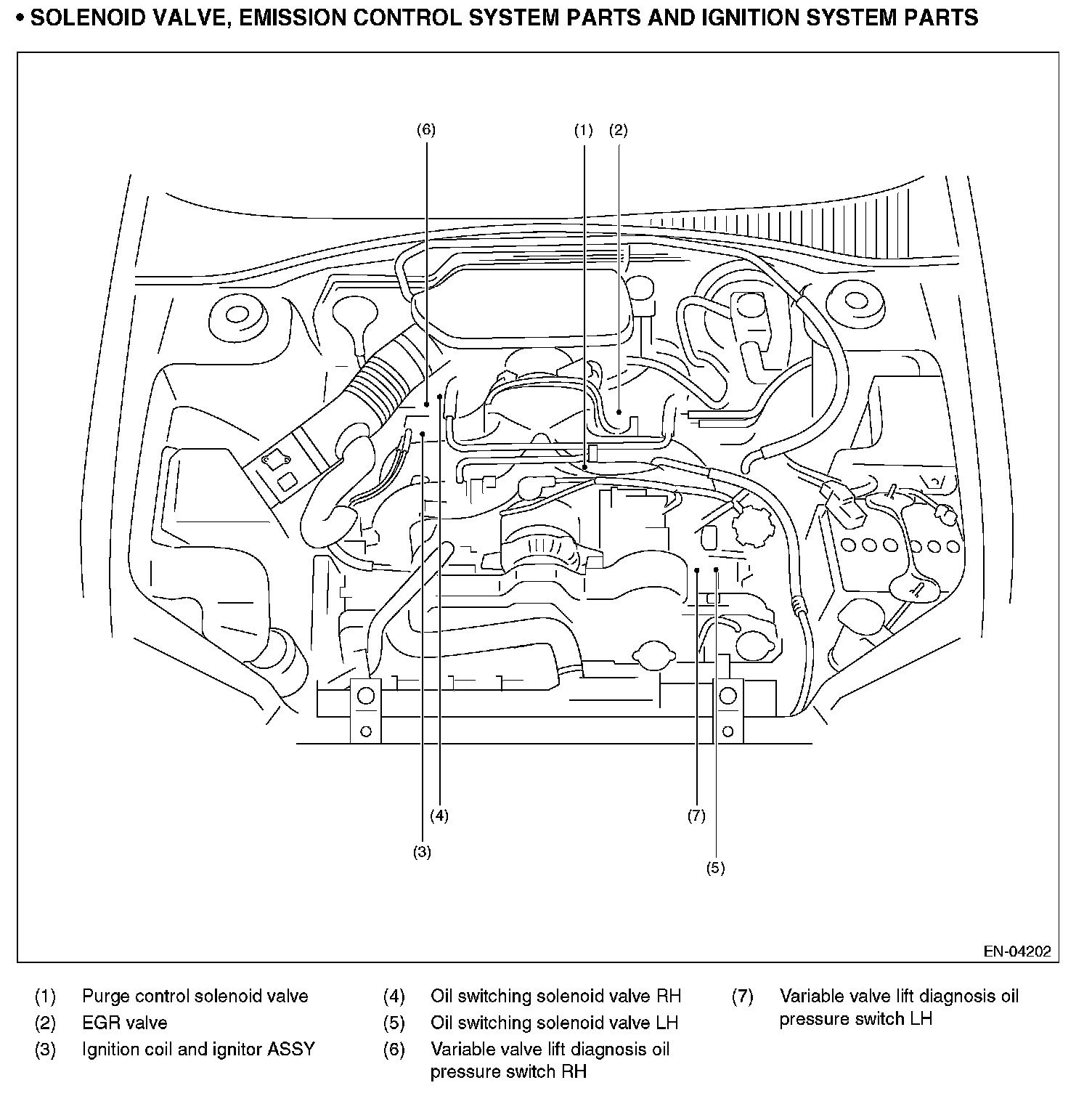

Solenoid Valve, Emission Control System Parts And Ignition System Parts (Part 1):

Solenoid Valve, Emission Control System Parts And Ignition System Parts (Part 2):

Solenoid Valve, Emission Control System Parts And Ignition System Parts (Part 3):

Solenoid Valve, Emission Control System Parts And Ignition System Parts (Part 4):

Solenoid Valve, Emission Control System Parts And Ignition System Parts (Part 5):
