Oil Temperature Sensor For ECM: Service and Repair
Oil Temperature SensorREMOVAL
1. Disconnect the ground cable from battery.
2. Remove the air intake chamber.
3. Remove the engine harness connector from bracket.
4. Disconnect the connector from oil temperature sensor.

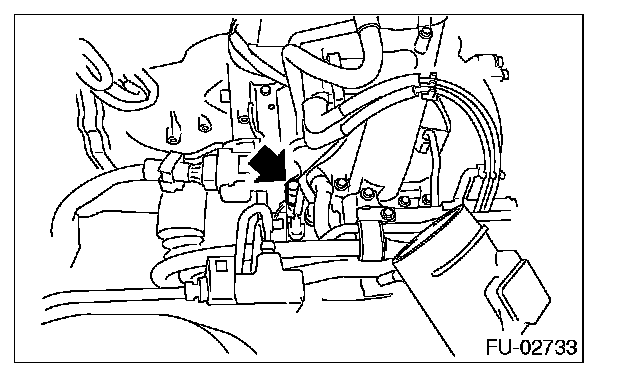

5. Remove the oil temperature sensor.
INSTALLATION
Install in the reverse order of removal.
Tightening torque: 18 Nm (1.8 kgf-m, 13.3 ft. lbs.)
