Transmission Position Sensor/Switch: Adjustments
Inhibitor SwitchADJUSTMENT
1. Move the select lever to "N" range.
2. Loosen the three inhibitor switch securing bolts.

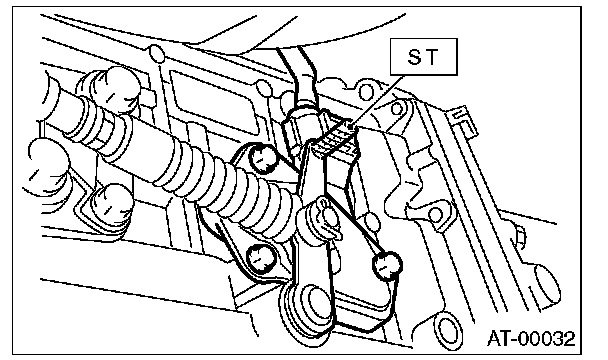

3. Insert the ST as vertical as possible into the holes in inhibitor switch lever and switch body.
ST 499267300 STOPPER PIN
4. Tighten the three inhibitor switch bolts.
Tightening torque:
3.5 Nm (0.36 kgf-m, 2.6 ft. lbs.)
5. Repeat the above checks. If the inhibitor switch is determined to be "faulty", replace it.
