AT Shift Lock Solenoid and "P" Range Switch
AT Shift Lock Solenoid and "P" Range SwitchREMOVAL
1. Disconnect the ground cable from battery.
2. Remove the console box.
3. Disconnect the connector.
4. Remove the grip.
5. Remove the indicator bulb from indicator cover.
6. Remove the indicator cover.
7. Remove the blind.
8. Remove the cushion.
9. Remove the clip, and then remove the "P" range switch.
10. Remove the cover.
11. Remove the clamp, and then remove the shift lock solenoid.
INSTALLATION
Install in the reverse order of removal.

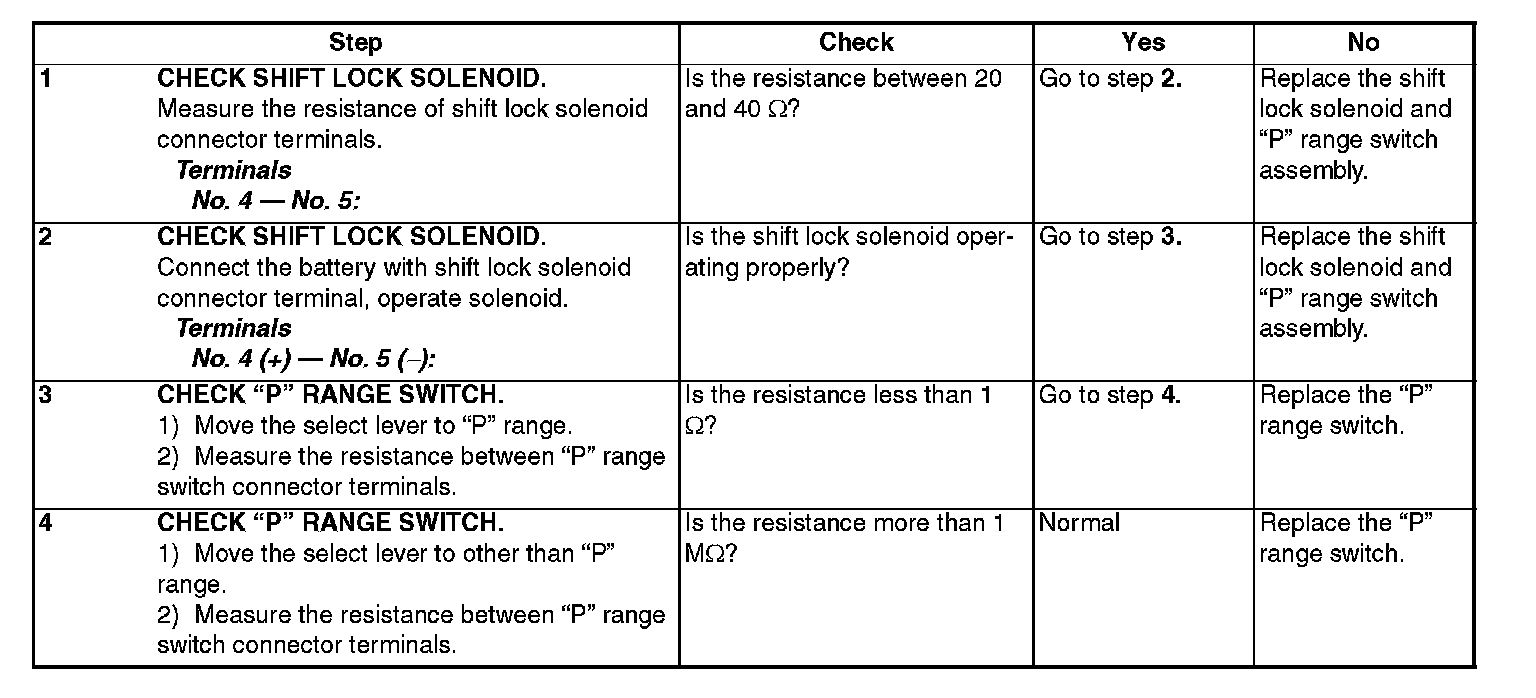

INSPECTION
Step 1 - Step 4:
