Power Seat Component Views



Power Seat Component Views

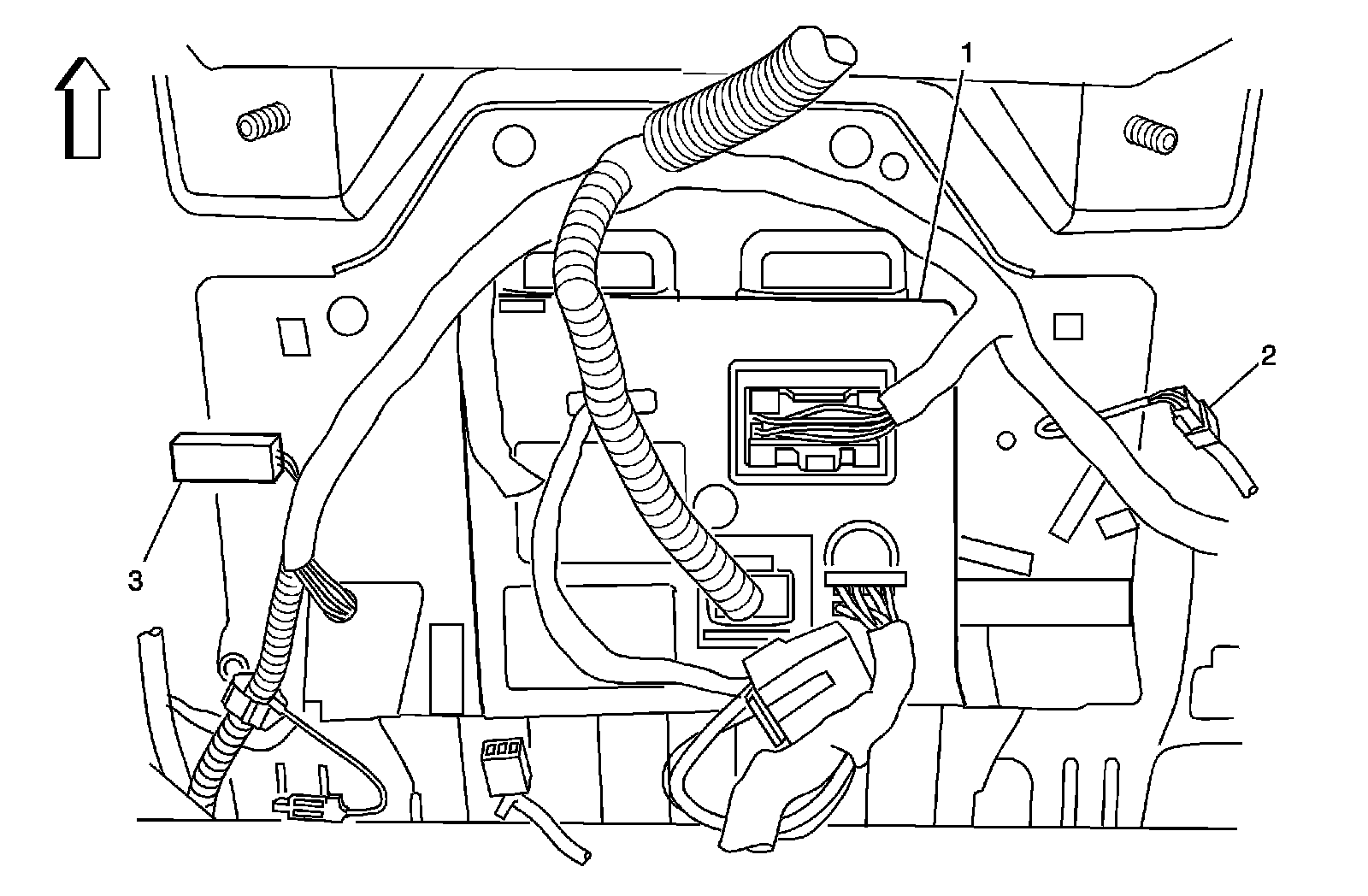

Beneath Driver Seat Cushion




1 - Memory Seat Module - Driver
2 - Heated Seat Element Connector - Driver Cushion
3 - Seat Belt Switch Connector - Driver
