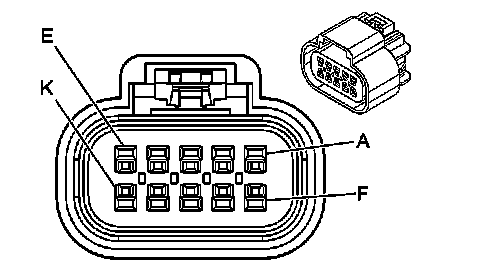

Charging System Control Module



Engine Electrical Connector End Views

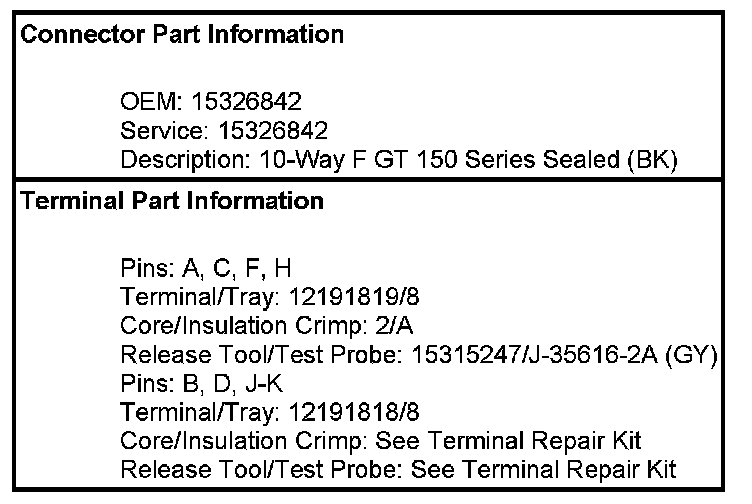

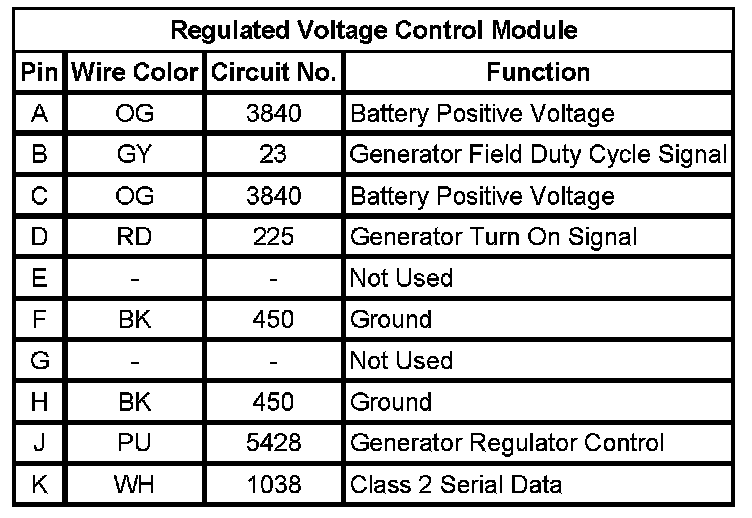

Regulated Voltage Control Module
