Vehicle Communication Interface Module (VCIM)



Component Connector End Views

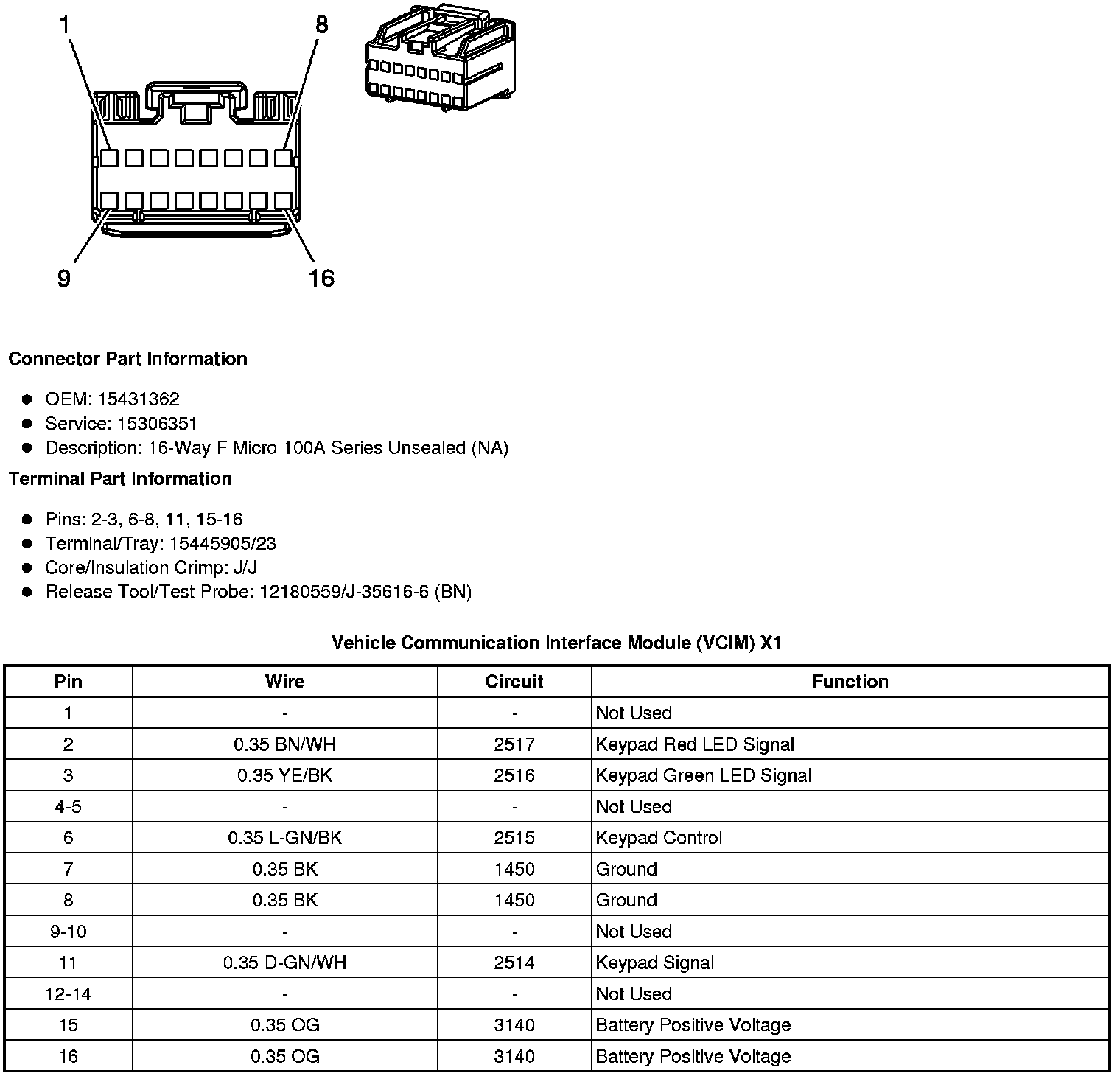

Vehicle Communication Interface Module (VCIM) X1

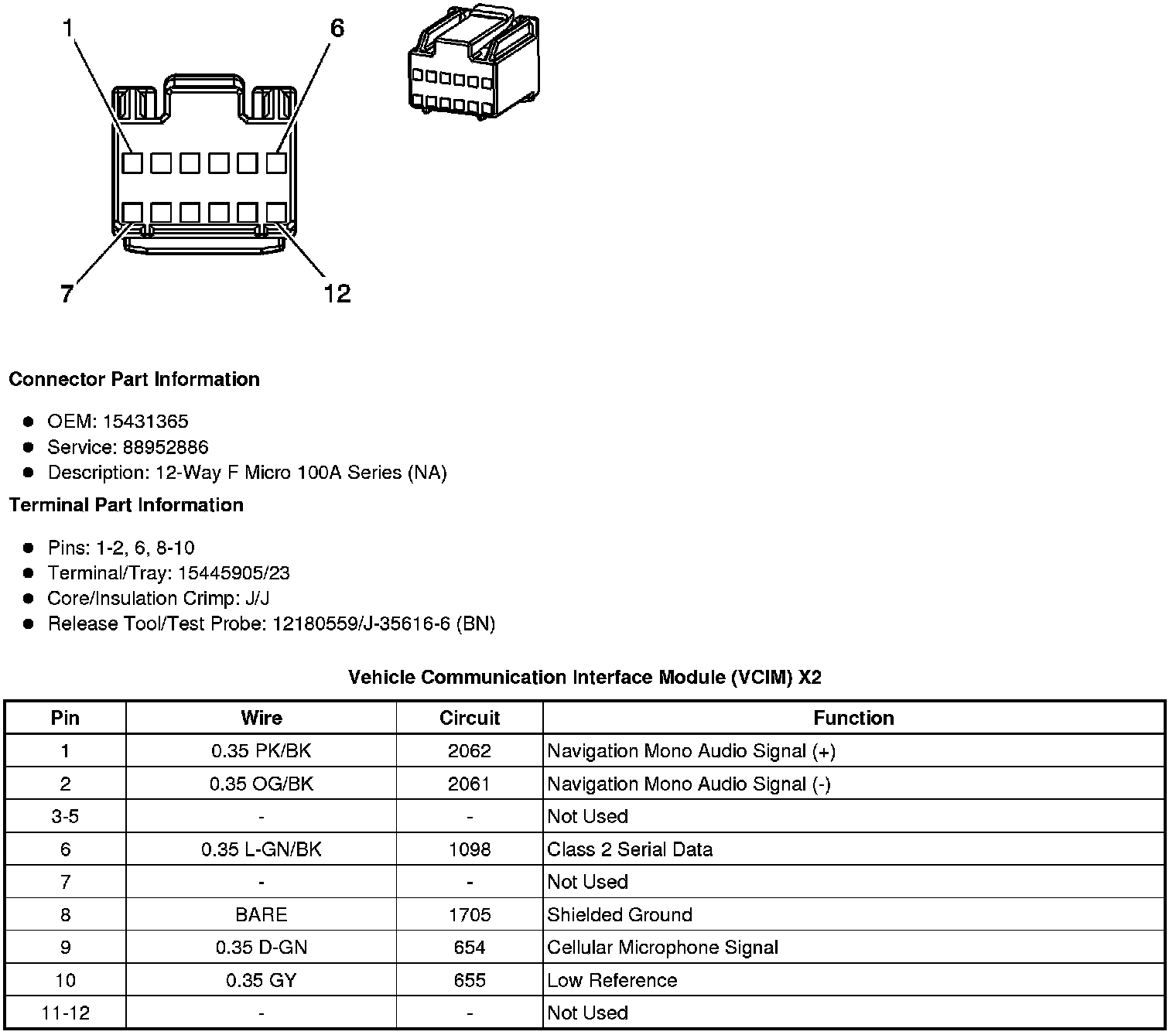

Vehicle Communication Interface Module (VCIM) X2
