Control Module HVAC



Component Connector End Views

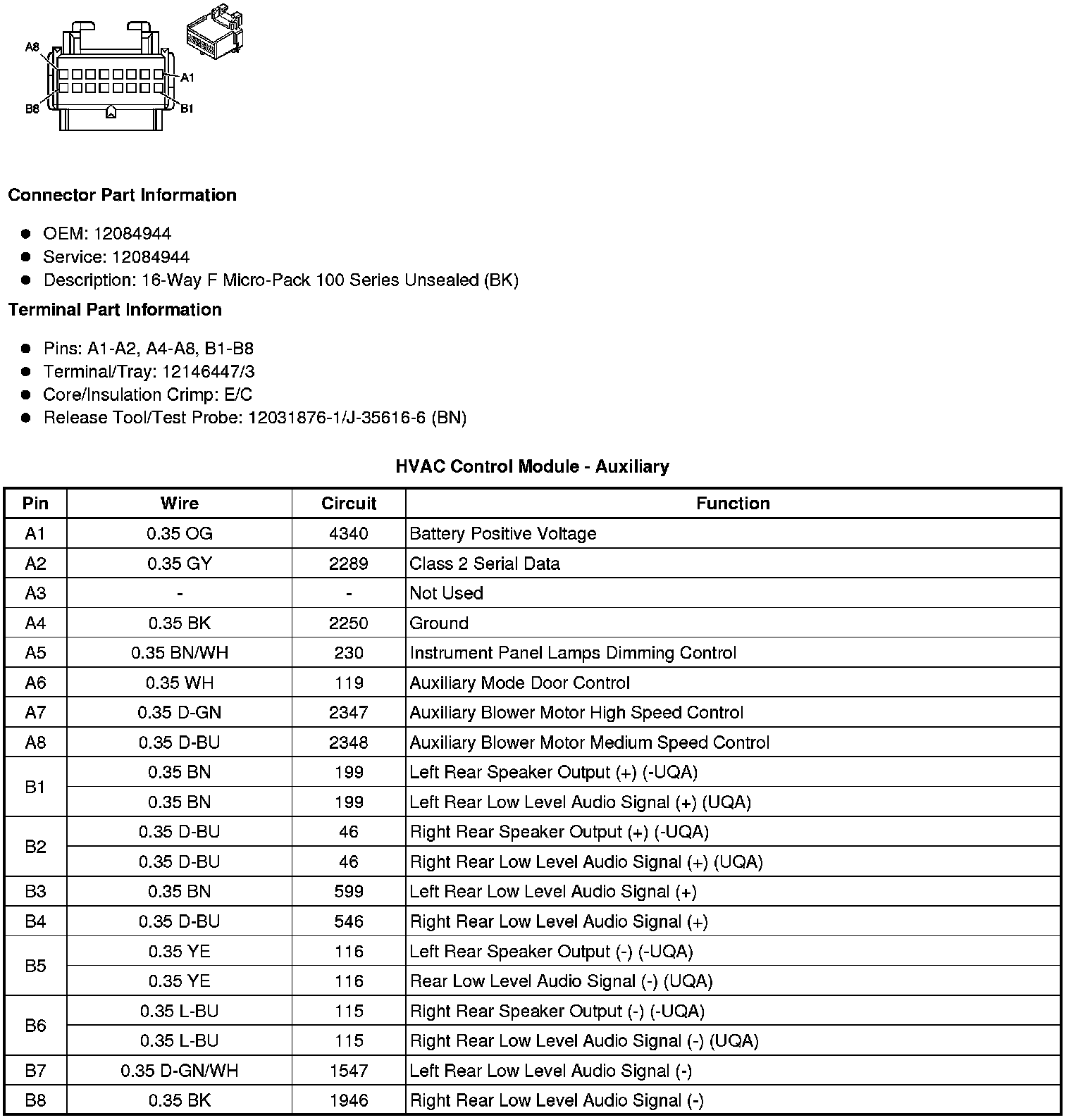

HVAC Control Module - Auxiliary

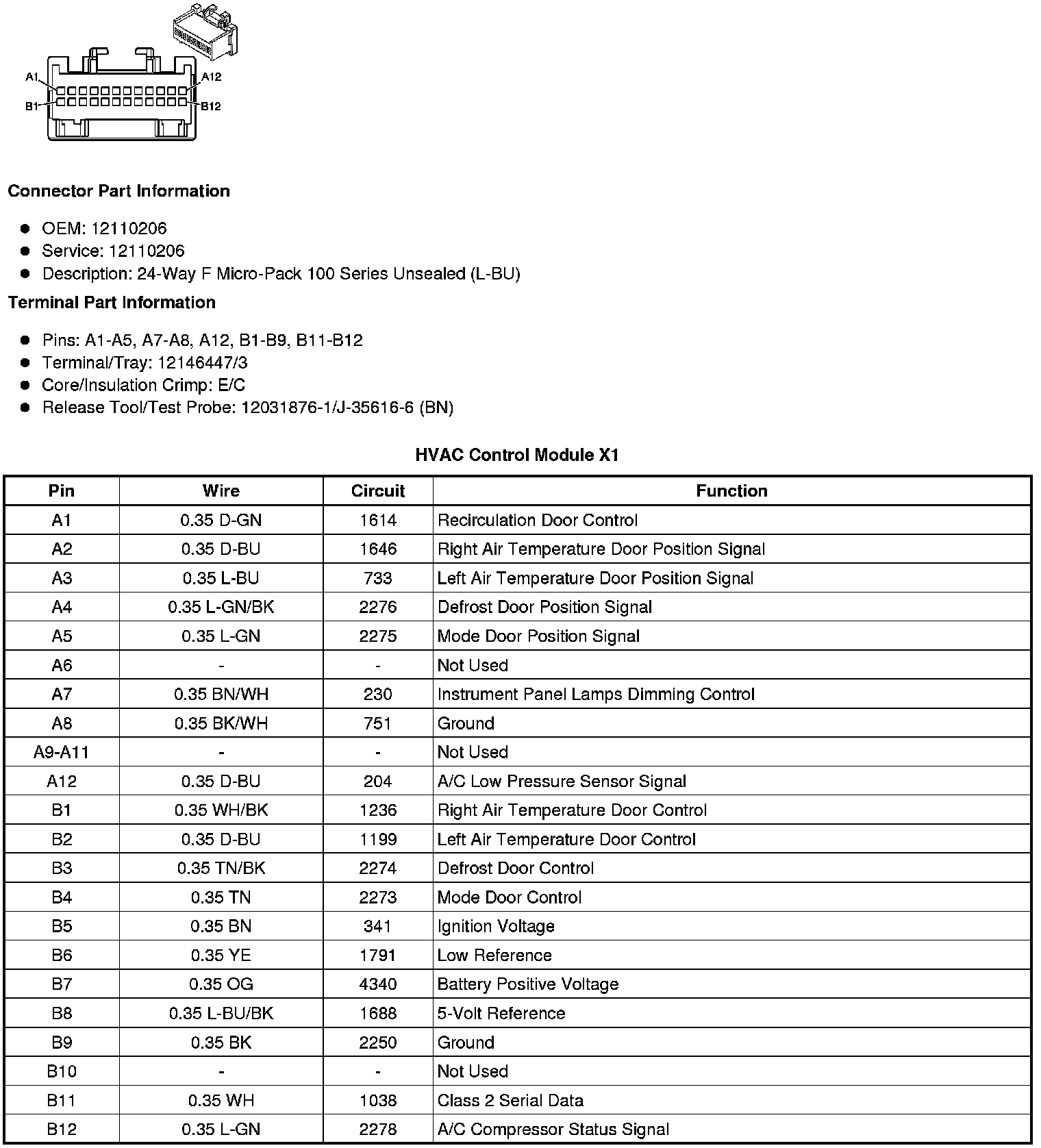

HVAC Control Module X1

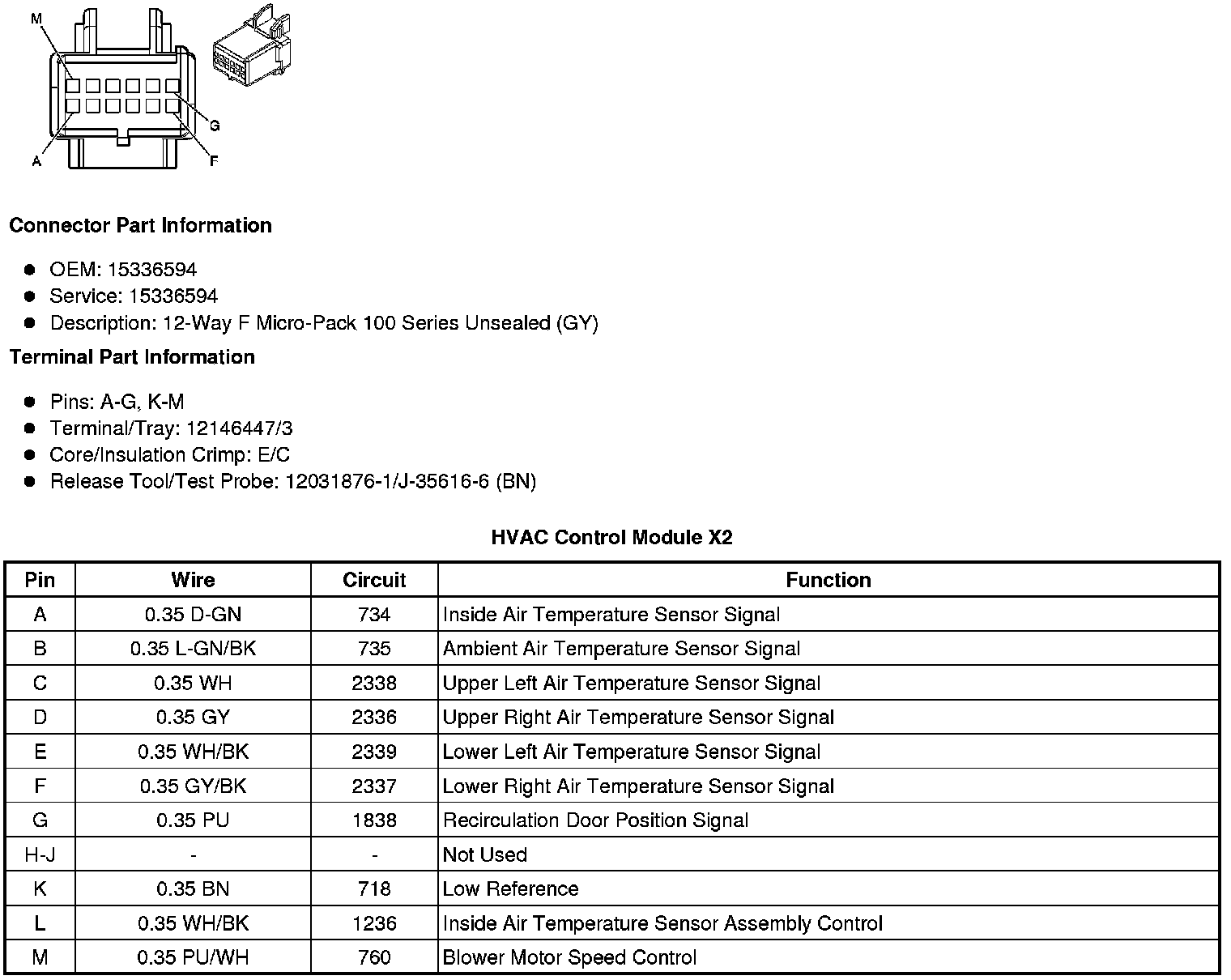

HVAC Control Module X2
