Engine Control Module



Component Connector End Views

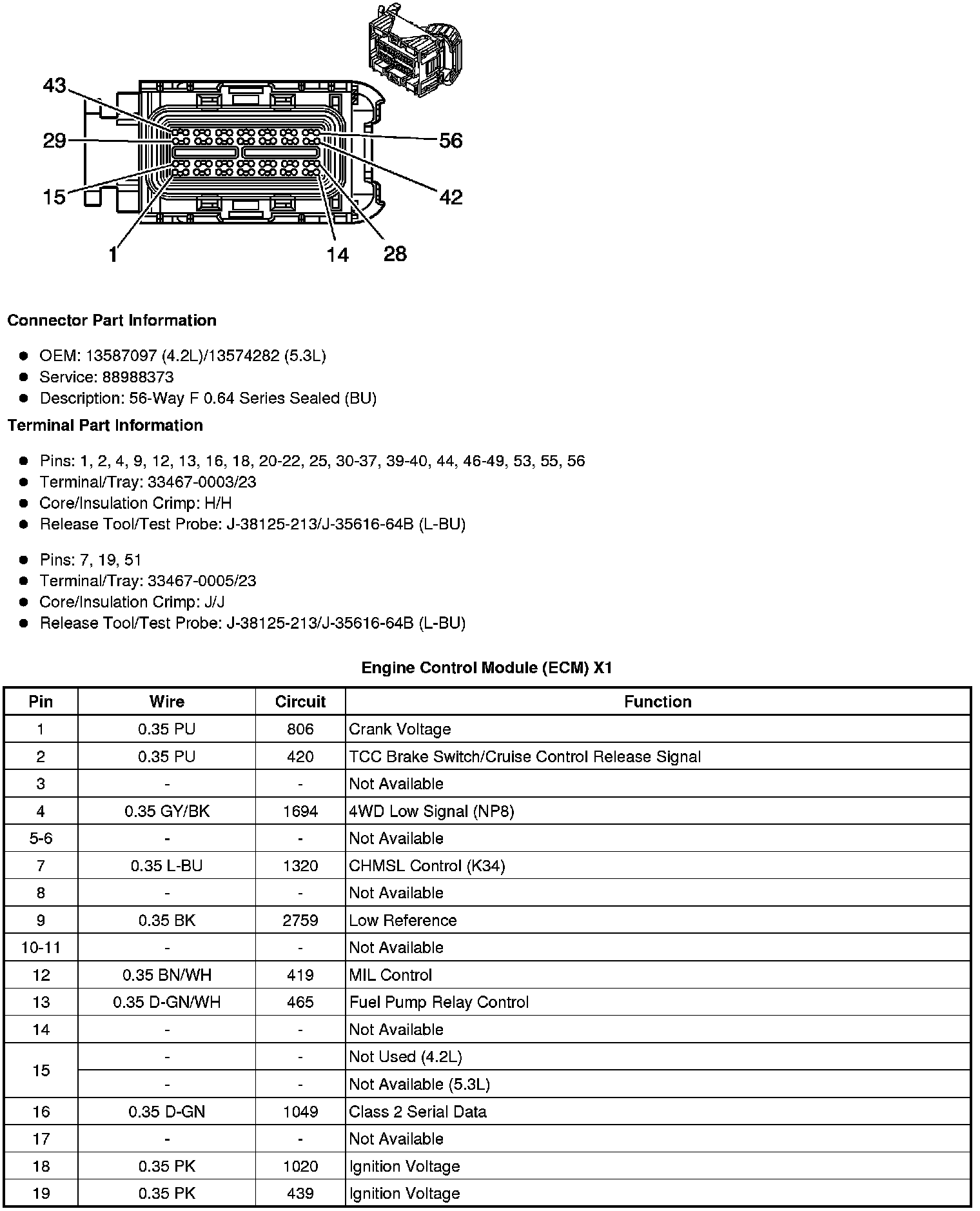

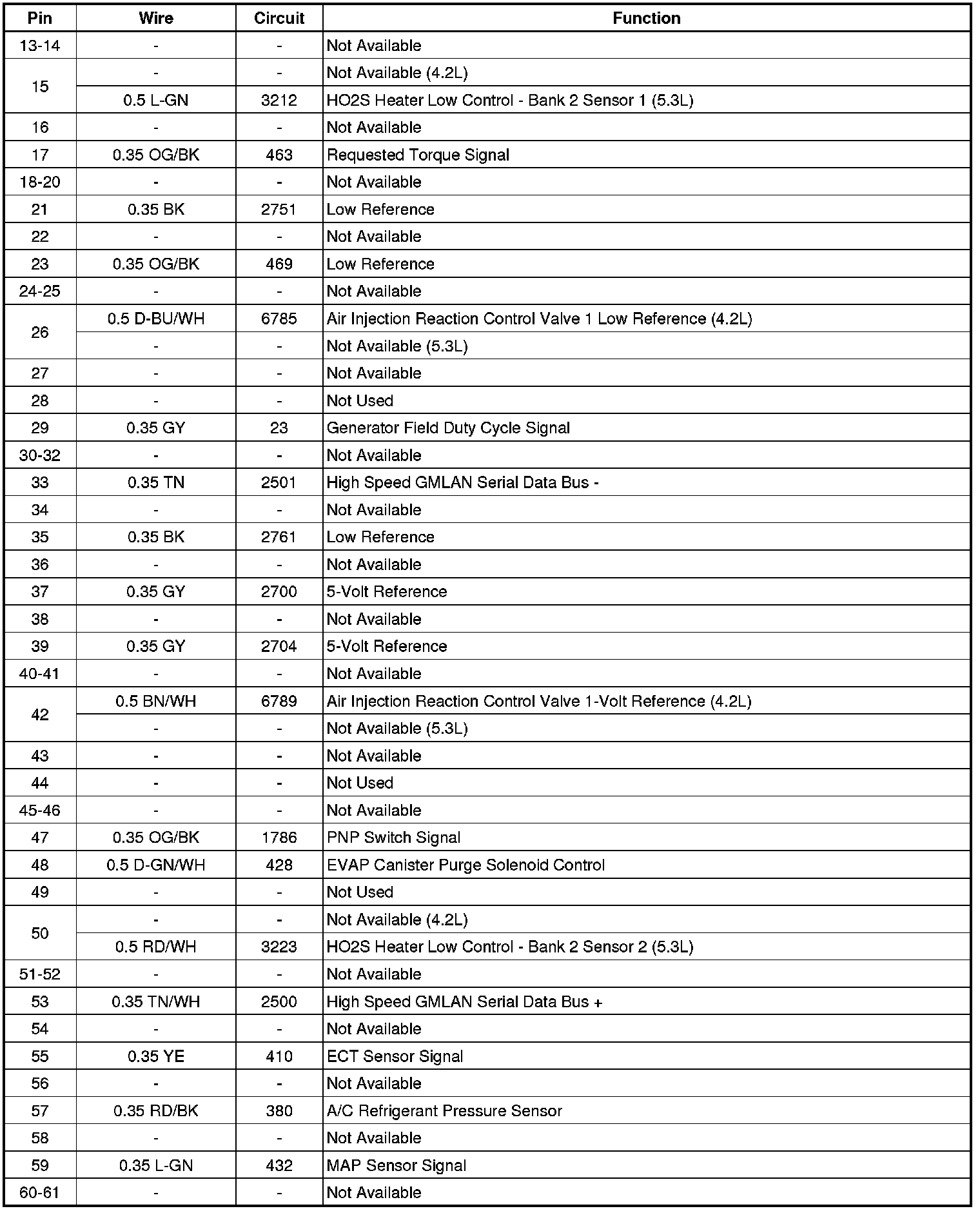

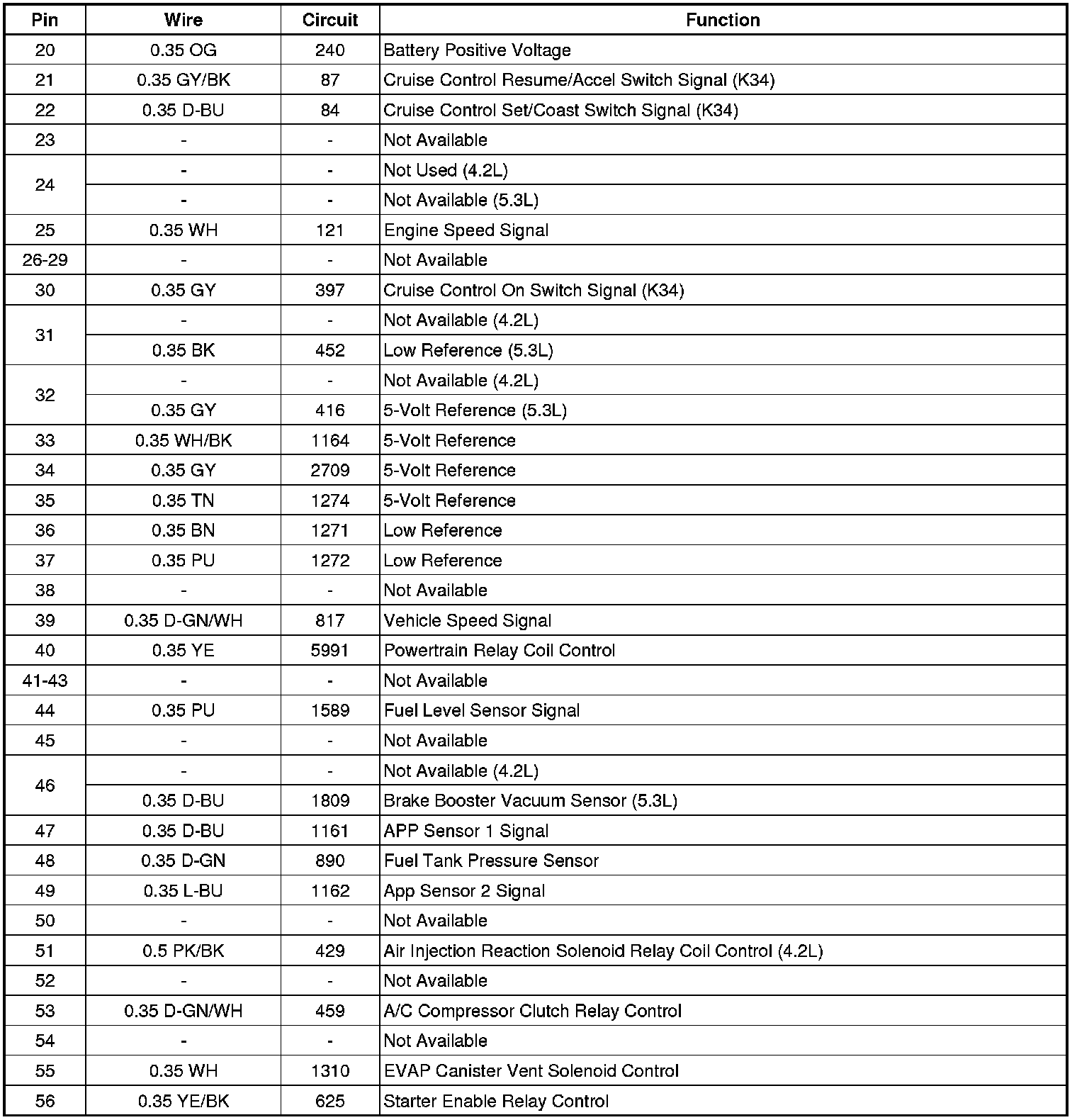

Engine Control Module (ECM) X1

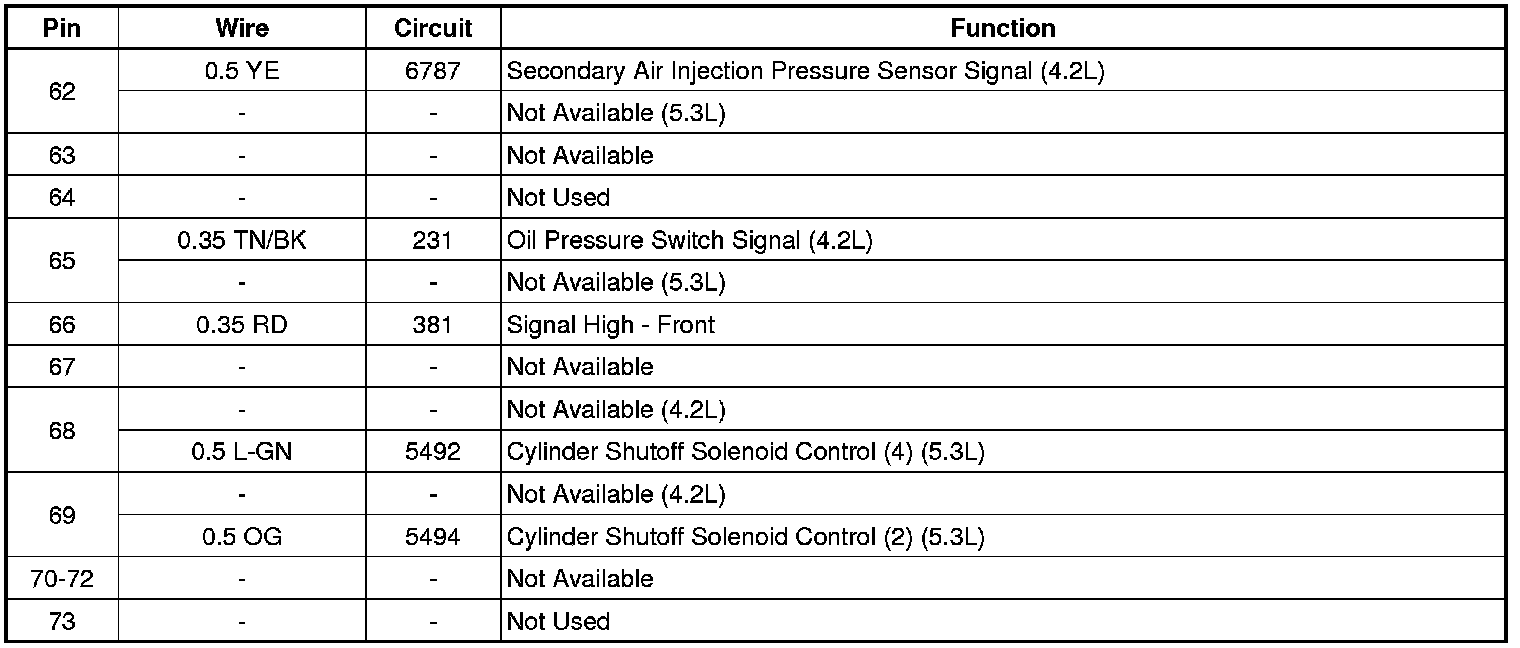

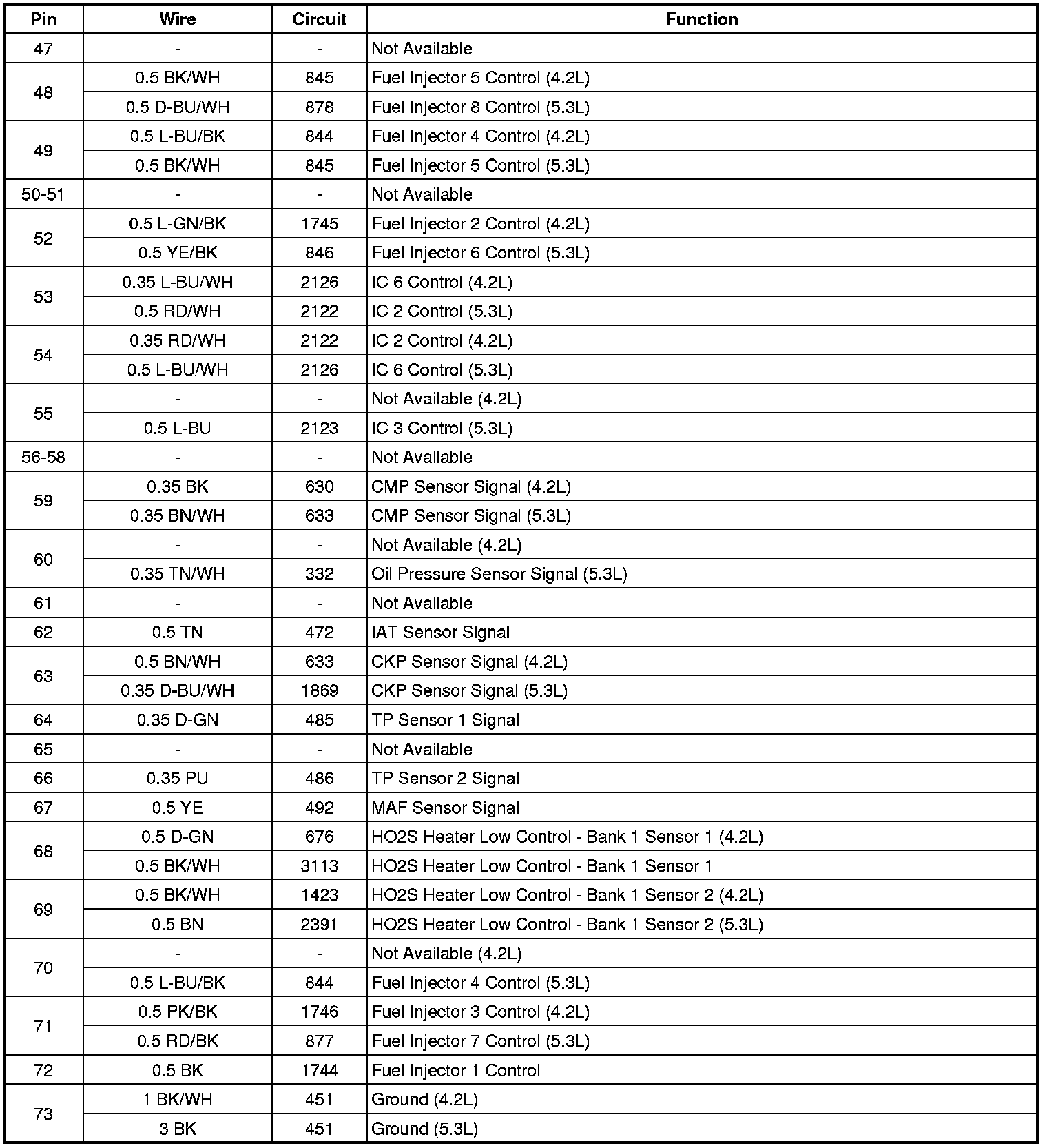

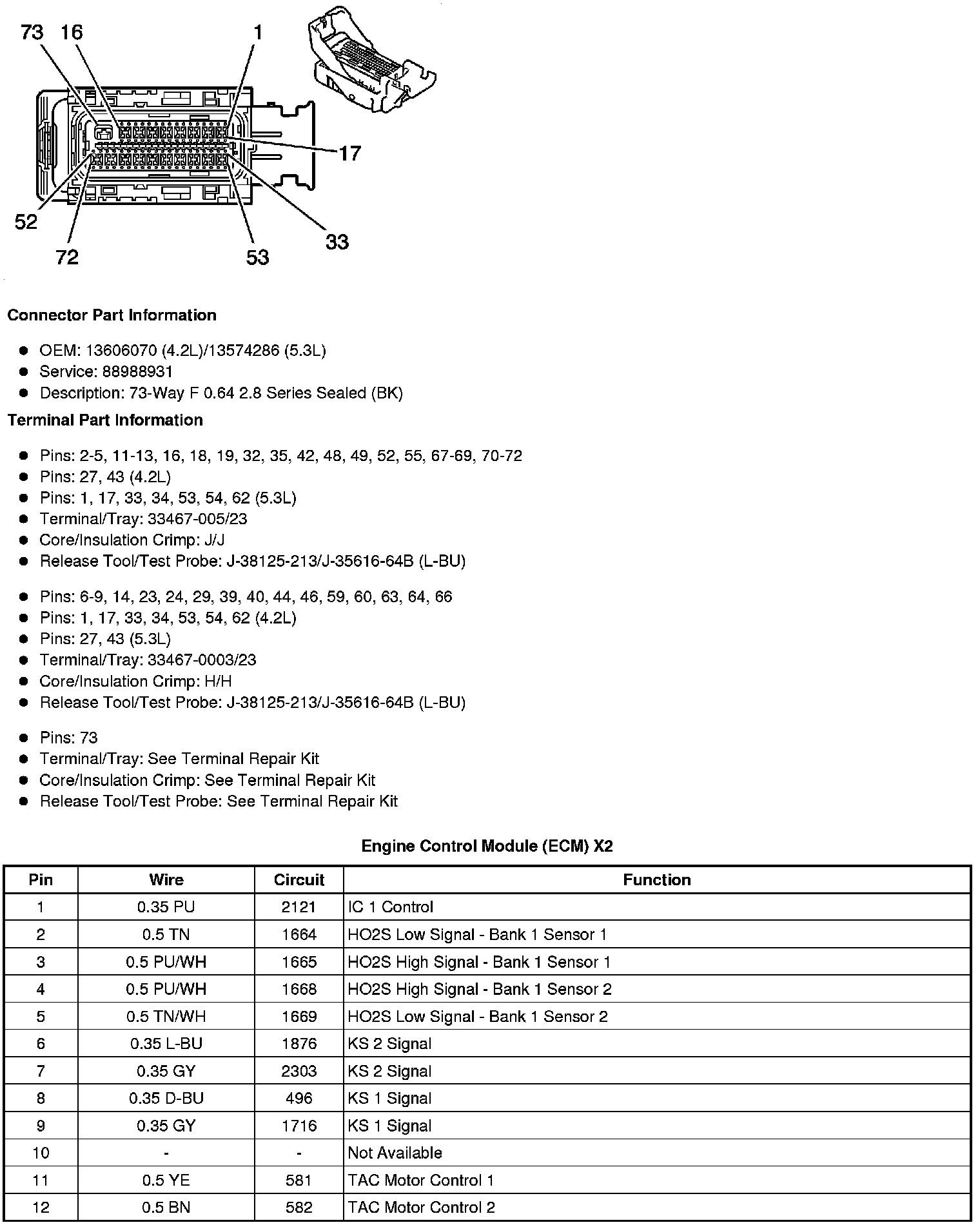

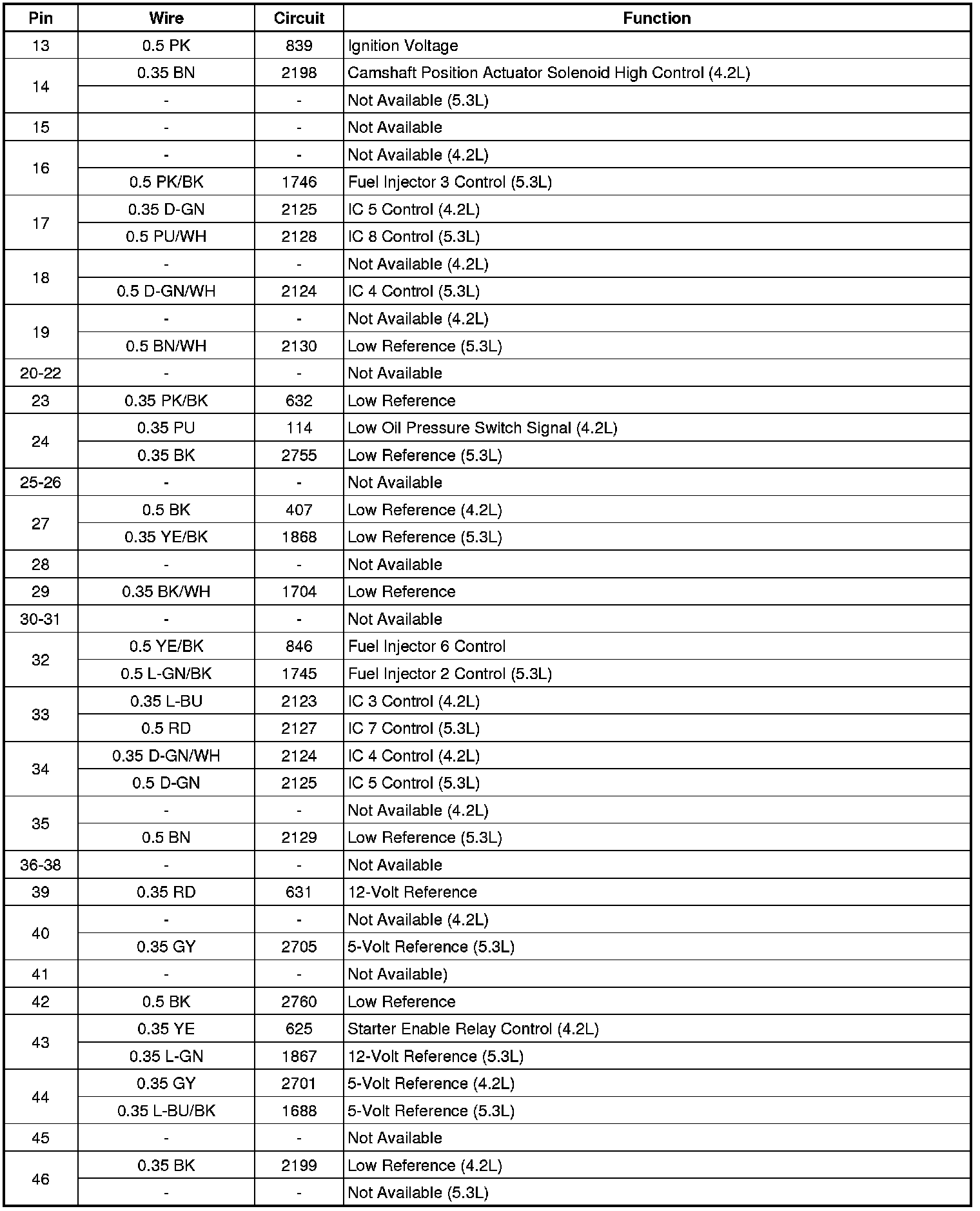

Engine Control Module (ECM) X2

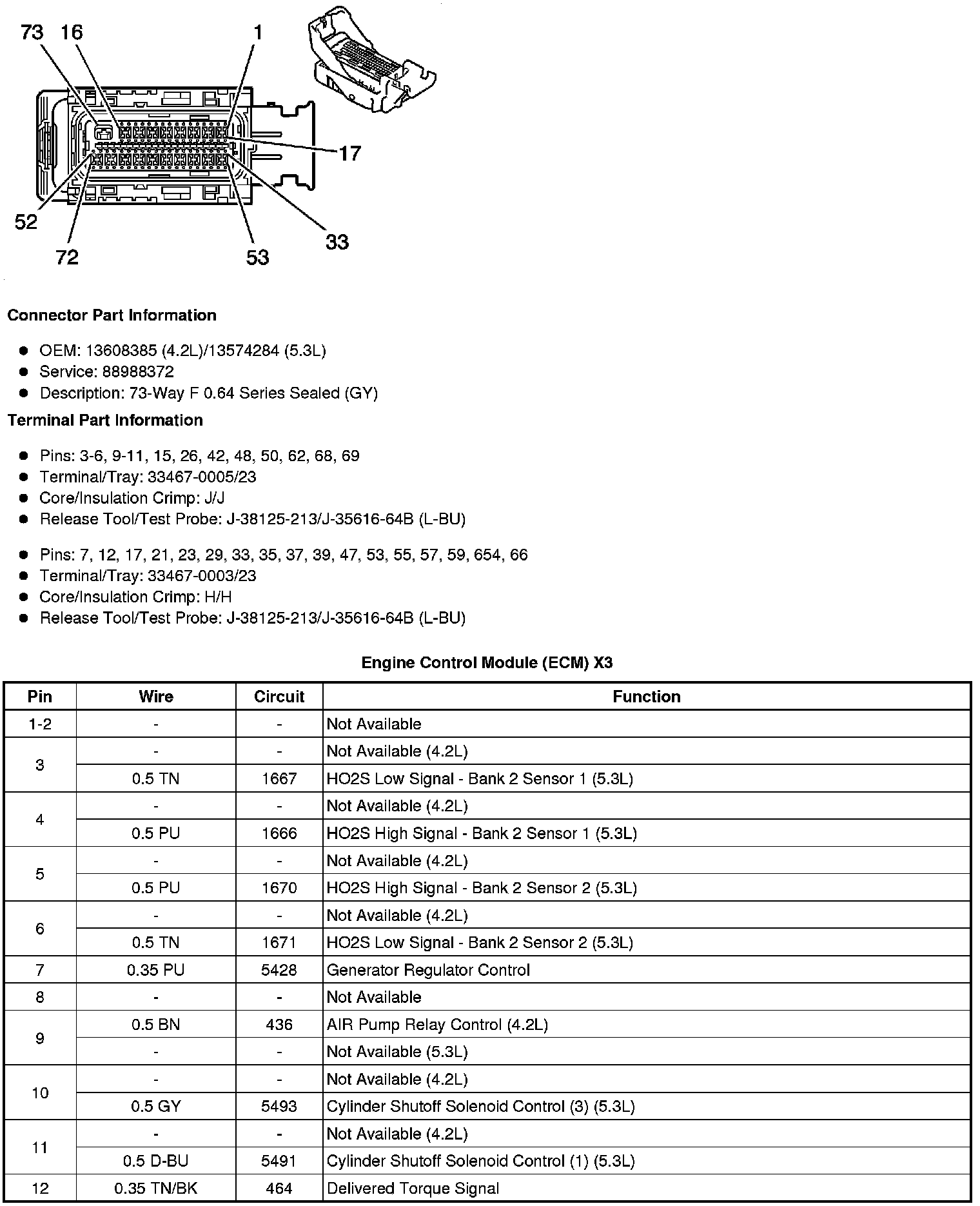

Engine Control Module (ECM) X3
