Fuel Injector



Component Connector End Views

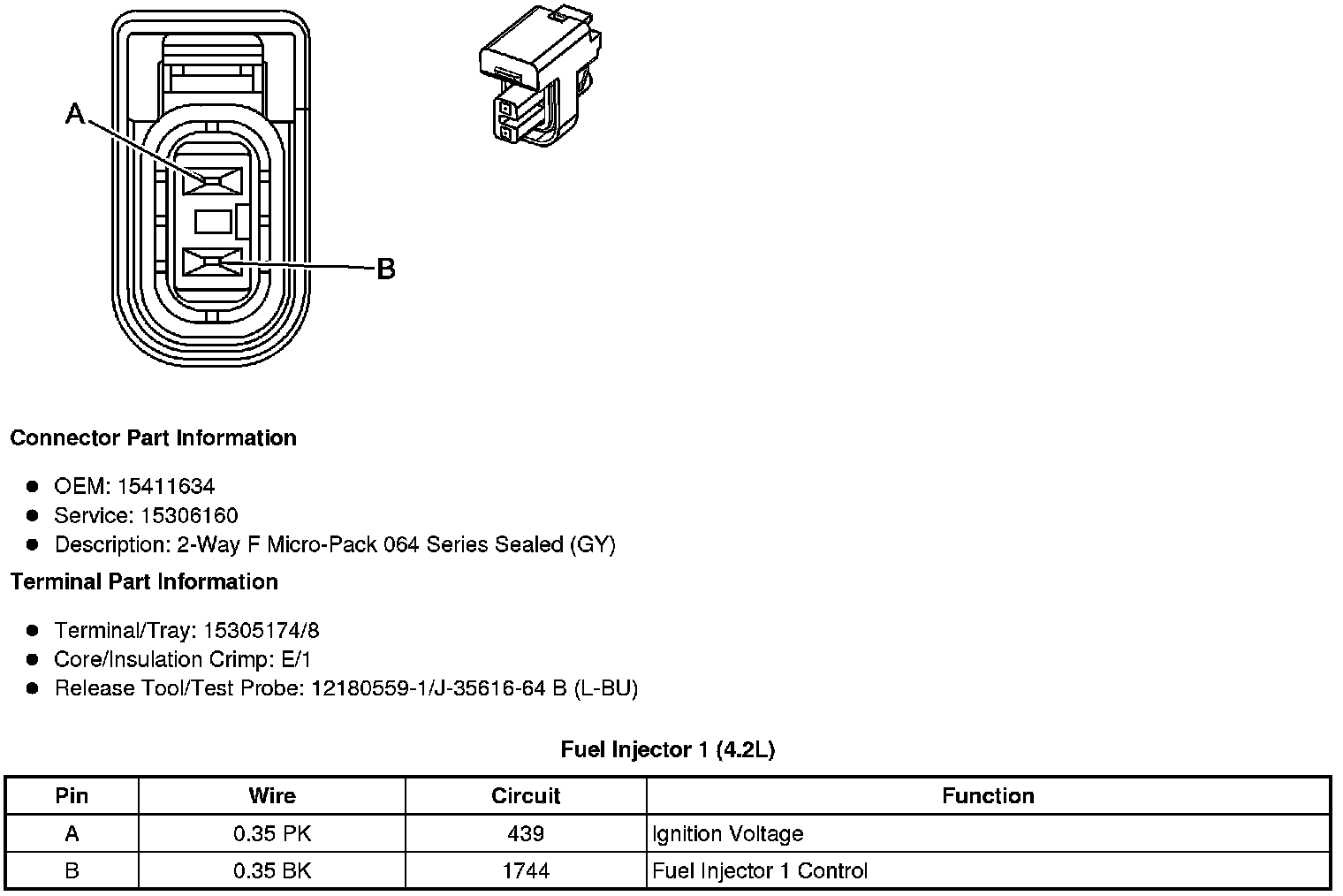

Fuel Injector 1





Fuel Injector 2





Fuel Injector 3

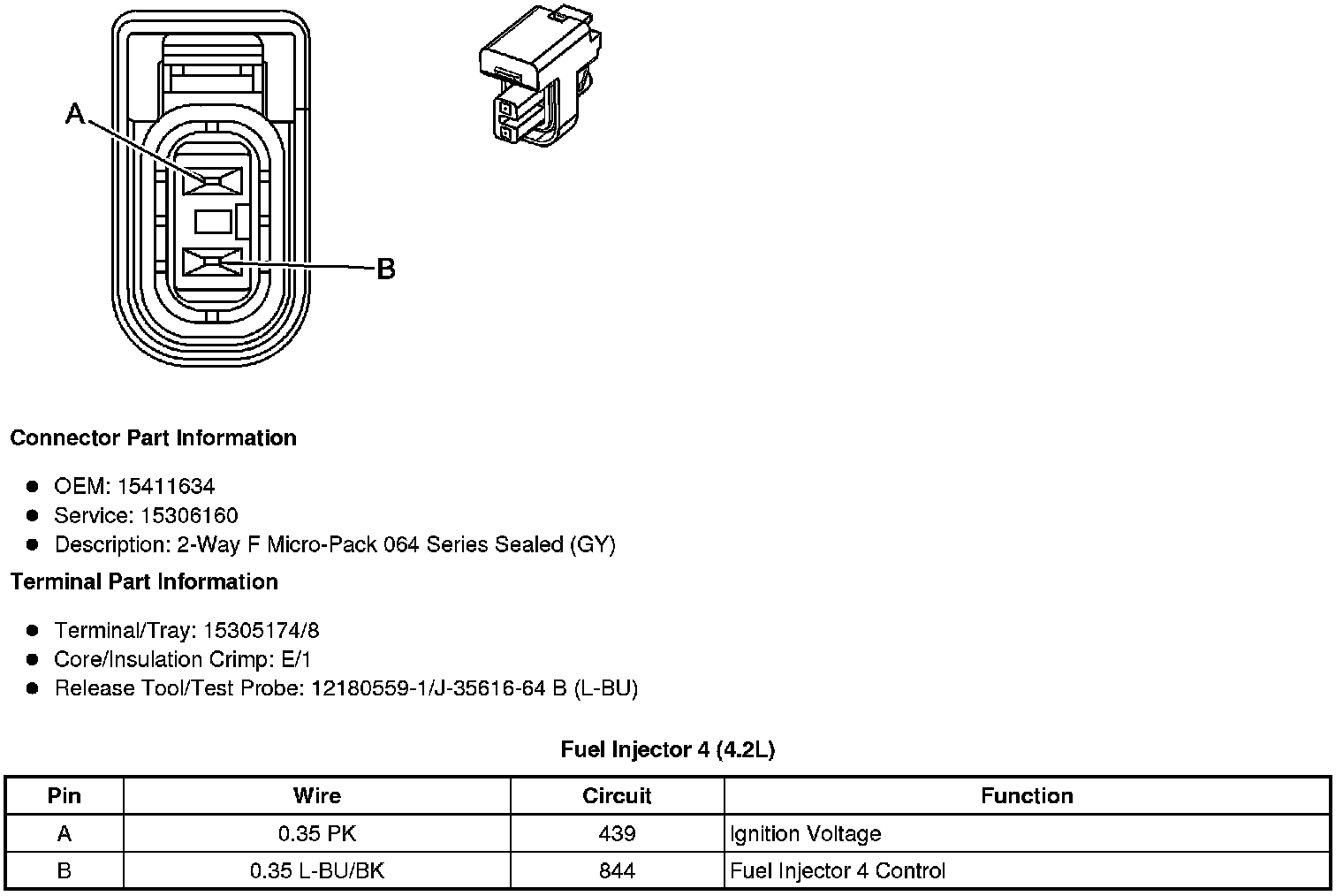

Fuel Injector 4





Fuel Injector 5





Fuel Injector 6
