Rear Fuse Block
Electrical Center Identification Views

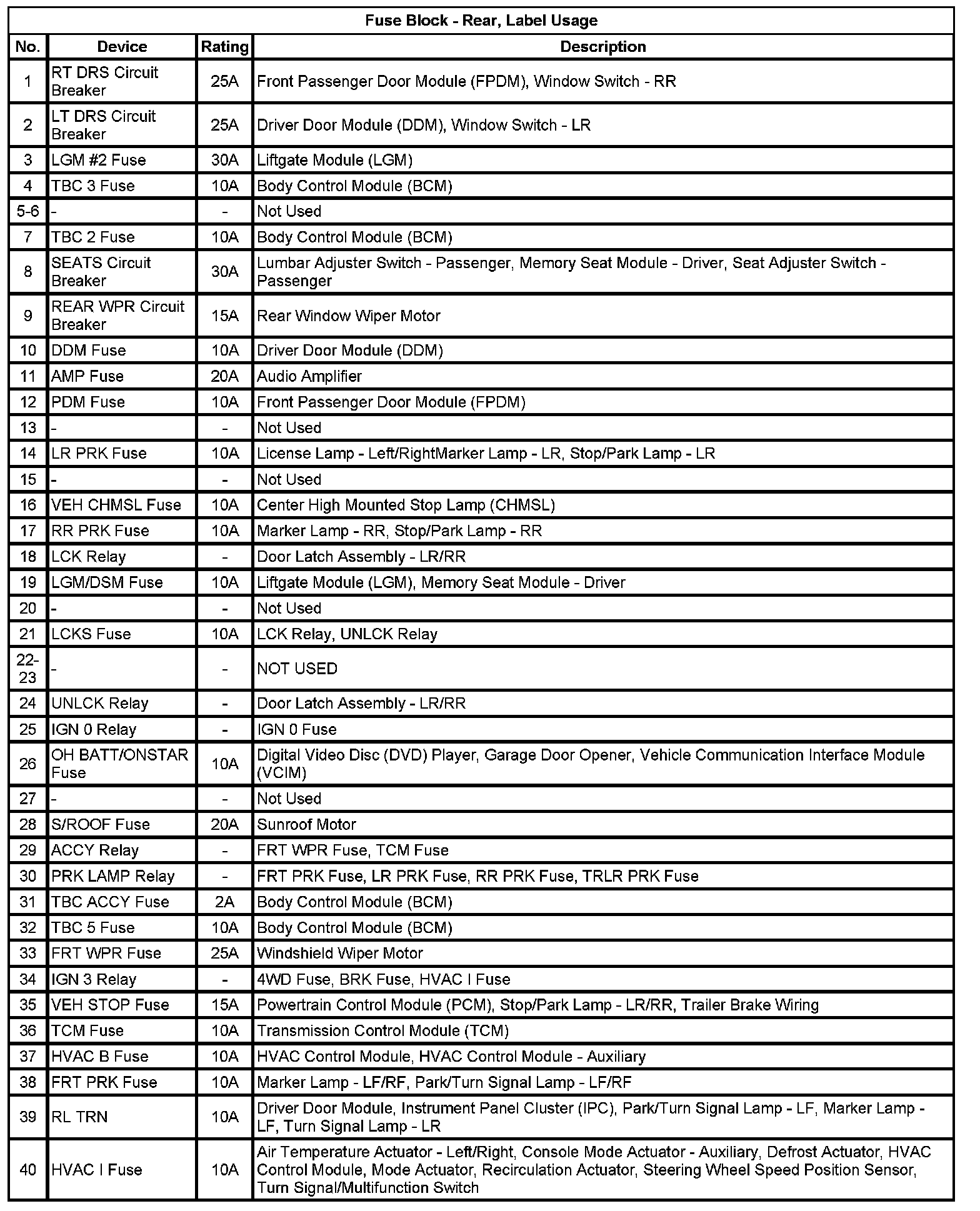

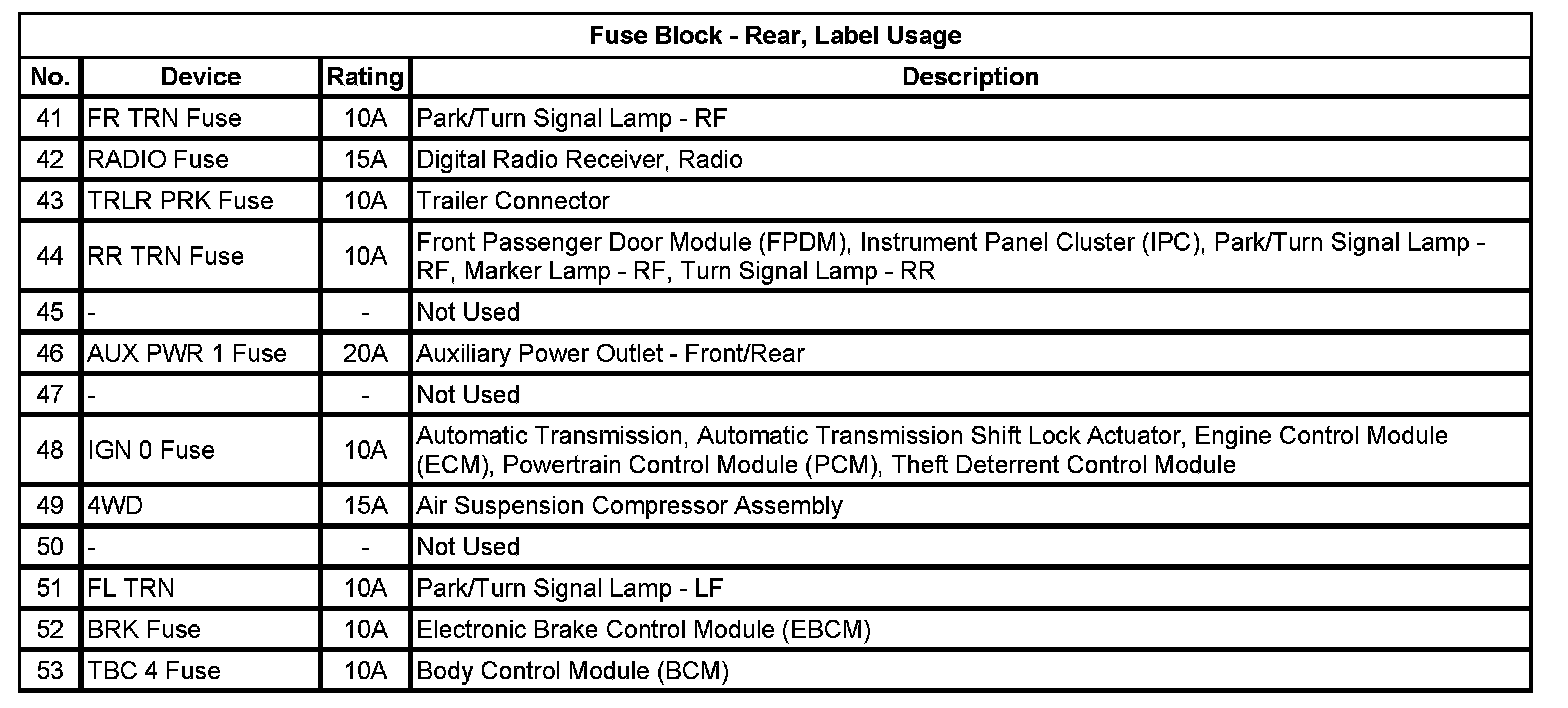

Fuse Block - Rear, Label
Fuse Block - Rear, Top View

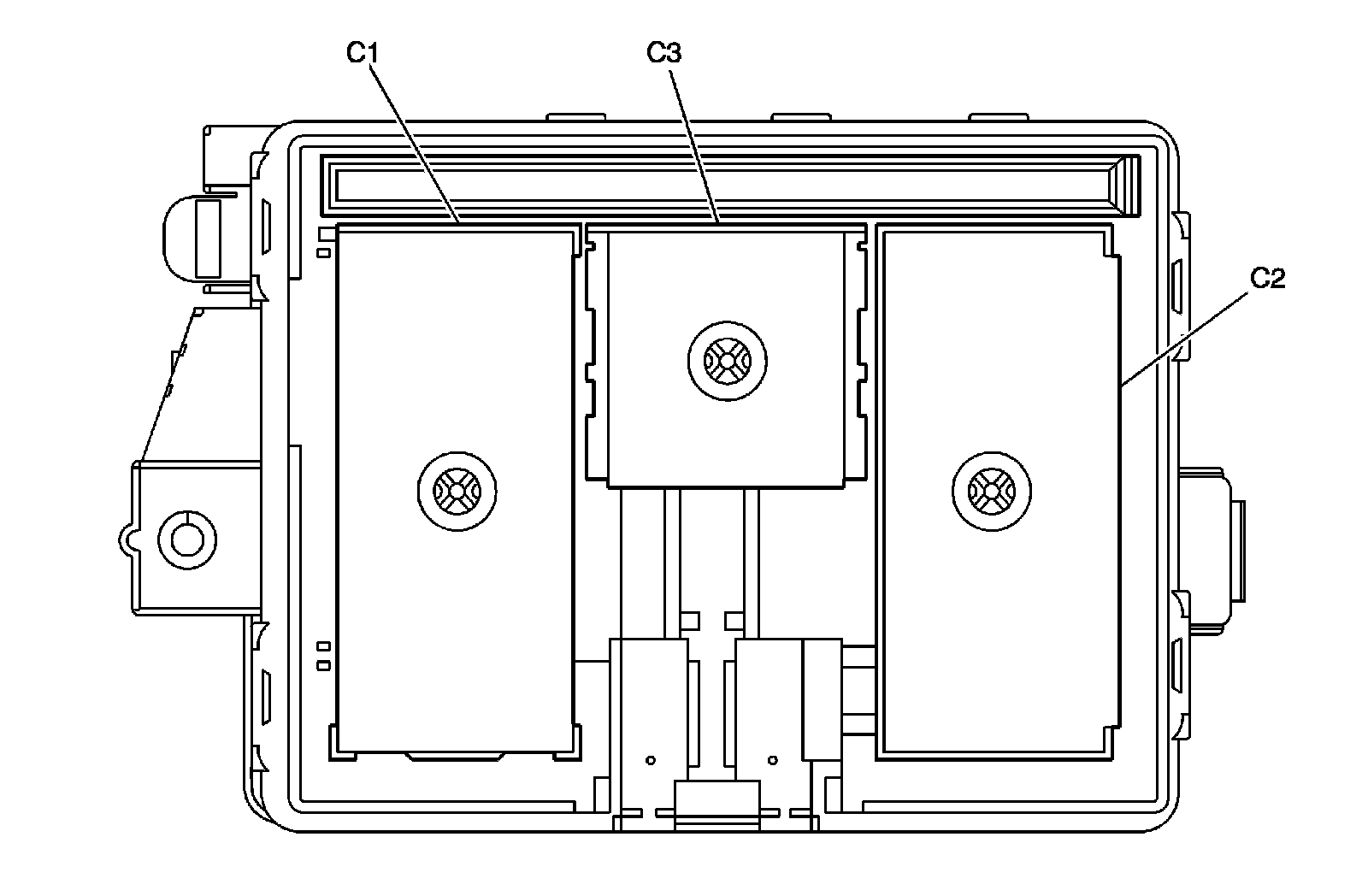

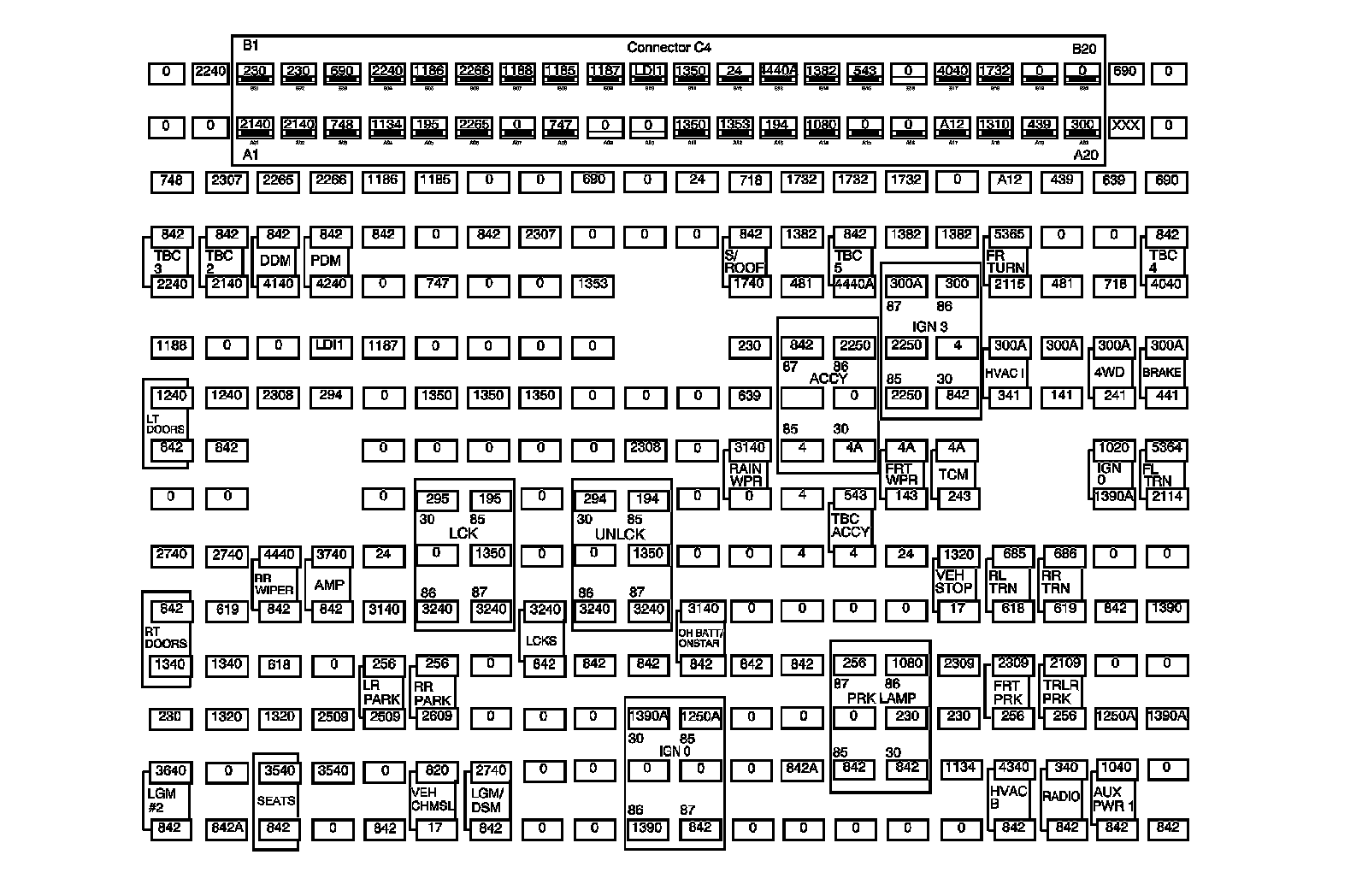

Fuse Block - Rear, Bottom View

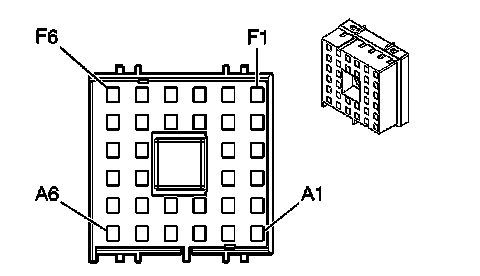

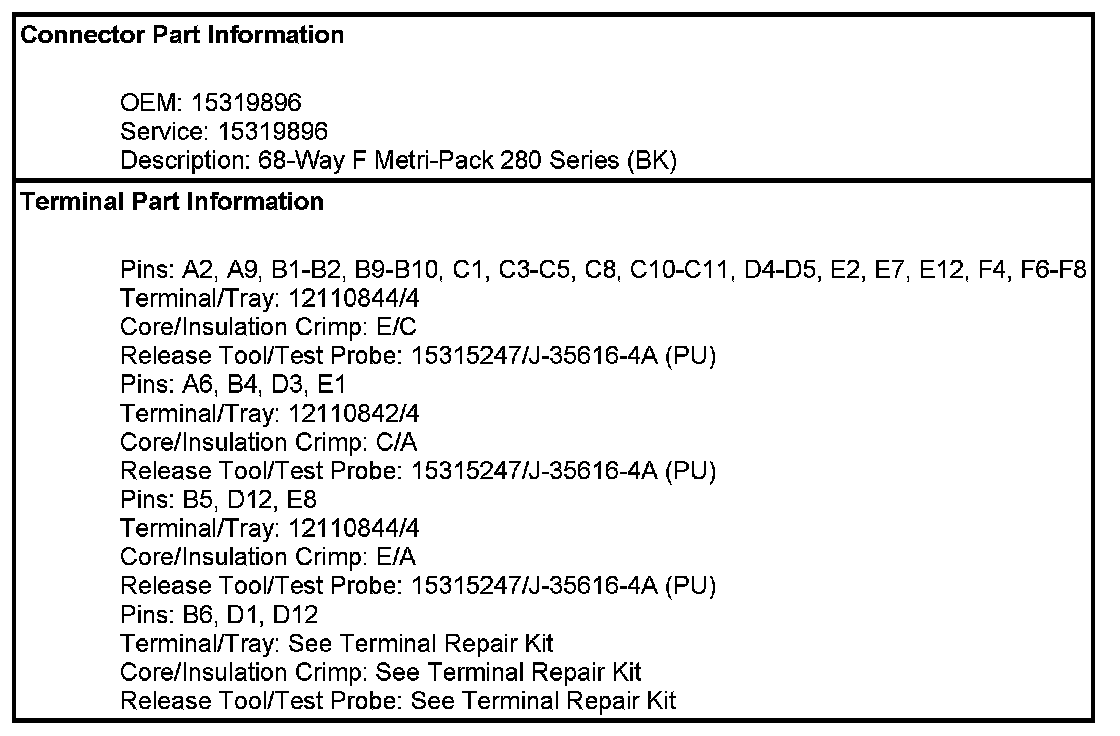

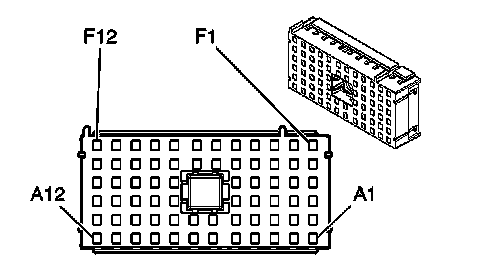

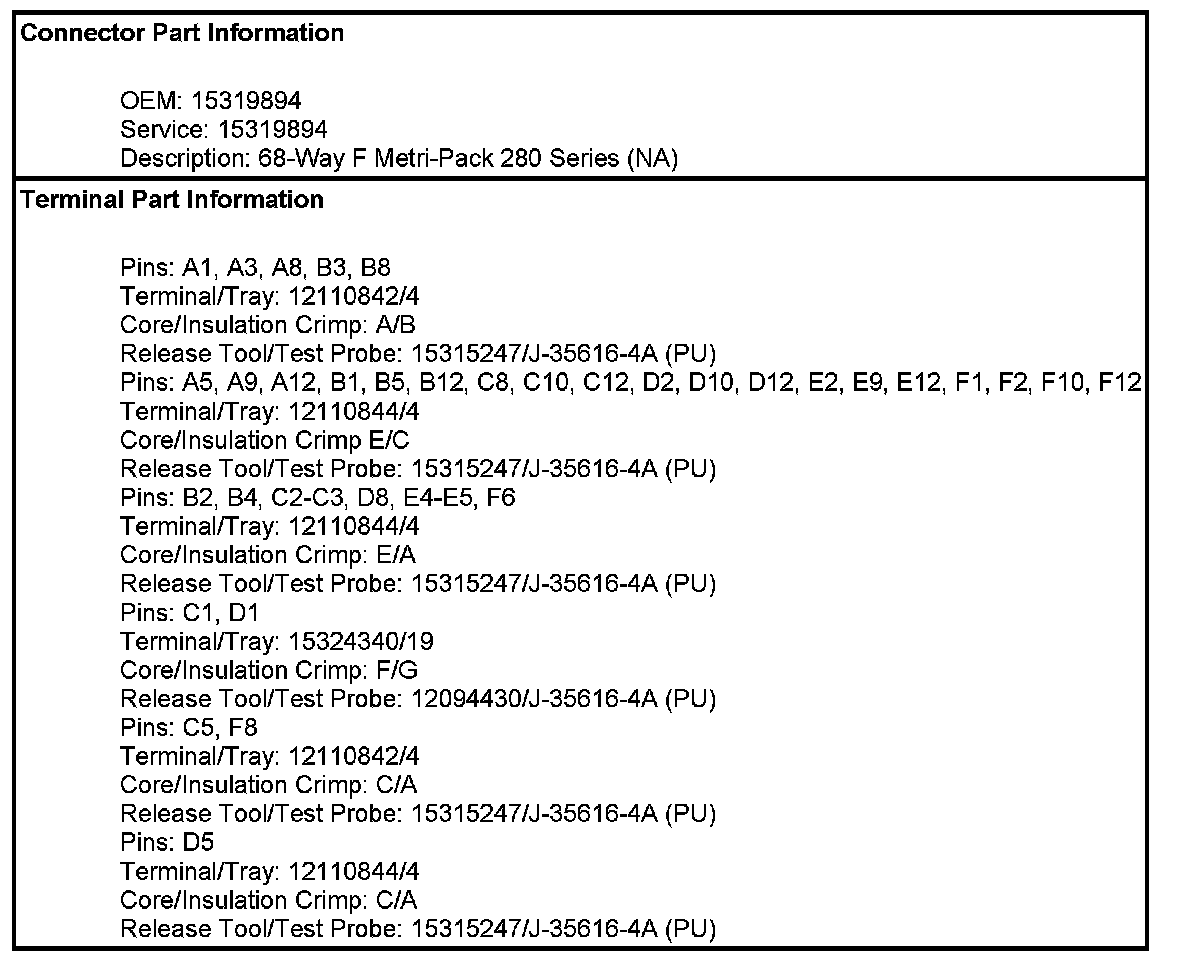

Fuse Block - Rear C1

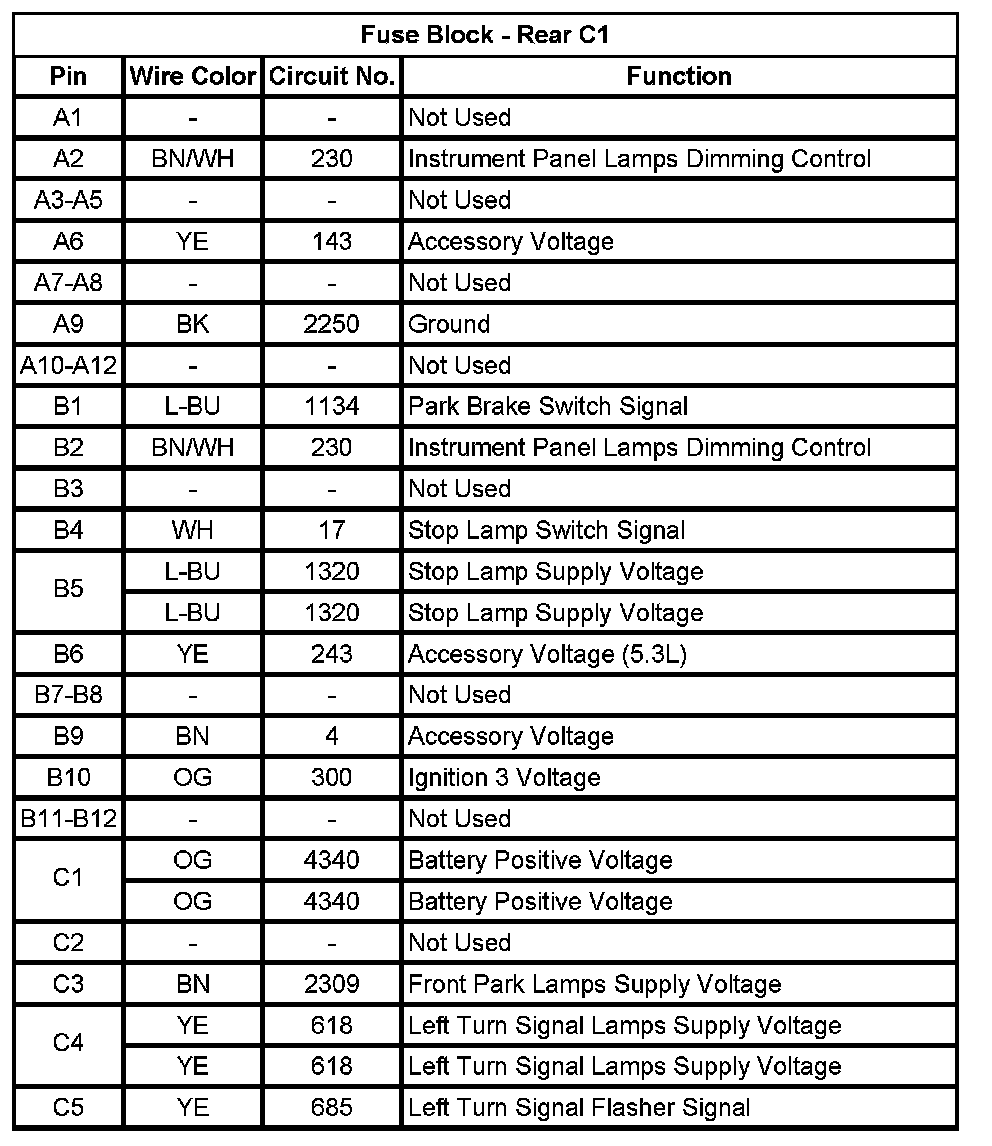

Fuse Block - Rear C1 (Pin A1 To C5):

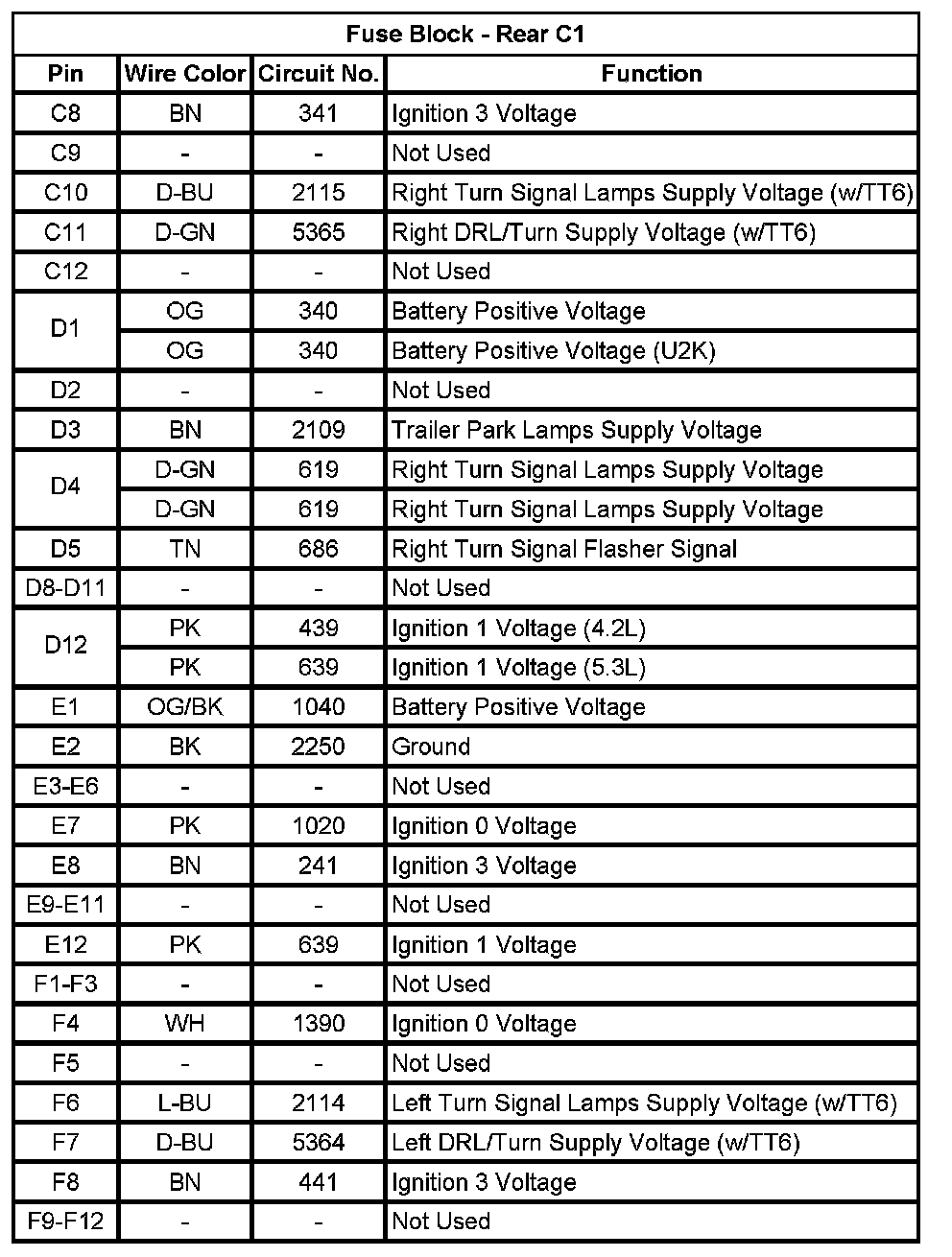

Fuse Block - Rear C1 (Pin C8 To F12):
Fuse Block - Rear C2

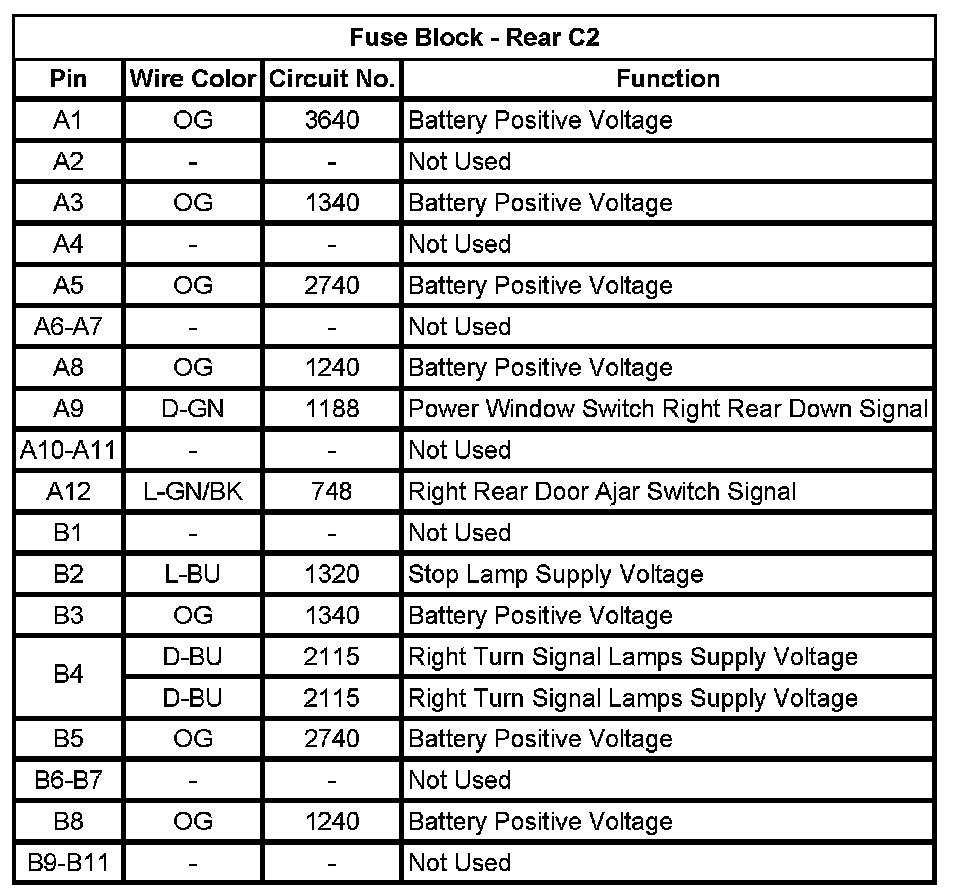

Fuse Block - Rear C2 (Pin A1 To B11):

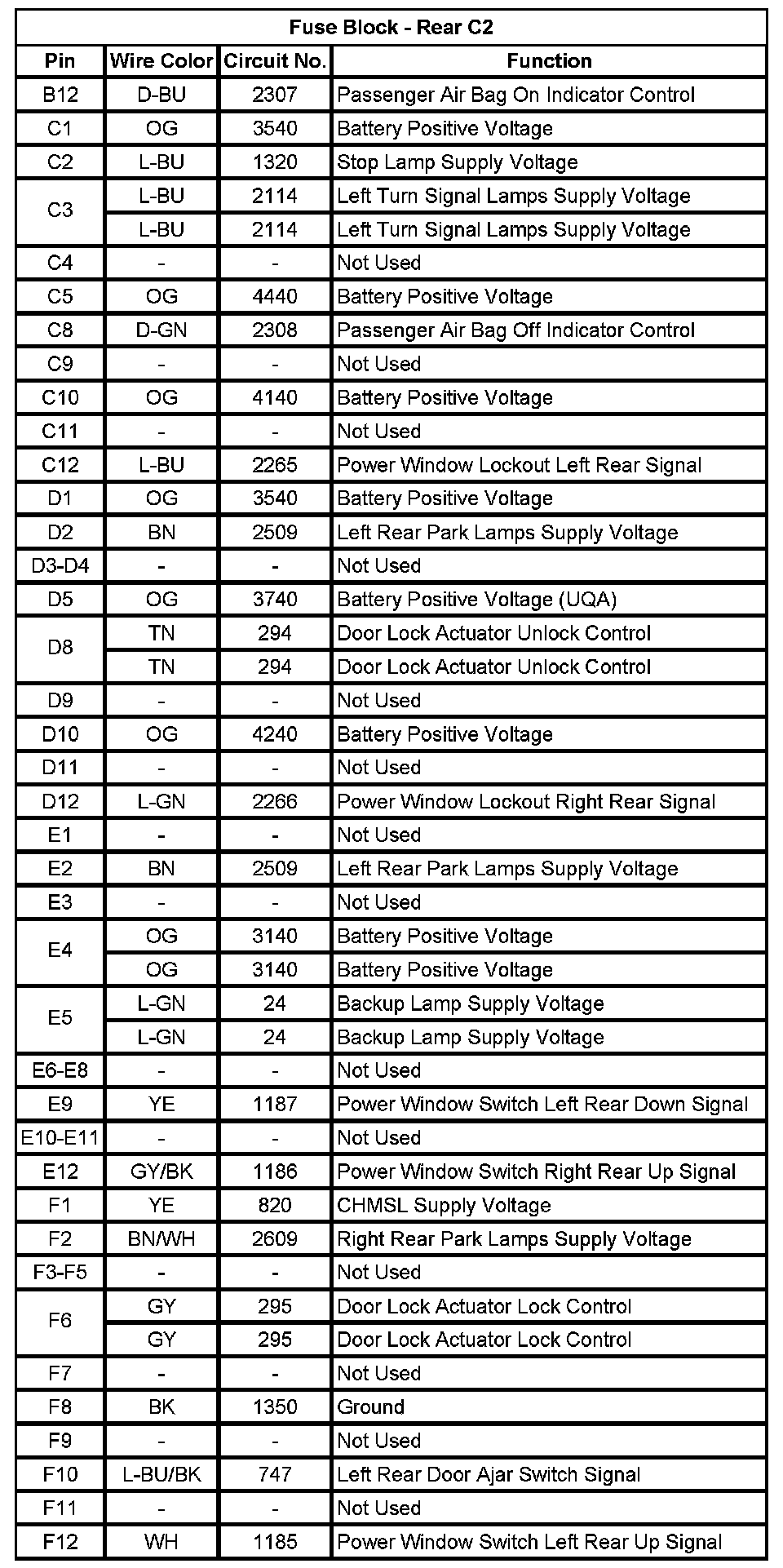

Fuse Block - Rear C2 (Pin B12 To F12):
Fuse Block - Rear C3

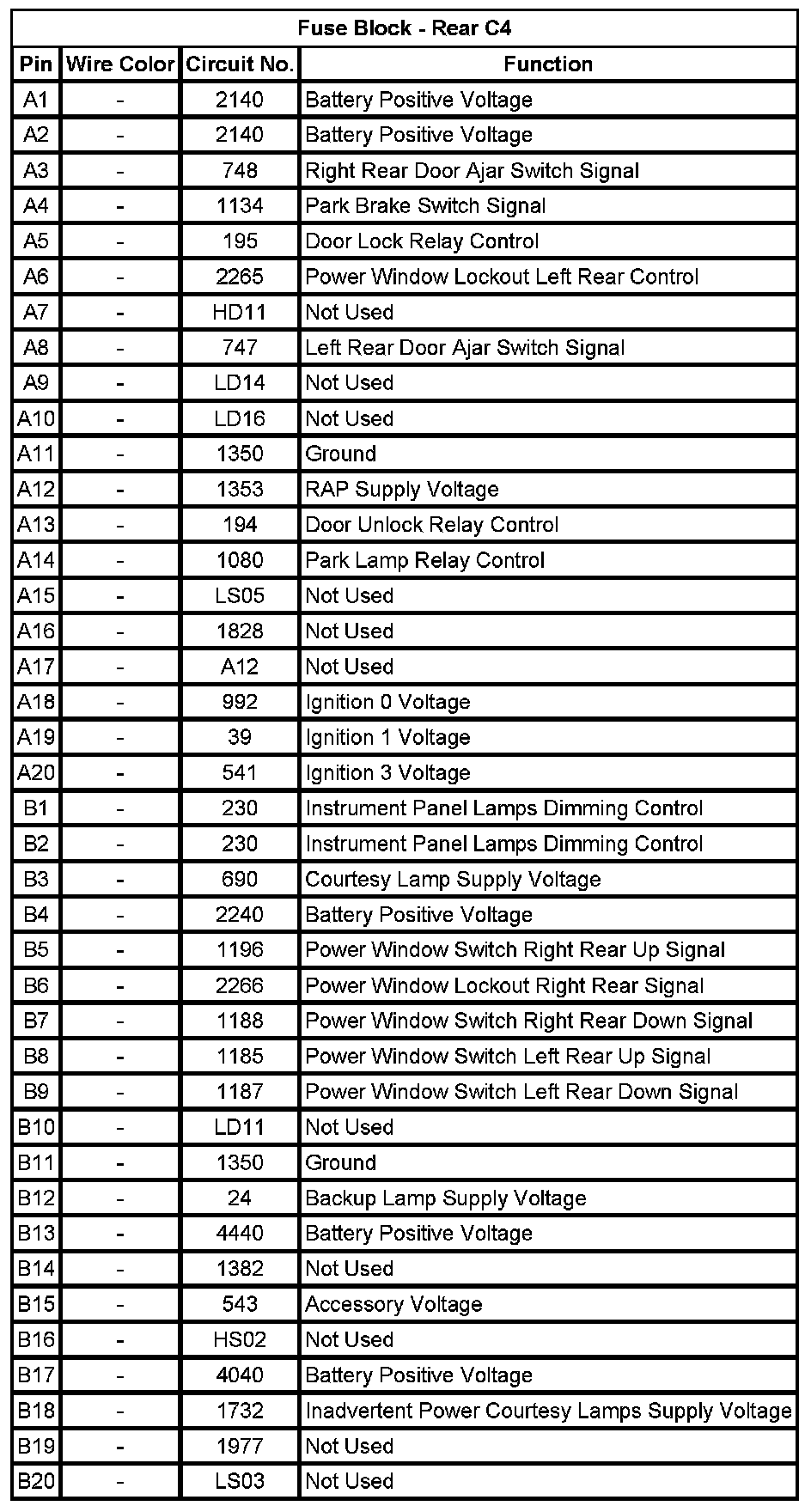

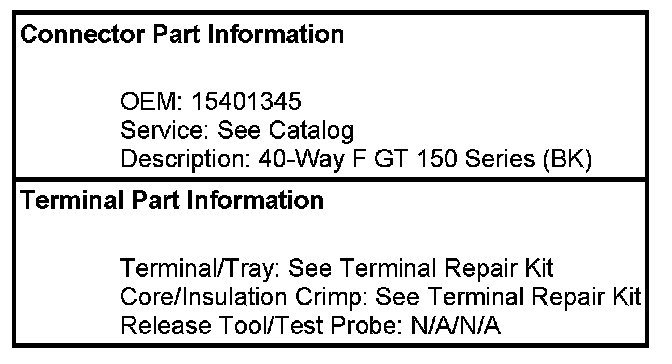

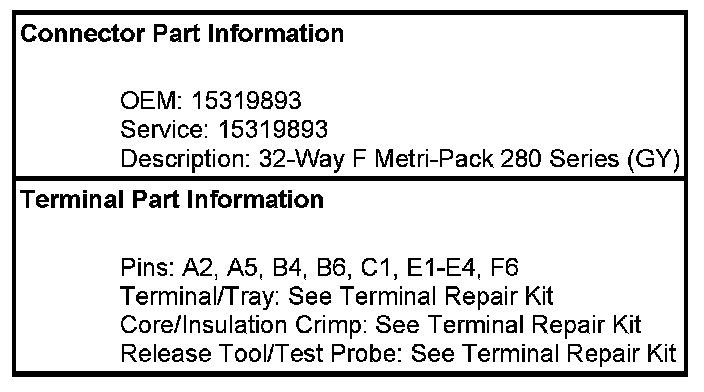

Fuse Block - Rear C4
