Hazard Warning Flasher



Component Connector End Views

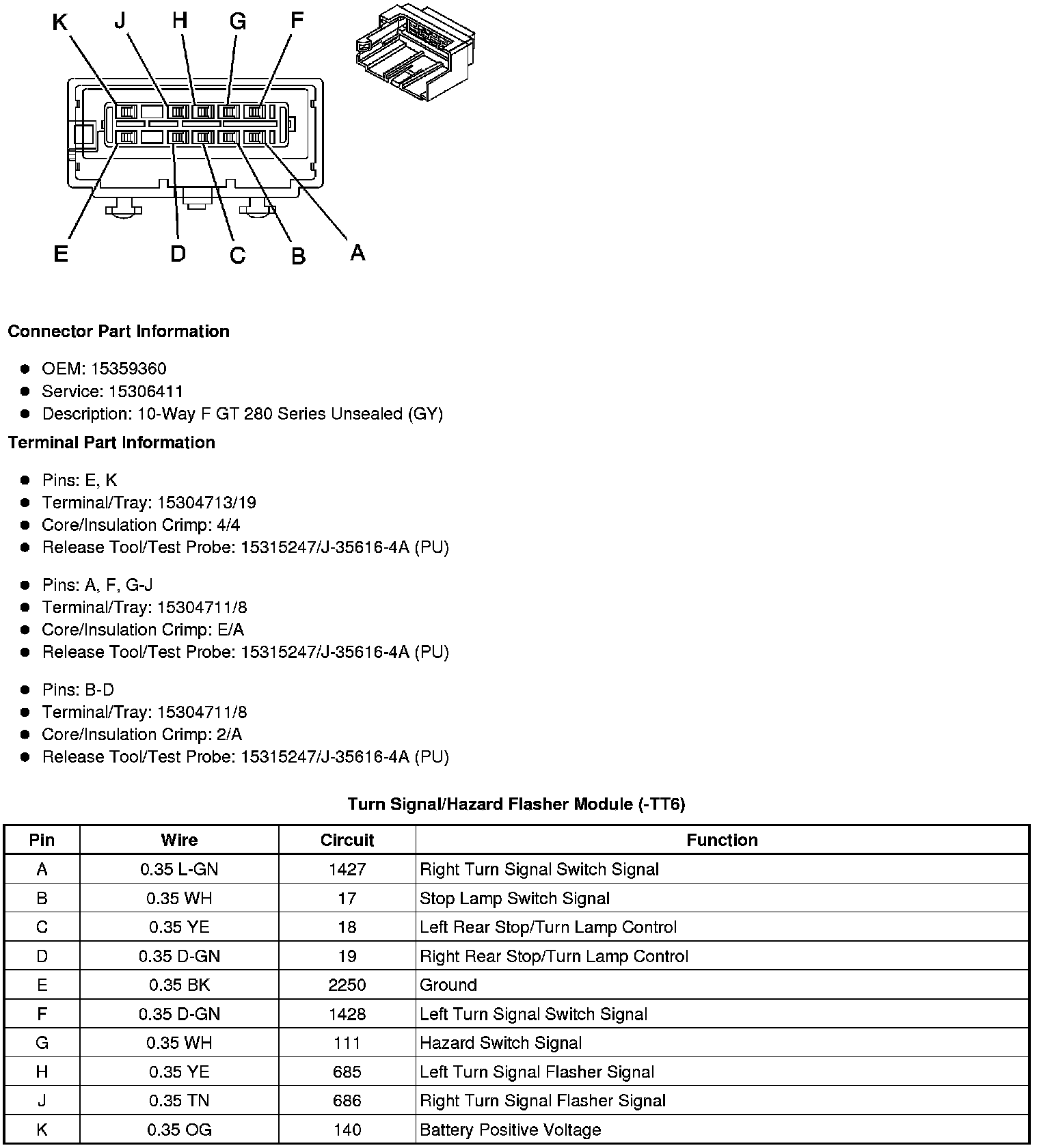

Turn Signal/Hazard Flasher Module (-TT6)

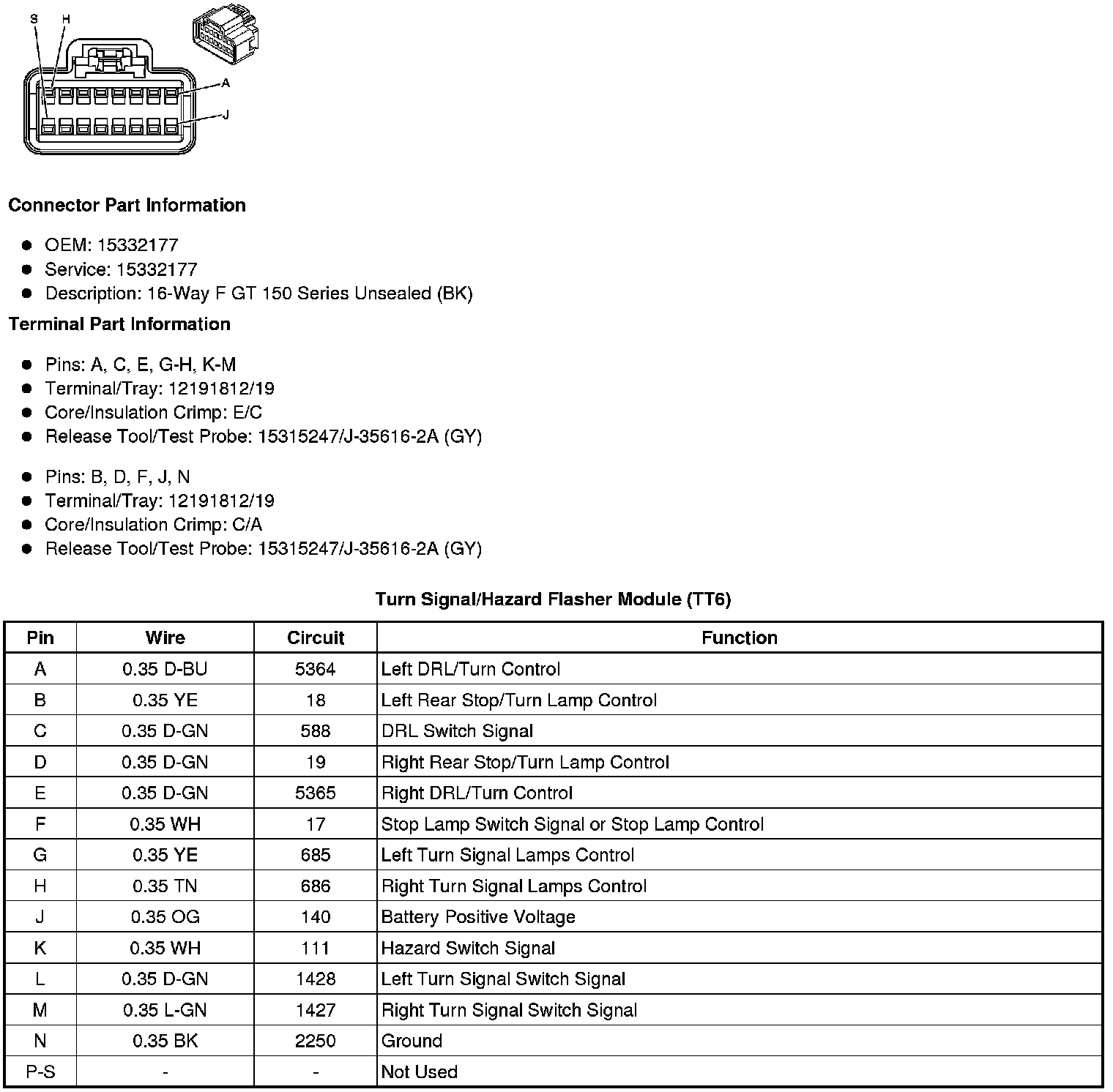

Turn Signal/Hazard Flasher Module (TT6)
