Memory Positioning Module



Component Connector End Views

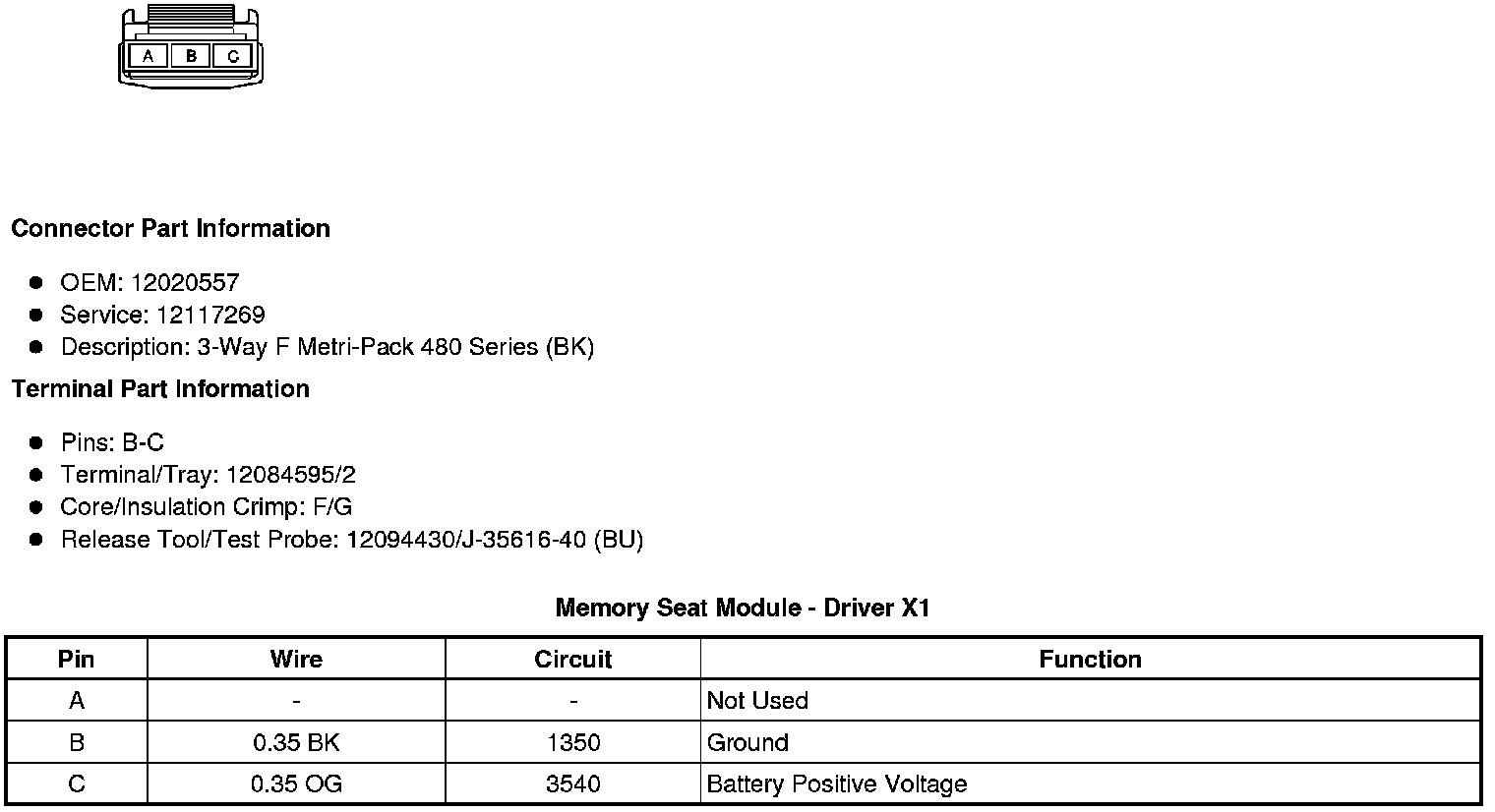

Memory Seat Module - Driver X1

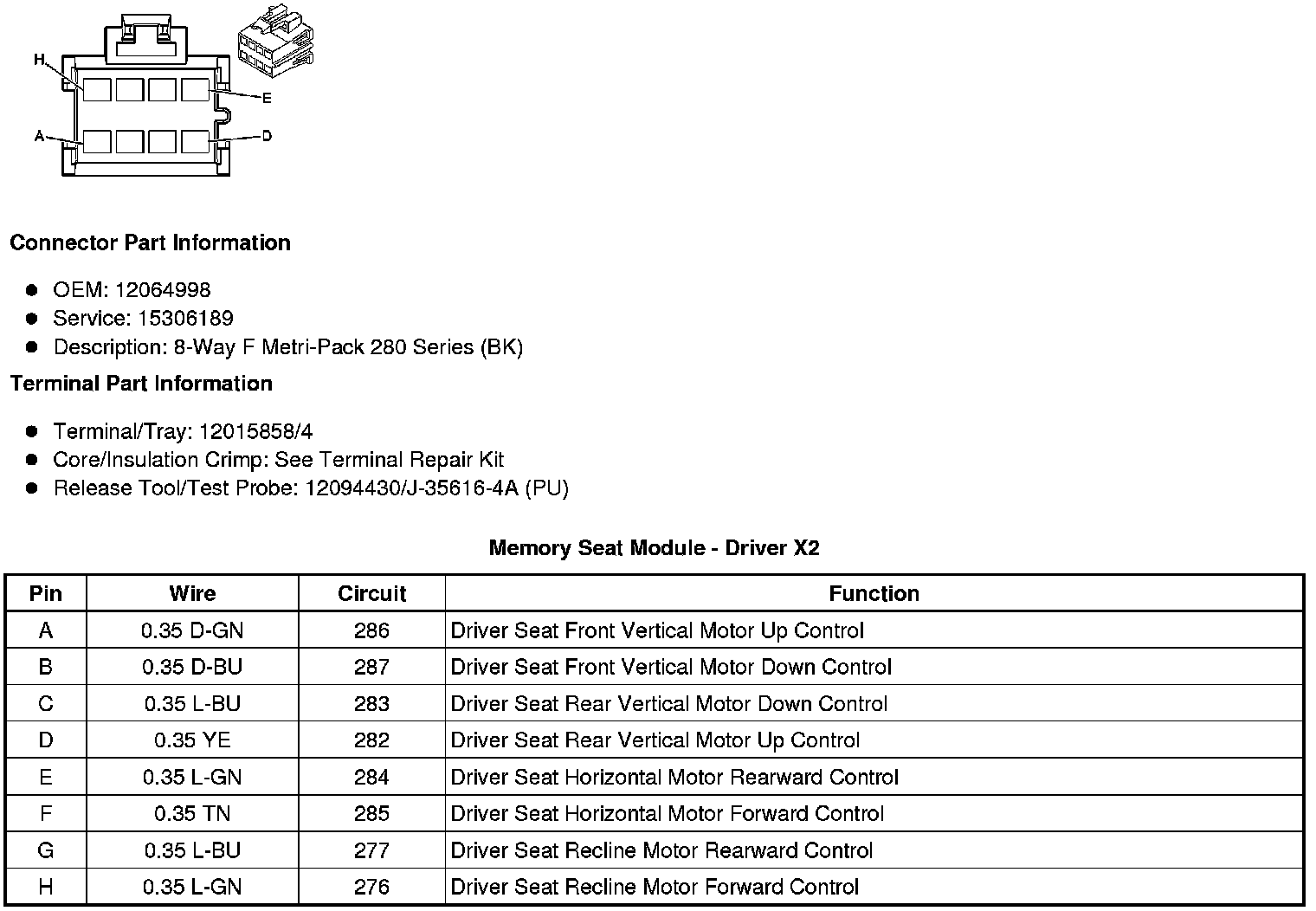

Memory Seat Module - Driver X2

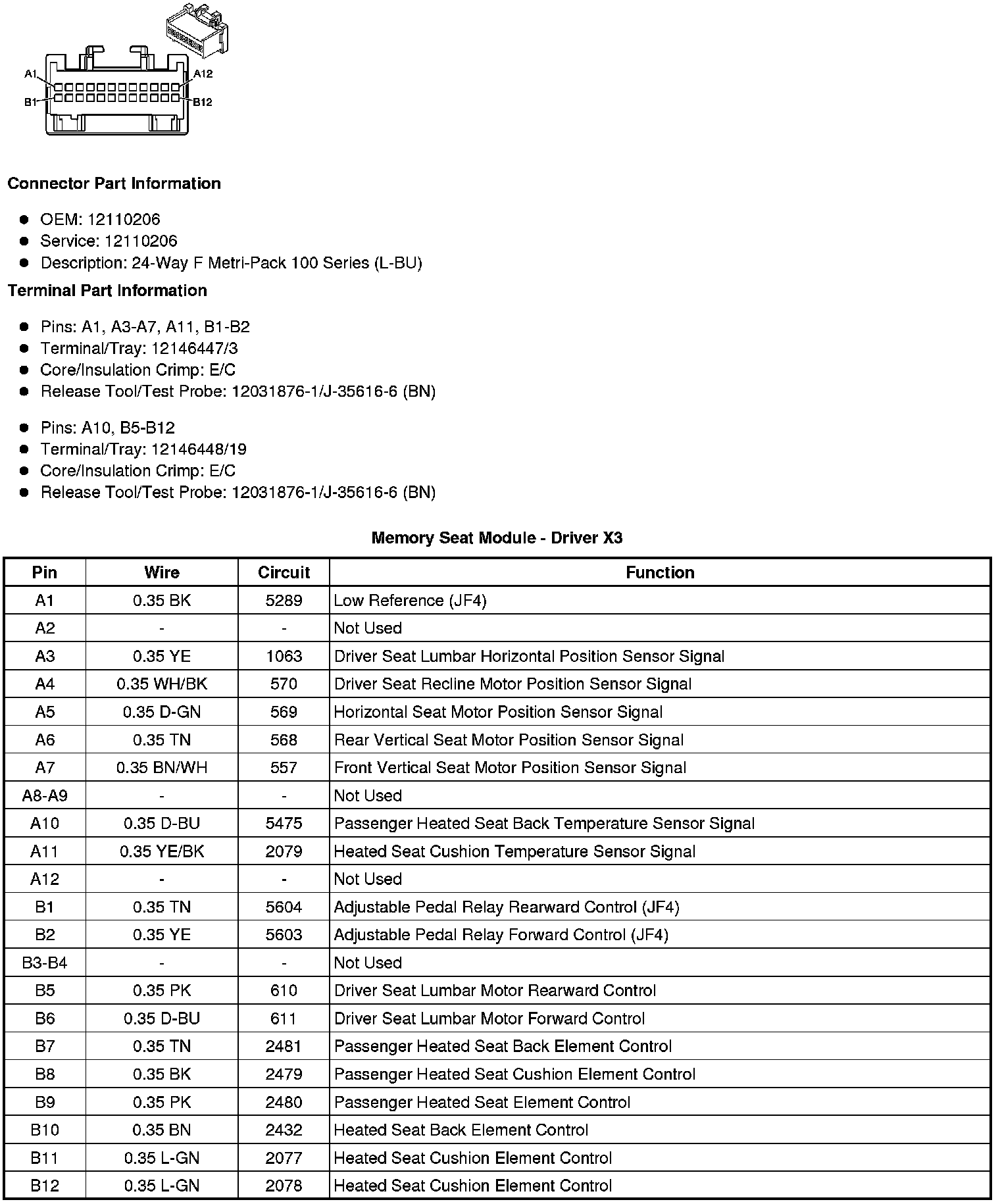

Memory Seat Module - Driver X3





Memory Seat Module - Driver X4
