Speed Sensor, Transfer Case

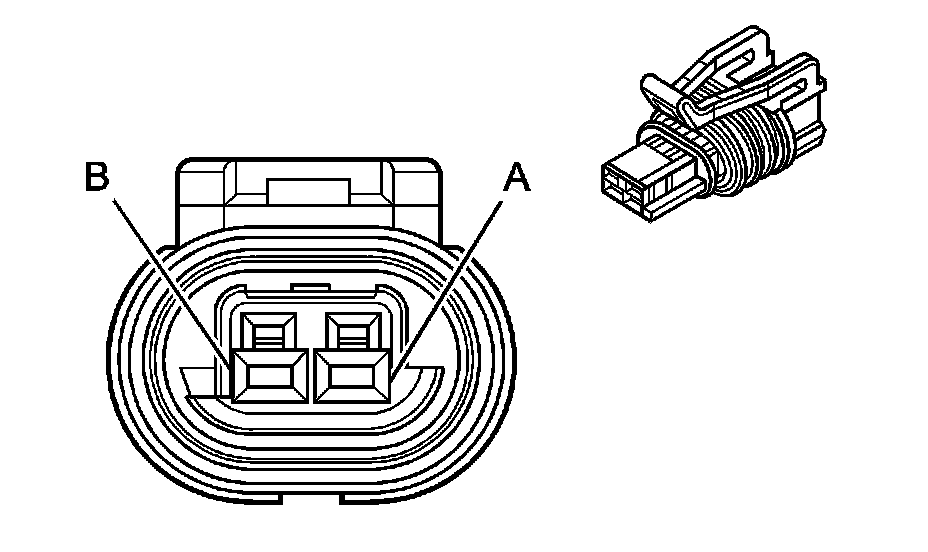

Transfer Case Control Connector End Views

Propshaft Speed Sensor - Front

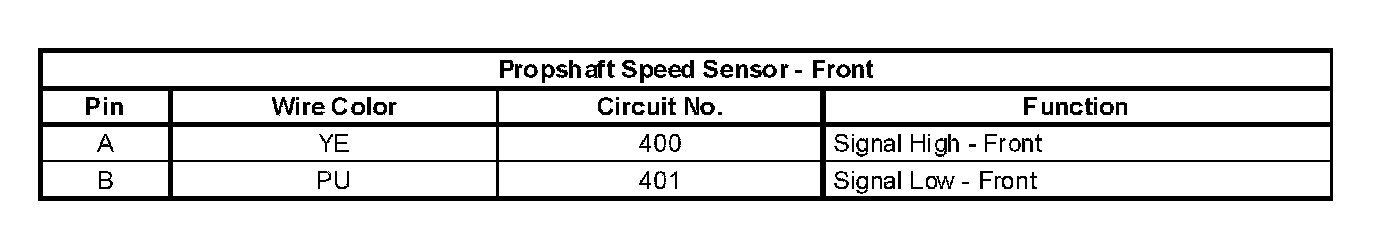

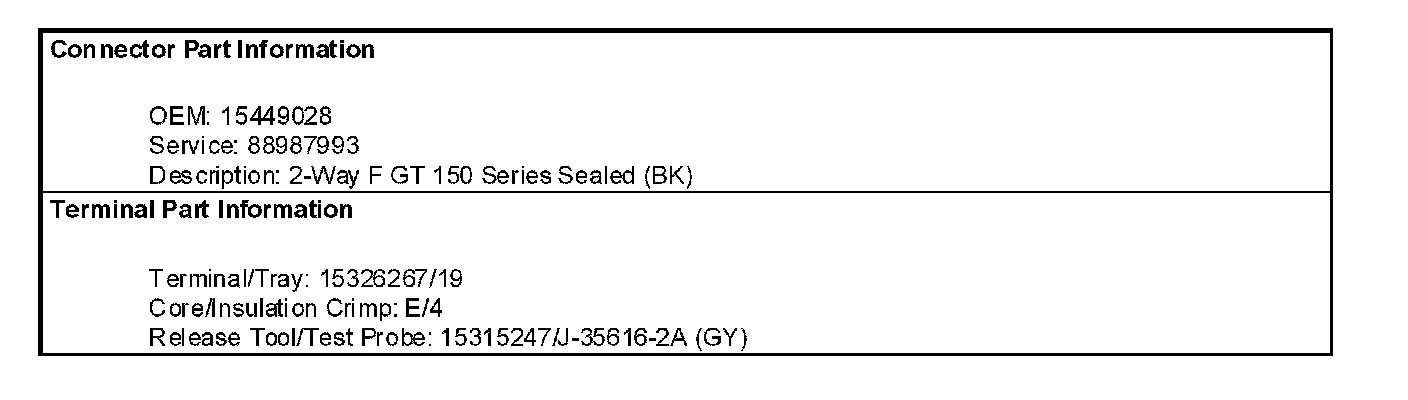

Propshaft Speed Sensor - Front:





Propshaft Speed Sensor - Rear

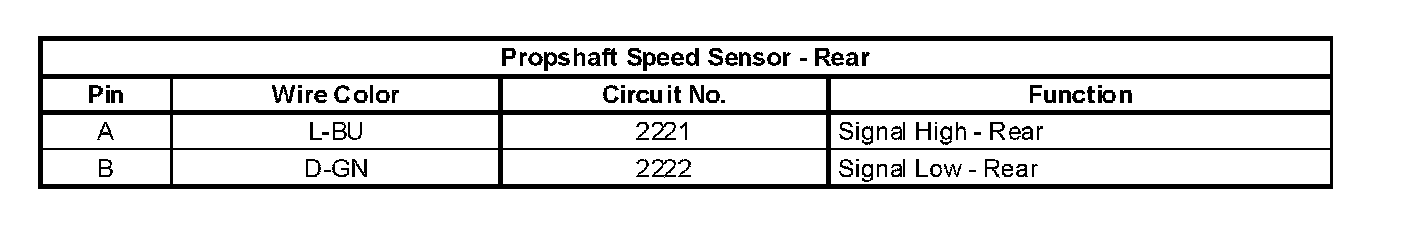

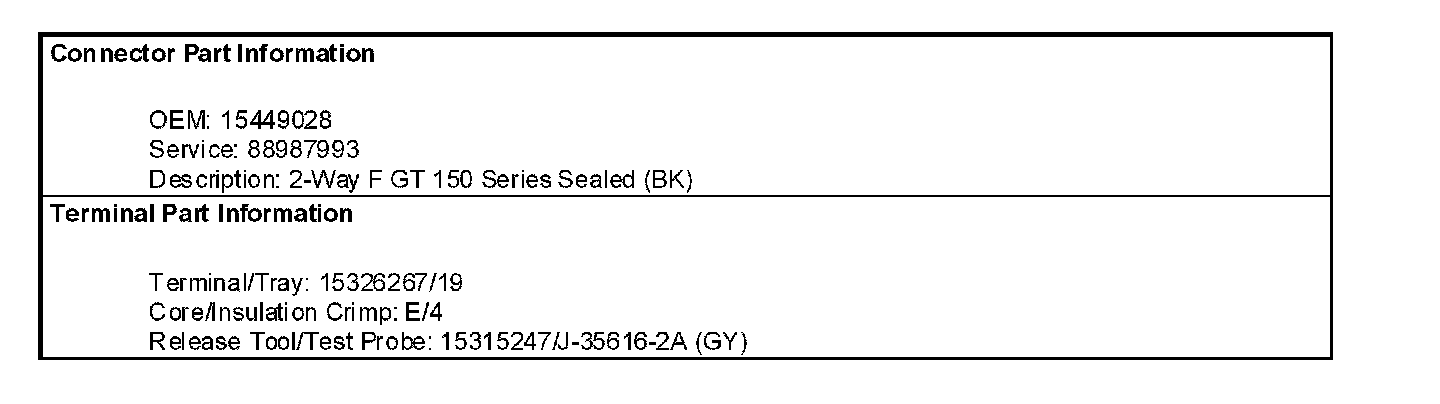

Propshaft Speed Sensor - Rear:
