Steering Mounted Controls Assembly



Component Connector End Views

Steering Wheel Control Switch Assembly - Upper Left

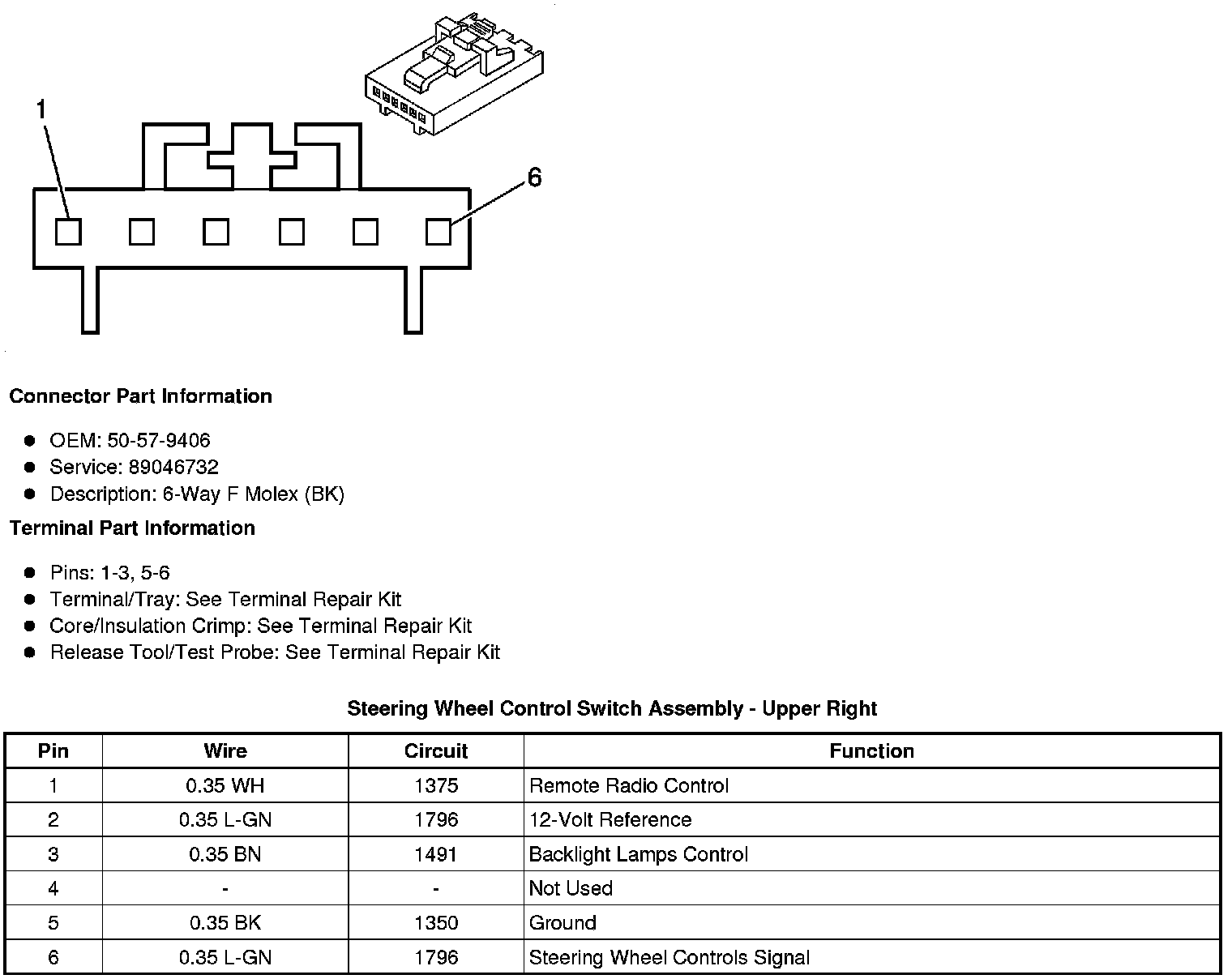

Steering Wheel Control Switch Assembly - Upper Right
