Steering Mounted Controls Transmitter

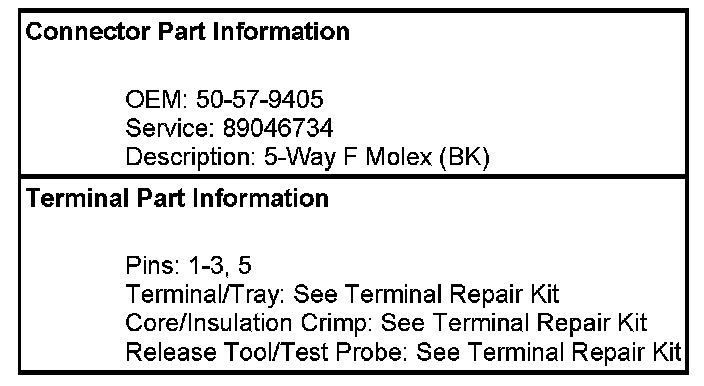

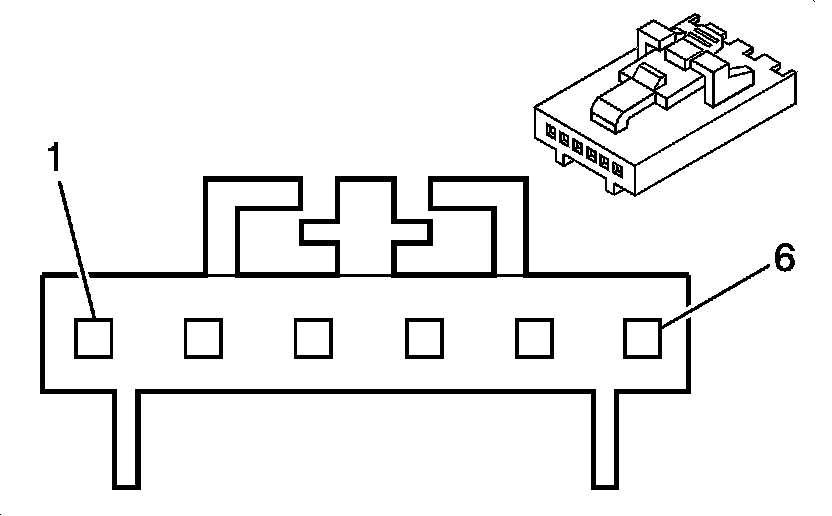

Secondary/Configurable Control Connector End Views

Steering Wheel Control Switch Assembly - Upper Left

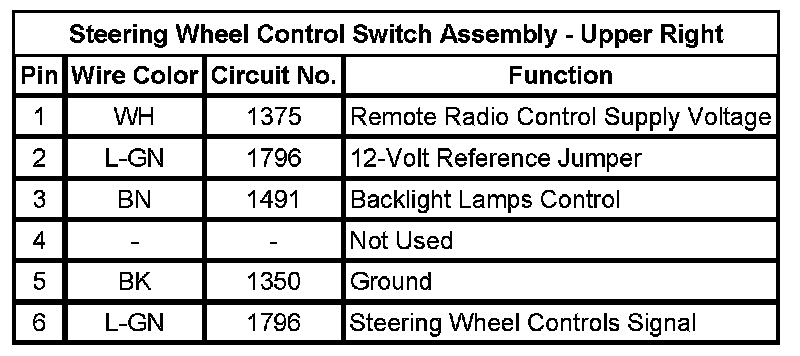

Steering Wheel Control Switch Assembly - Upper Right
