Combination Switch



Lighting Systems Connector End Views

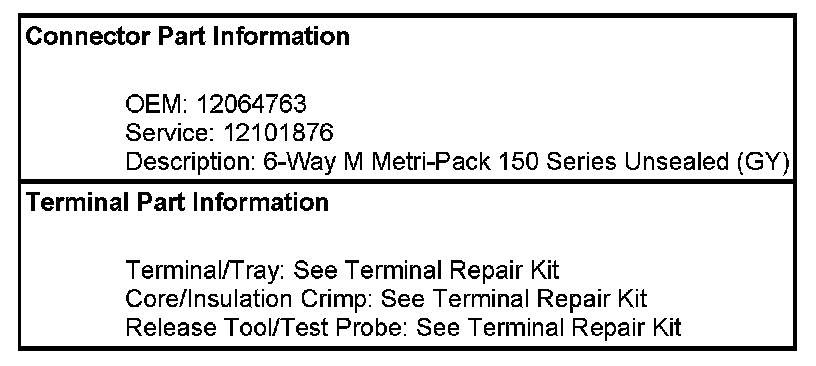

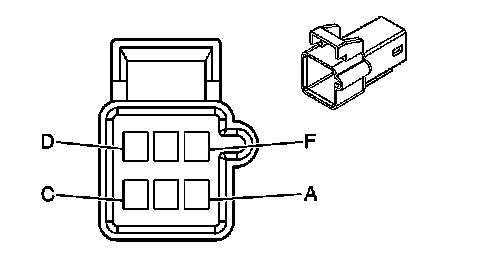

Turn Signal/Multifunction Switch C1

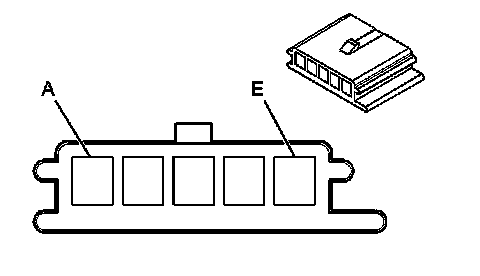

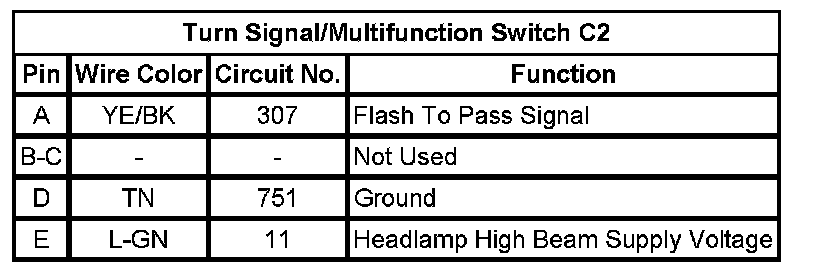

Turn Signal/Multifunction Switch C2

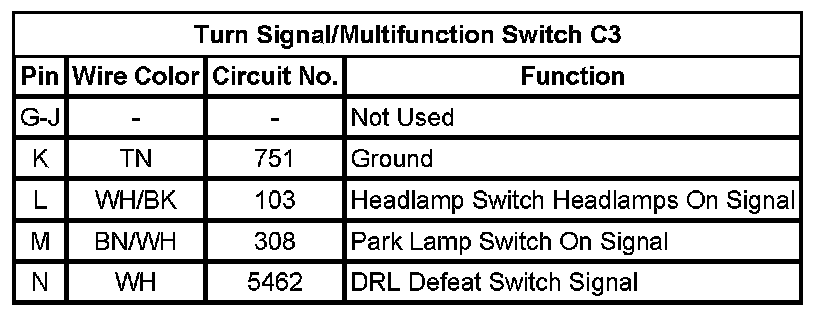

Turn Signal/Multifunction Switch C3














Turn Signal/Multifunction Switch C4
