Turn Signal Switch



Component Connector End Views

Turn Signal/Multifunction Switch X1





Turn Signal/Multifunction Switch X2

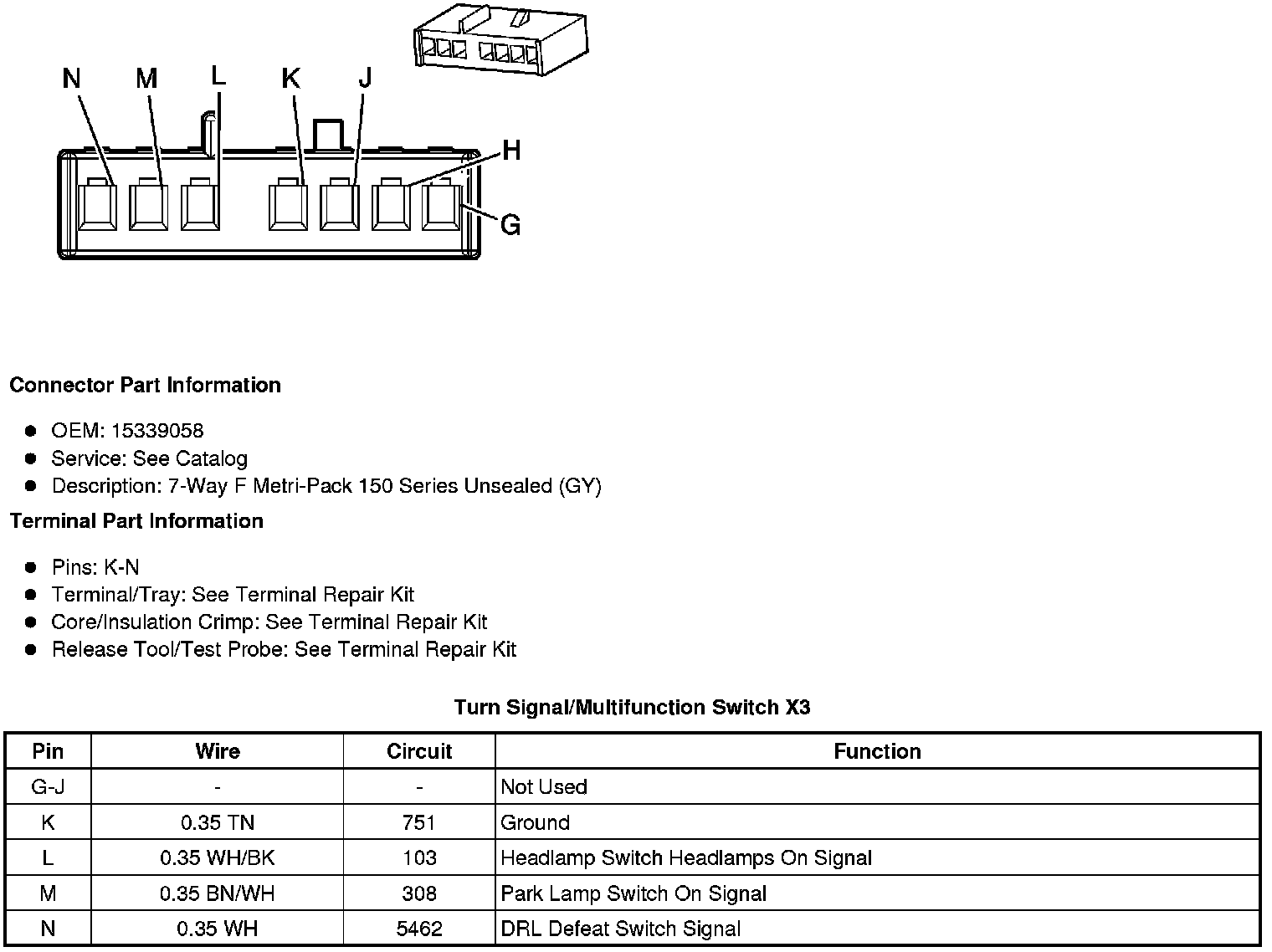

Turn Signal/Multifunction Switch X3

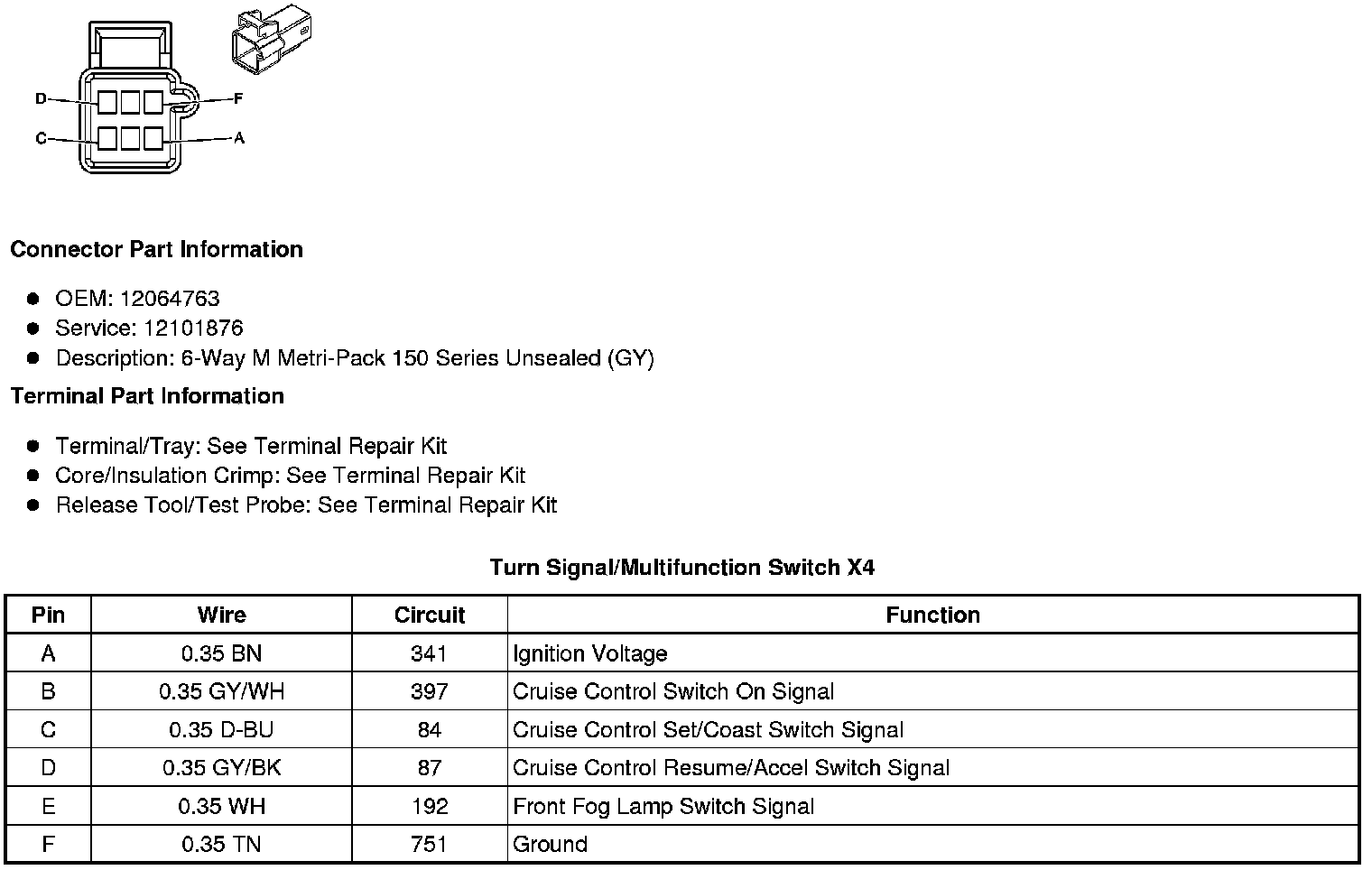

Turn Signal/Multifunction Switch X4
