Wheel Speed Sensor



Component Connector End Views

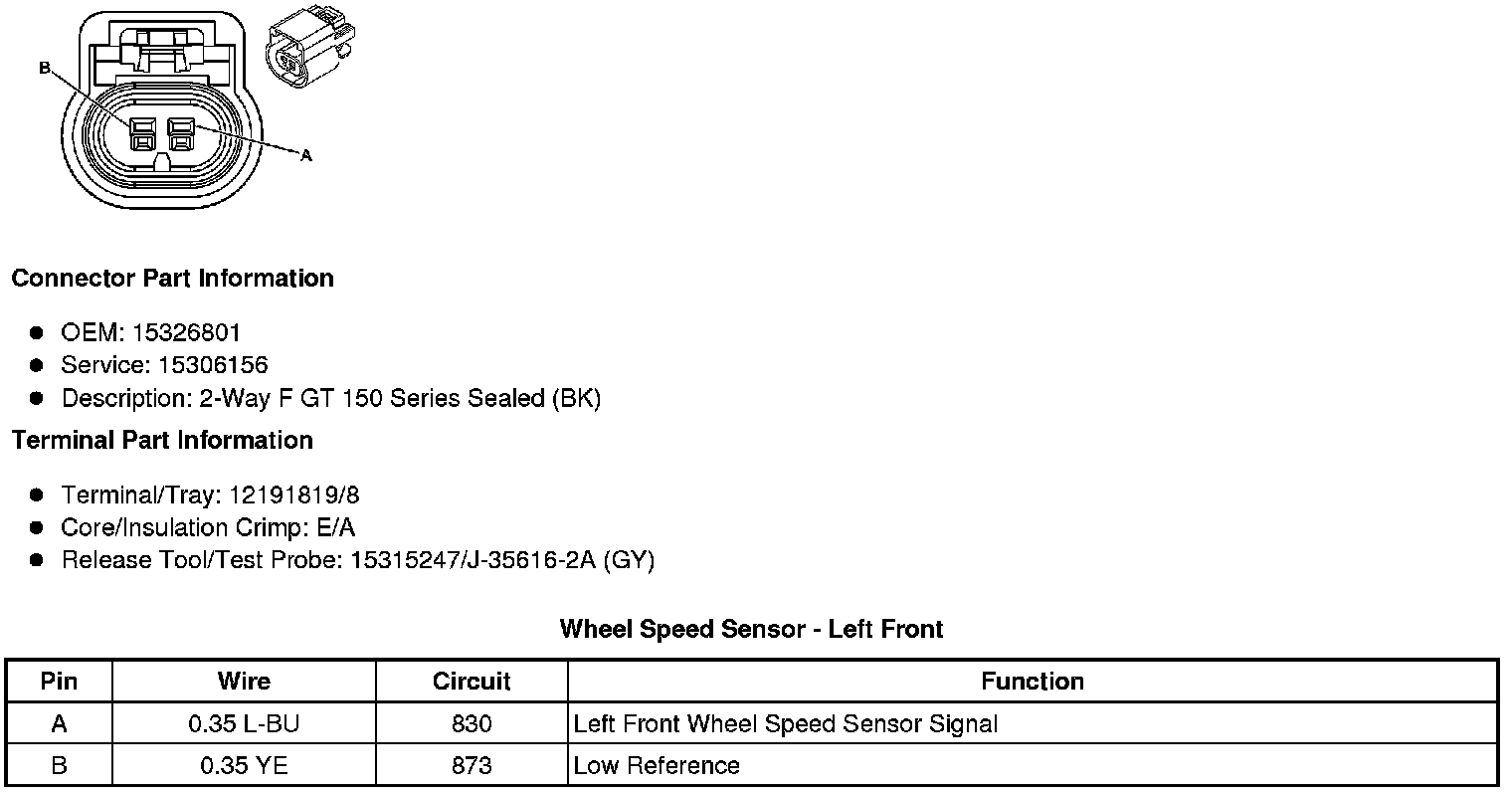

Wheel Speed Sensor - Left Front

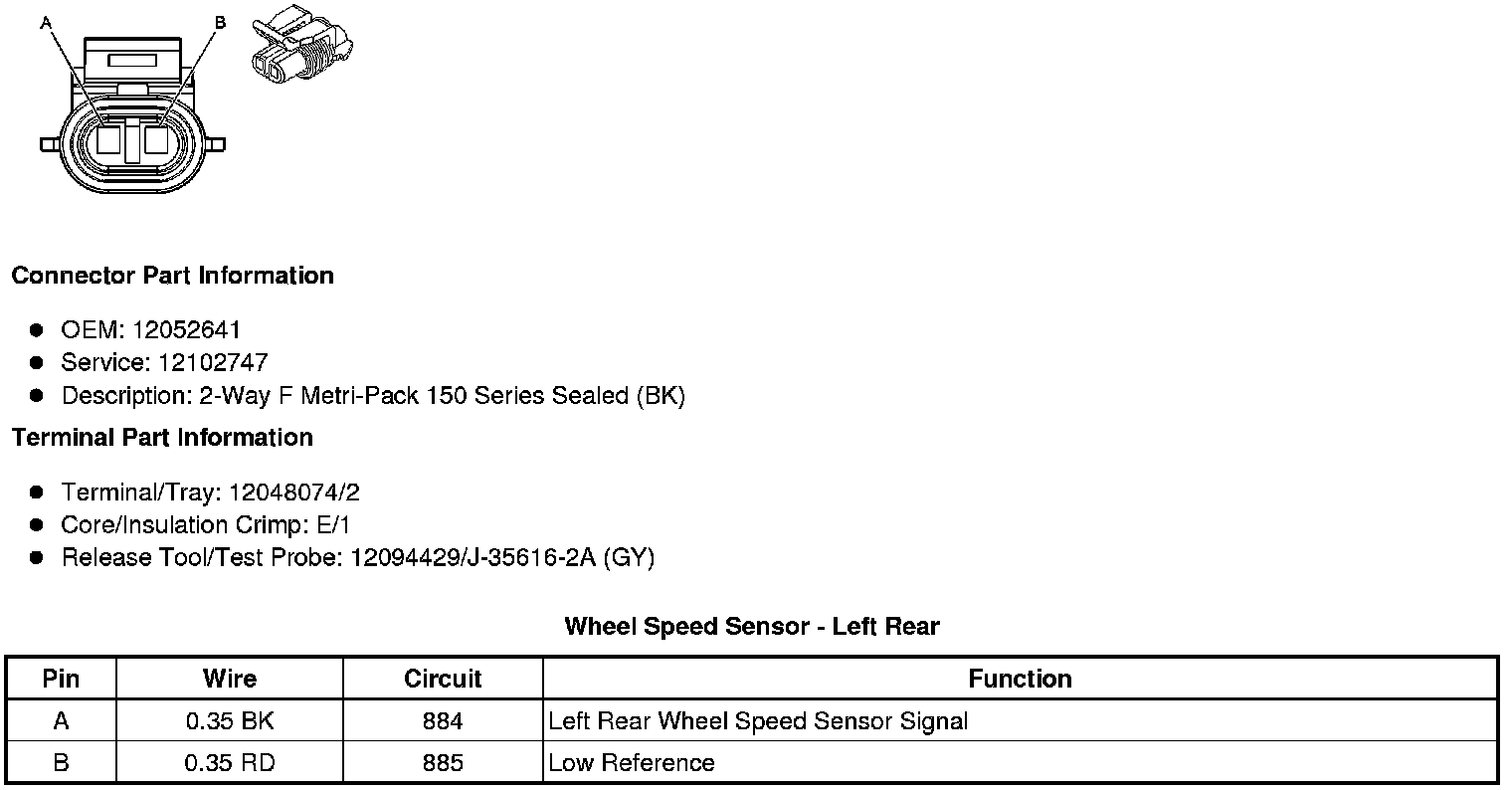

Wheel Speed Sensor - Left Rear





Wheel Speed Sensor - Right Front

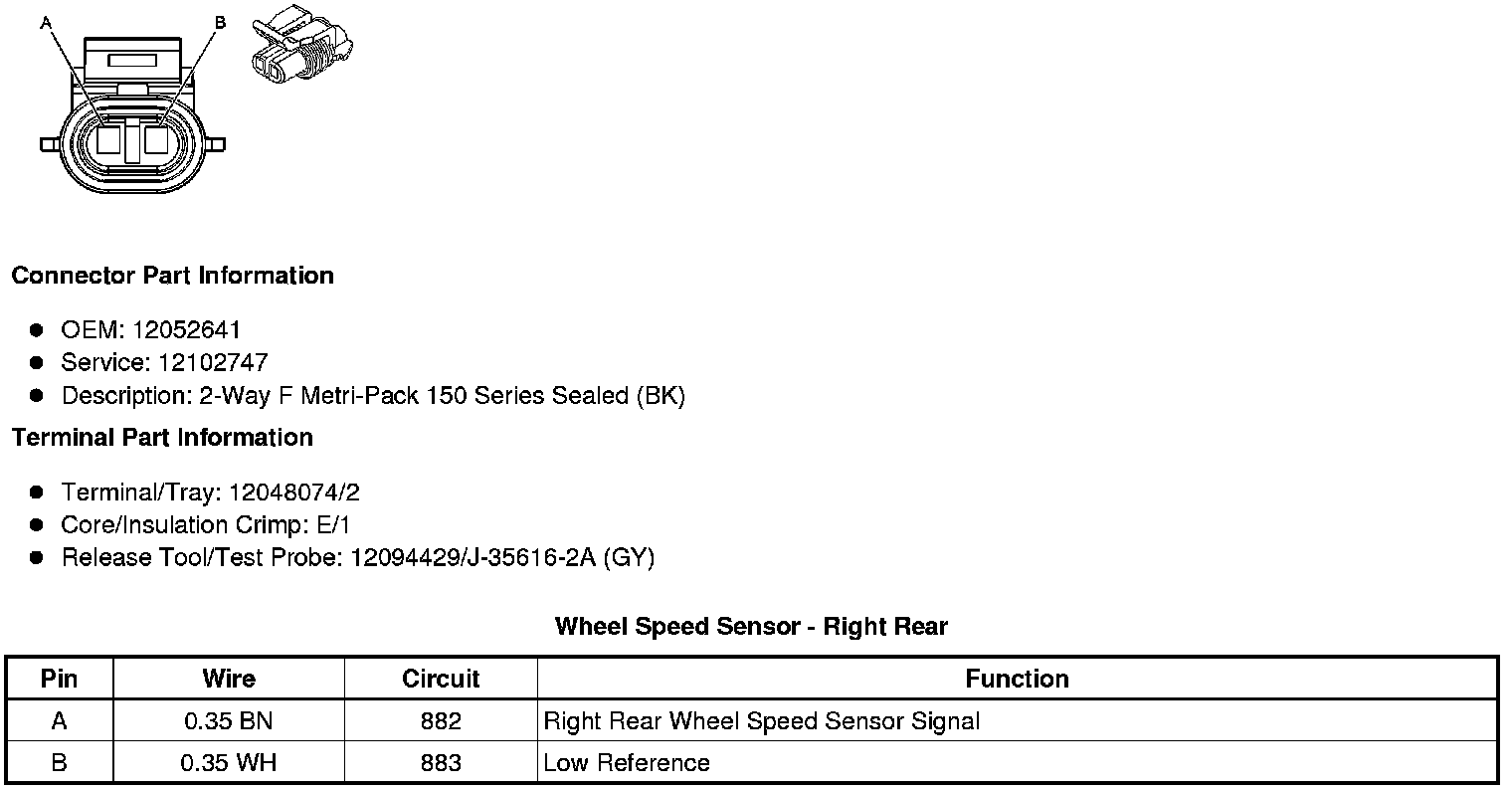

Wheel Speed Sensor - Right Rear
