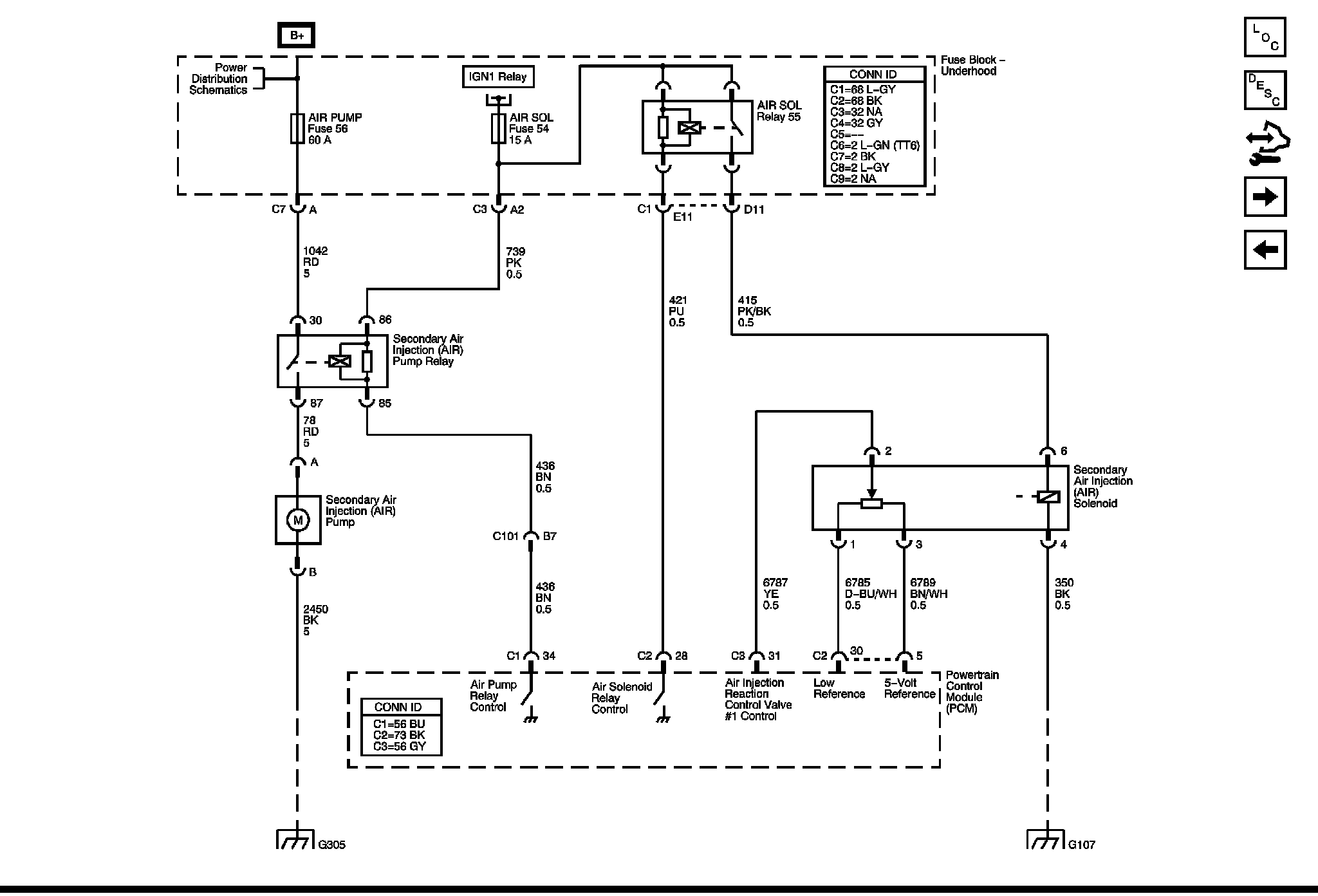

Engine Controls Schematics 12



Engine Controls Schematics


Device Controls - K18






Next Diagram Engine Controls Schematics 13

Previous Diagram Engine Controls Schematics 11

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
