Air Flow Meter/Sensor: Service and Repair

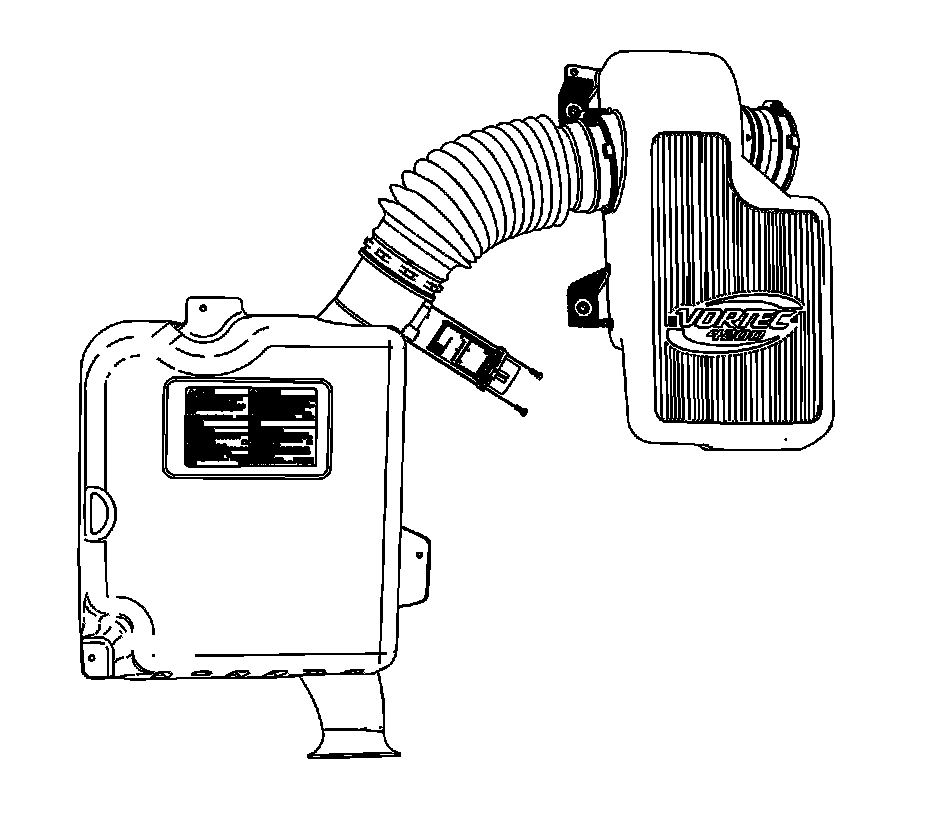

Mass Airflow Sensor/Intake Air Temperature Sensor Replacement

Removal Procedure

Important: Use care when handling the mass air flow/intake air temperature (MAF/IAT) sensor. Do not dent, puncture, or otherwise damage the honeycell located at the air inlet end of the MAF/IAT. Do not touch the sensing elements or allow anything including cleaning solvents and lubricants to come in contact with them. Use a small amount of a non-silicone based lubricant, on the air duct only, to aid in installation.

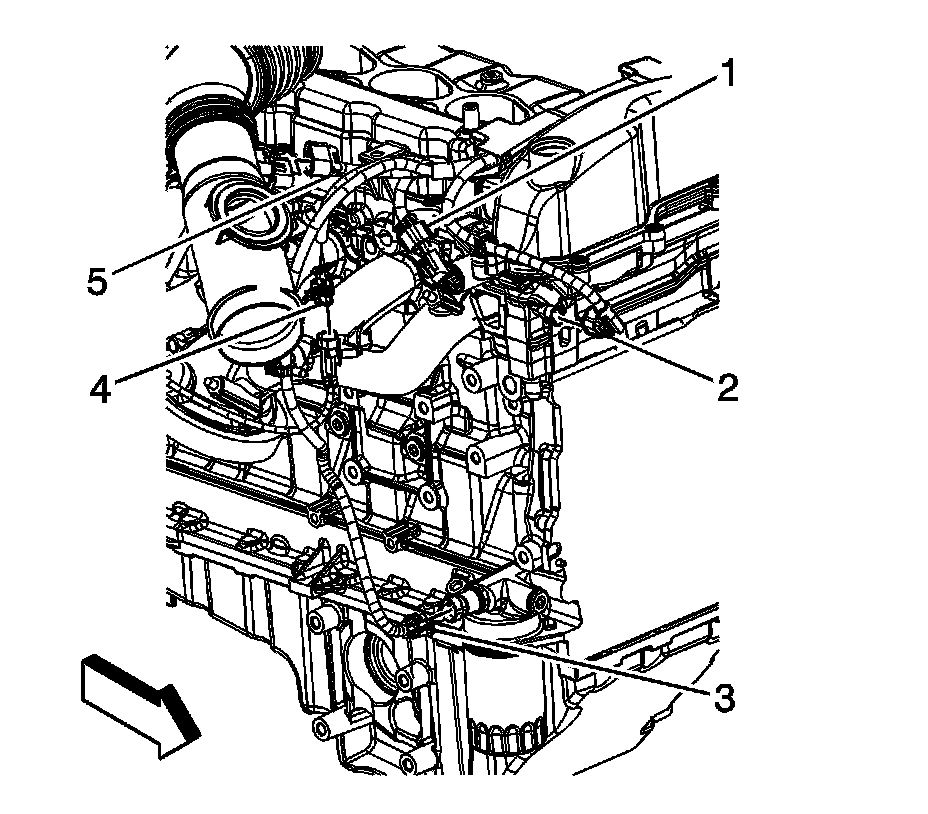

1. Disconnect the engine harness electrical connector (5) from the MAF/IAT sensor.




2. Remove the MAF/IAT sensor screws.
3. Remove the MAF/IAT sensor.

Installation Procedure




1. Install the MAF/IAT sensor.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the MAF/IAT sensor screws.

Tighten the screws to 0.6 Nm (5 in. lbs.).




3. Connect the engine harness electrical connector (5) to the MAF/IAT sensor.
