Knock Sensor: Locations

Powertrain Component Views

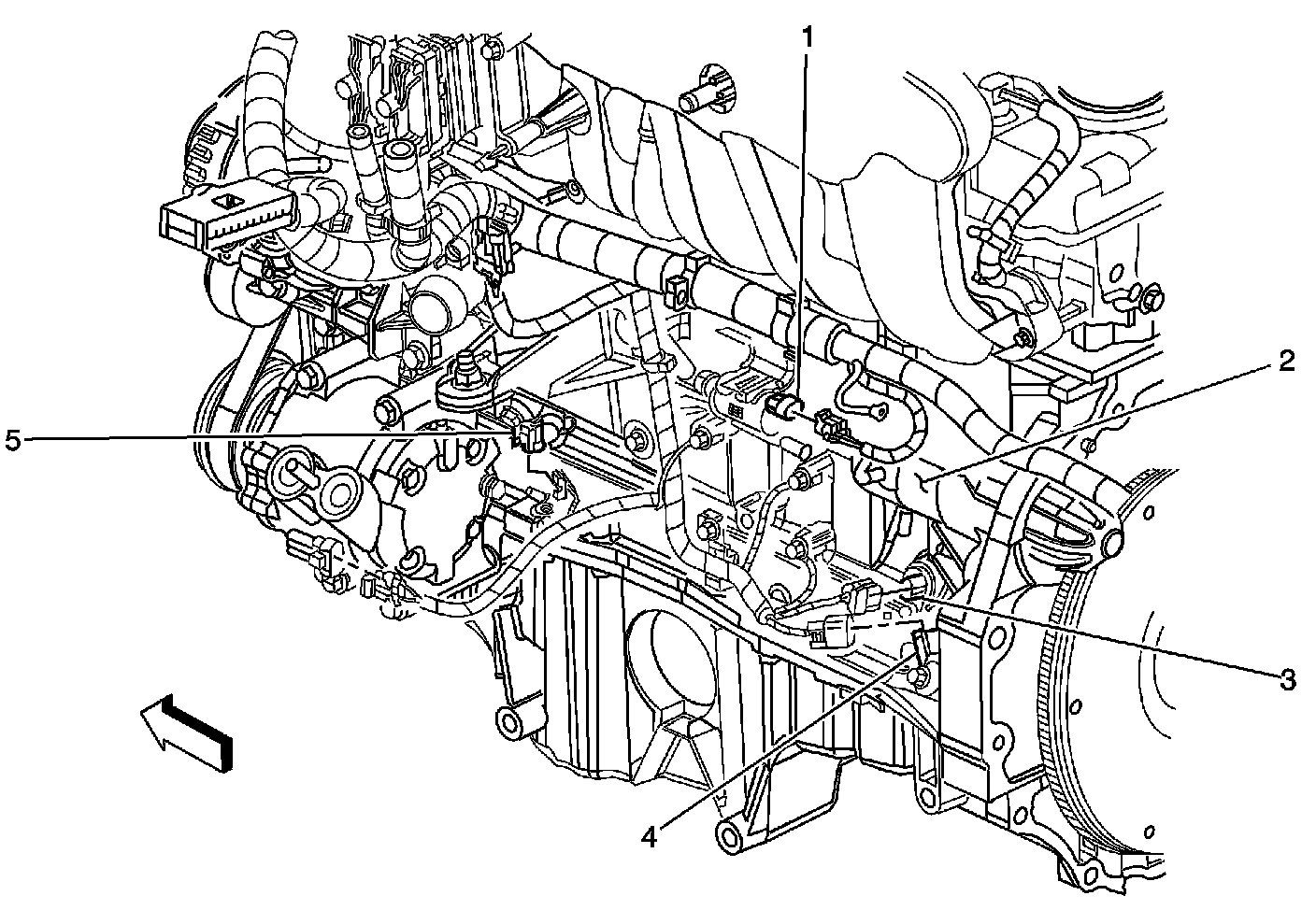

Lower Left Side of the Engine (4.2L)




1 - Evaporative Emission (EVAP) Canister Purge Solenoid
2 - Starter
3 - Crankshaft Position (CKP) Sensor
4 - Knock Sensor (KS) 2, Rear
5 - Knock Sensor (KS) 1, Front

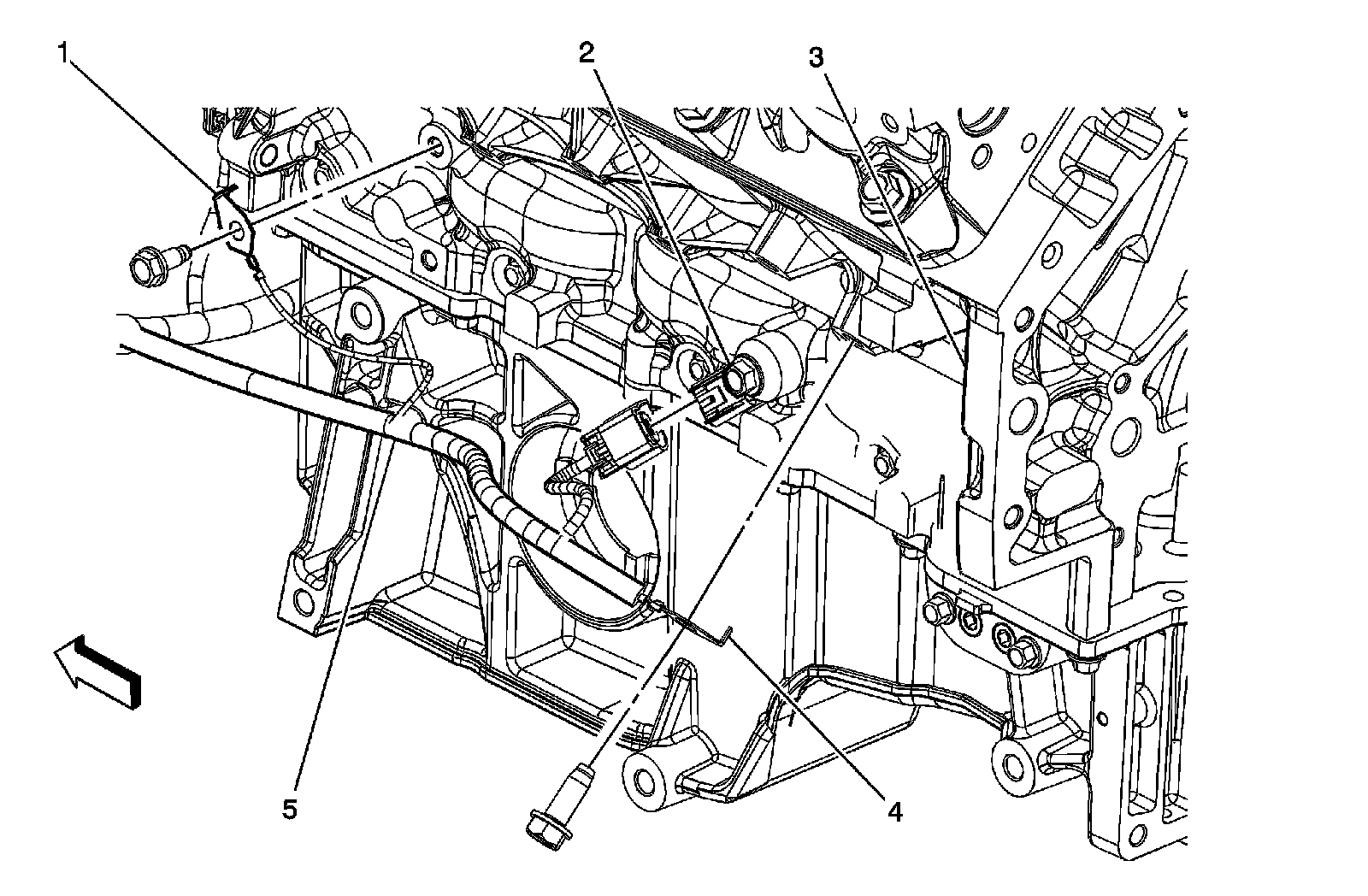

Lower Left Side of Engine - Rear




1 - G108
2 - Knock Sensor (KS) 1 - Left
3 - Engine
4 - G107
5 - Engine Harness

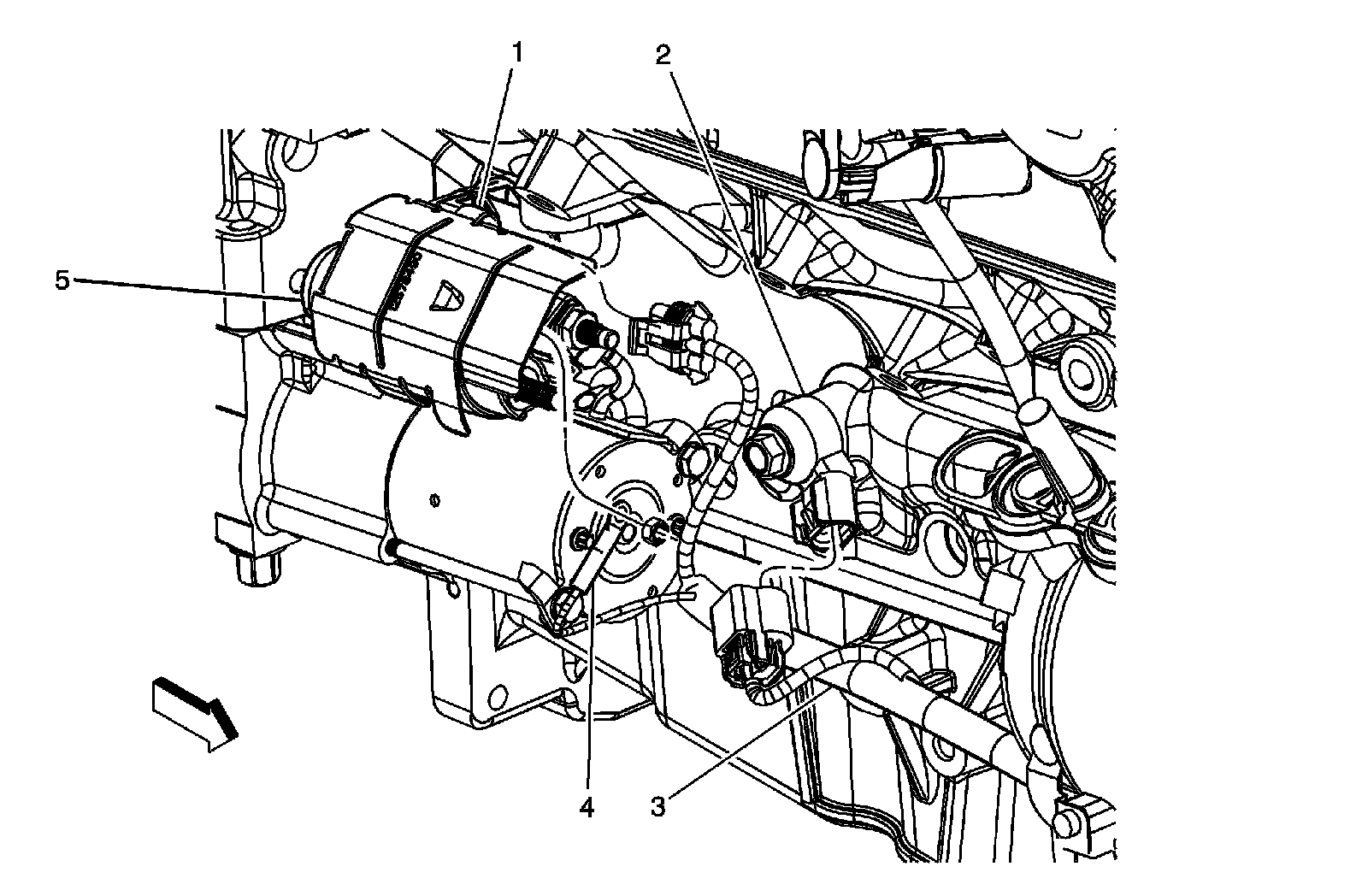

Lower Right Side of the Engine - Rear




1 - Crankshaft Position (CKP) Sensor
2 - Knock Sensor (KS) 2 - Right
3 - Engine Harness
4 - Starter
5 - Engine
