Liftgate Control Module Replacement

Liftgate Control Module Replacement

Removal Procedure

1. Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Liftgate Trim Panel Replacement).

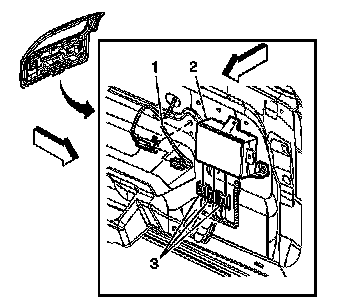

2. Disconnect the electrical connectors (3) from the module as necessary.
3. Remove the bolts that retain the module to the liftgate.
4. Remove the module from the liftgate.

Installation Procedure




1. Install the module to the liftgate.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the bolts that retain the module to the liftgate.

Tighten the bolts to 10 Nm (89 in. lbs.).

3. Connect the electrical connectors (3) as necessary.
4. Install the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Liftgate Trim Panel Replacement).
5. Program the liftgate control module. Refer to Control Module References (Control Module References).
