Mode 6 Data

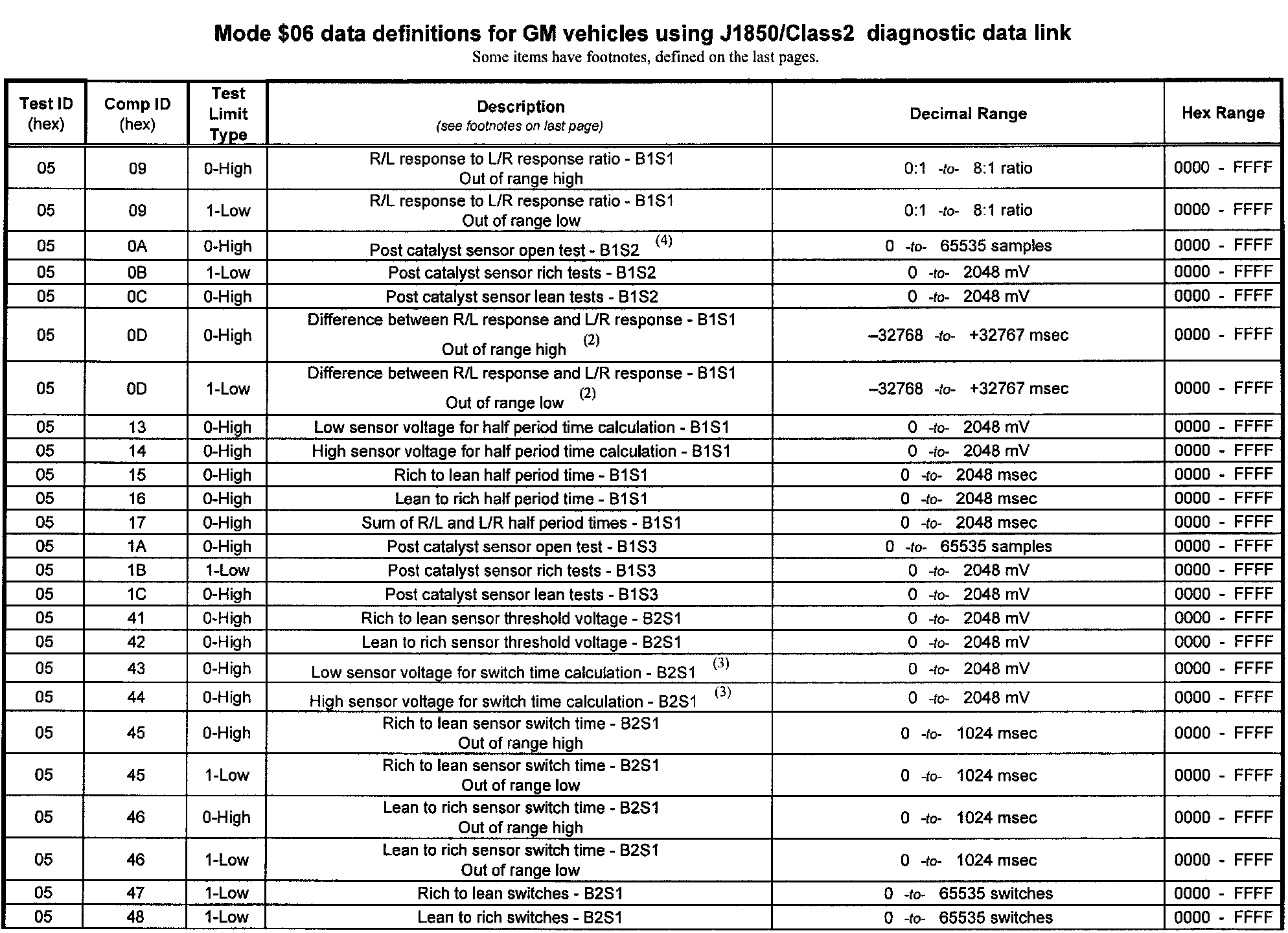

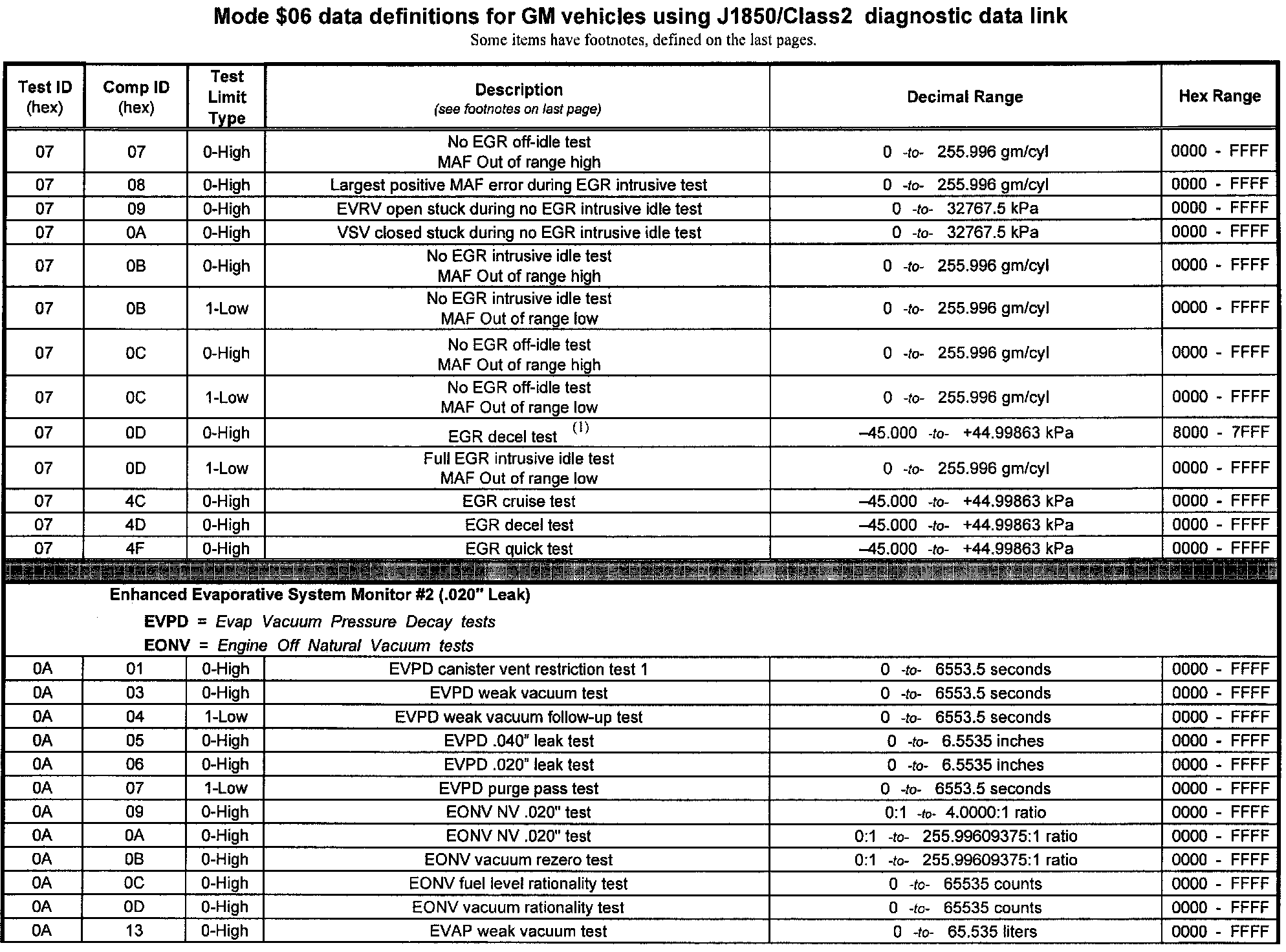

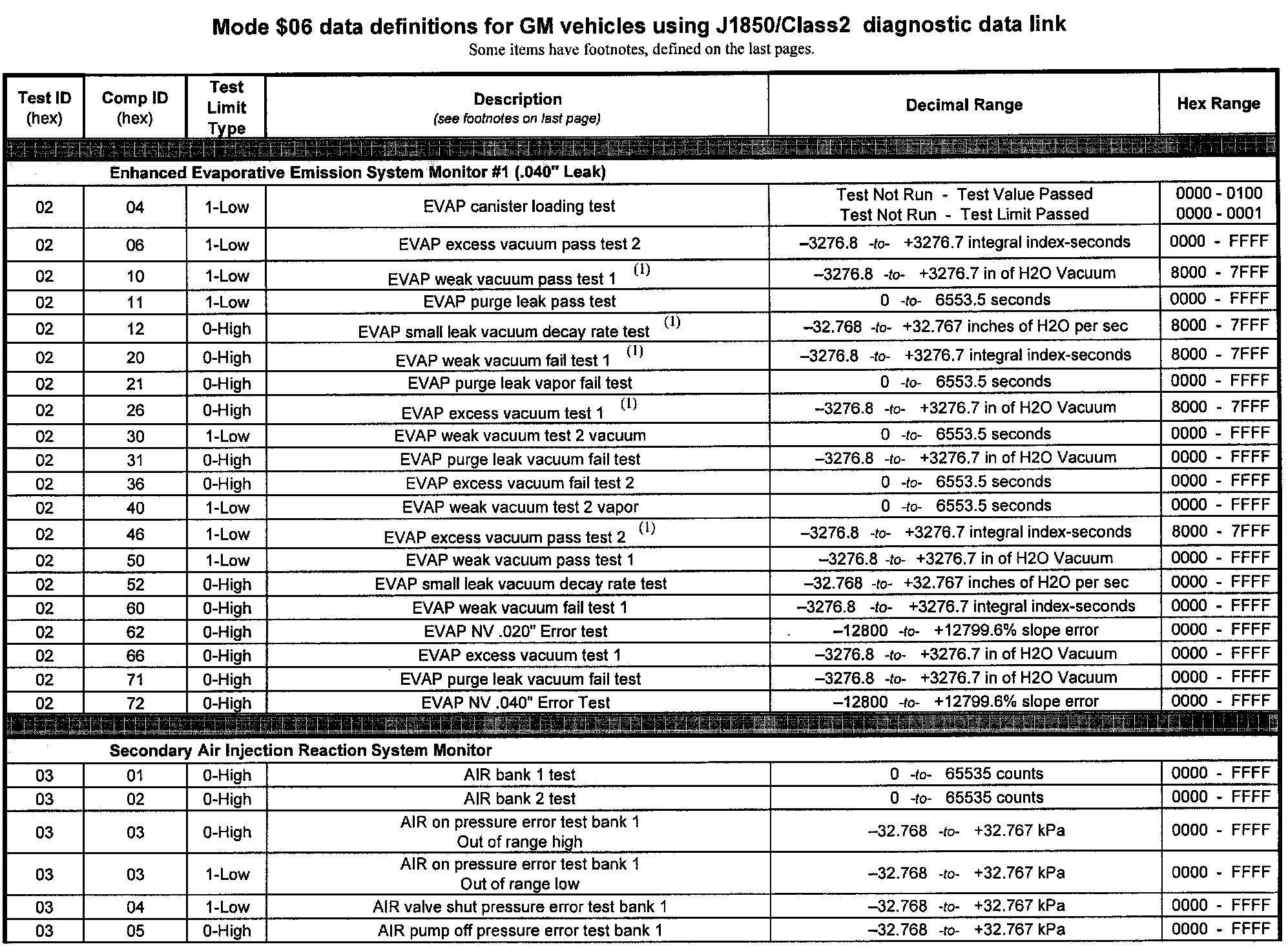

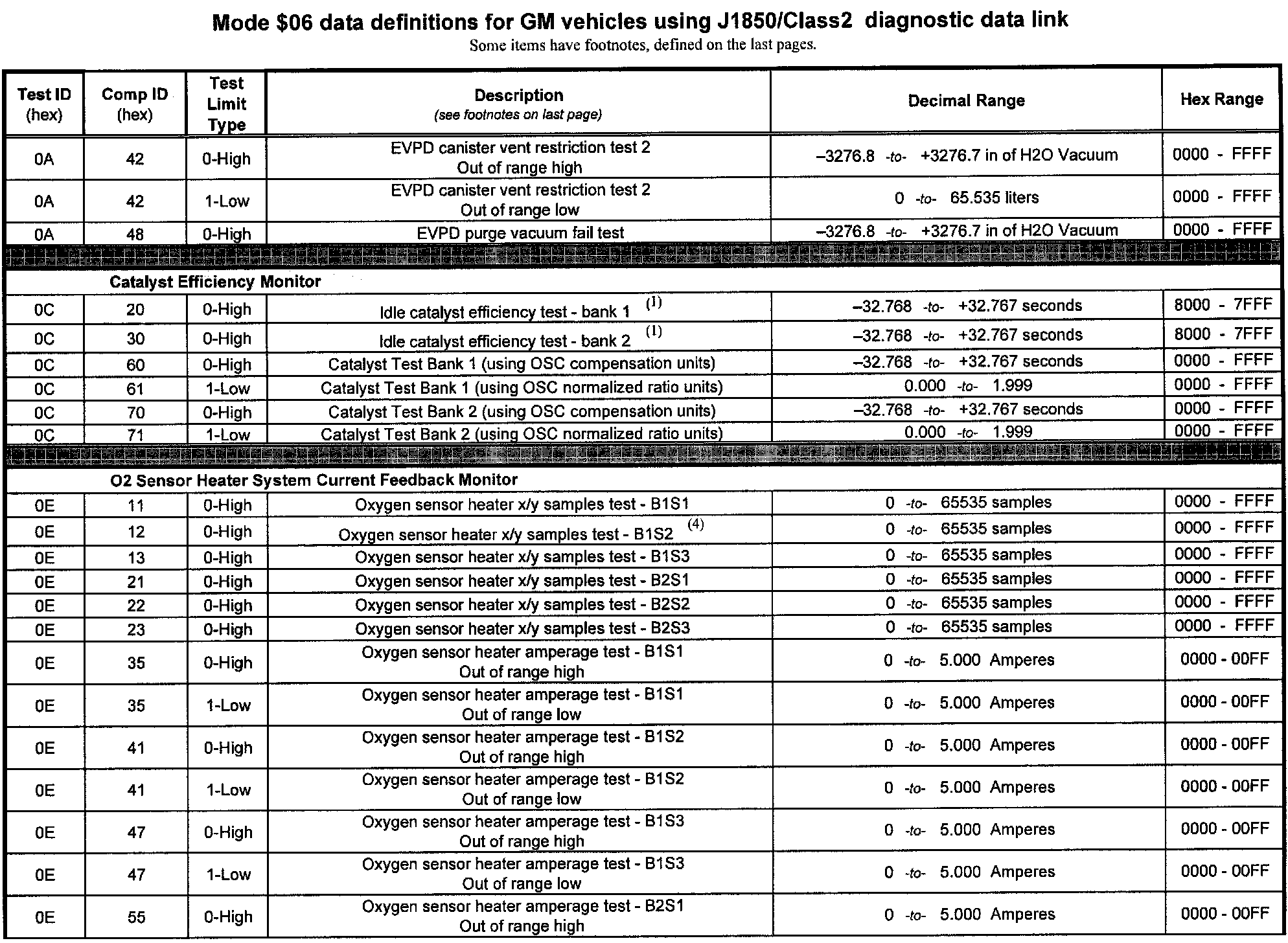

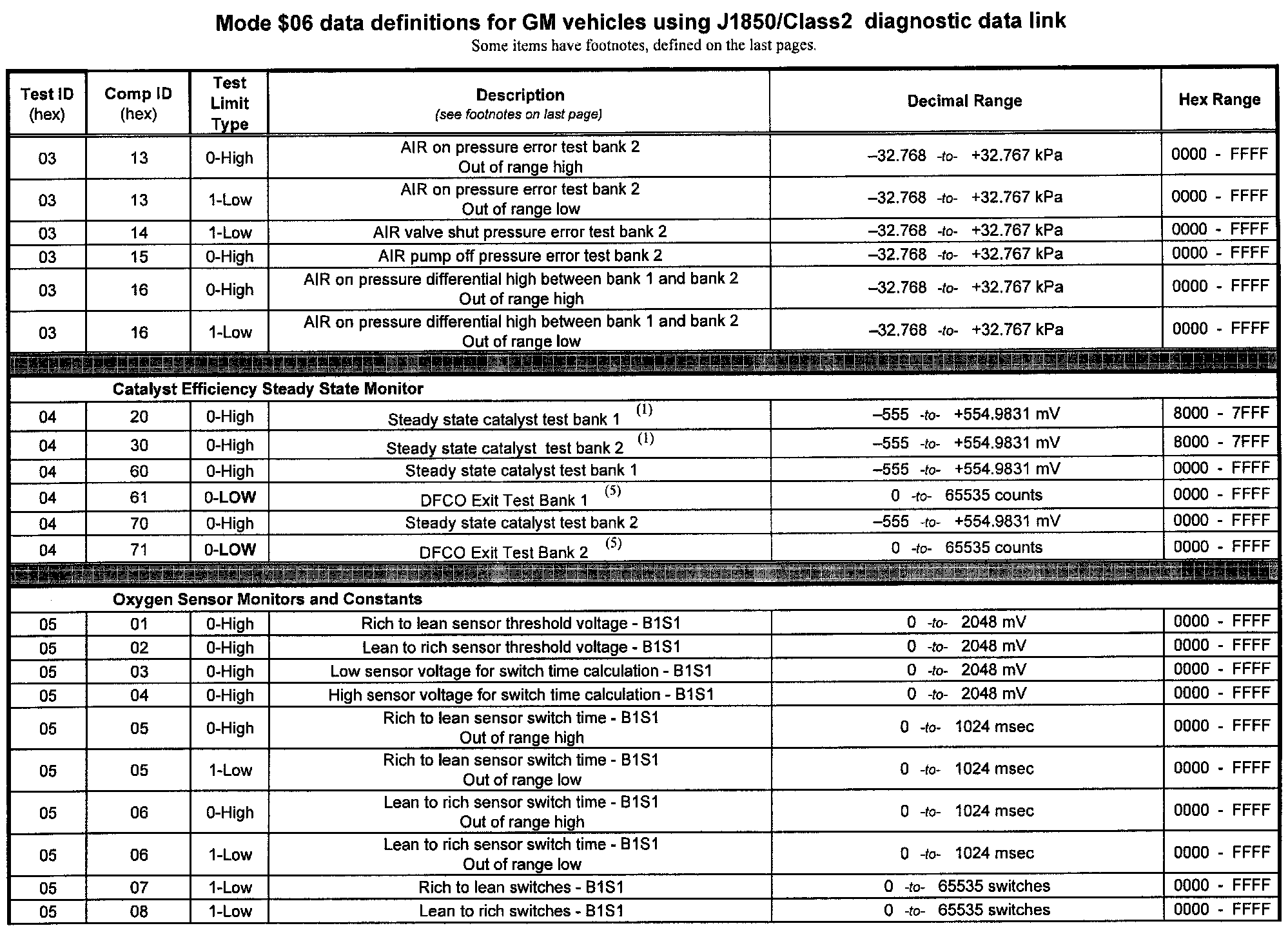

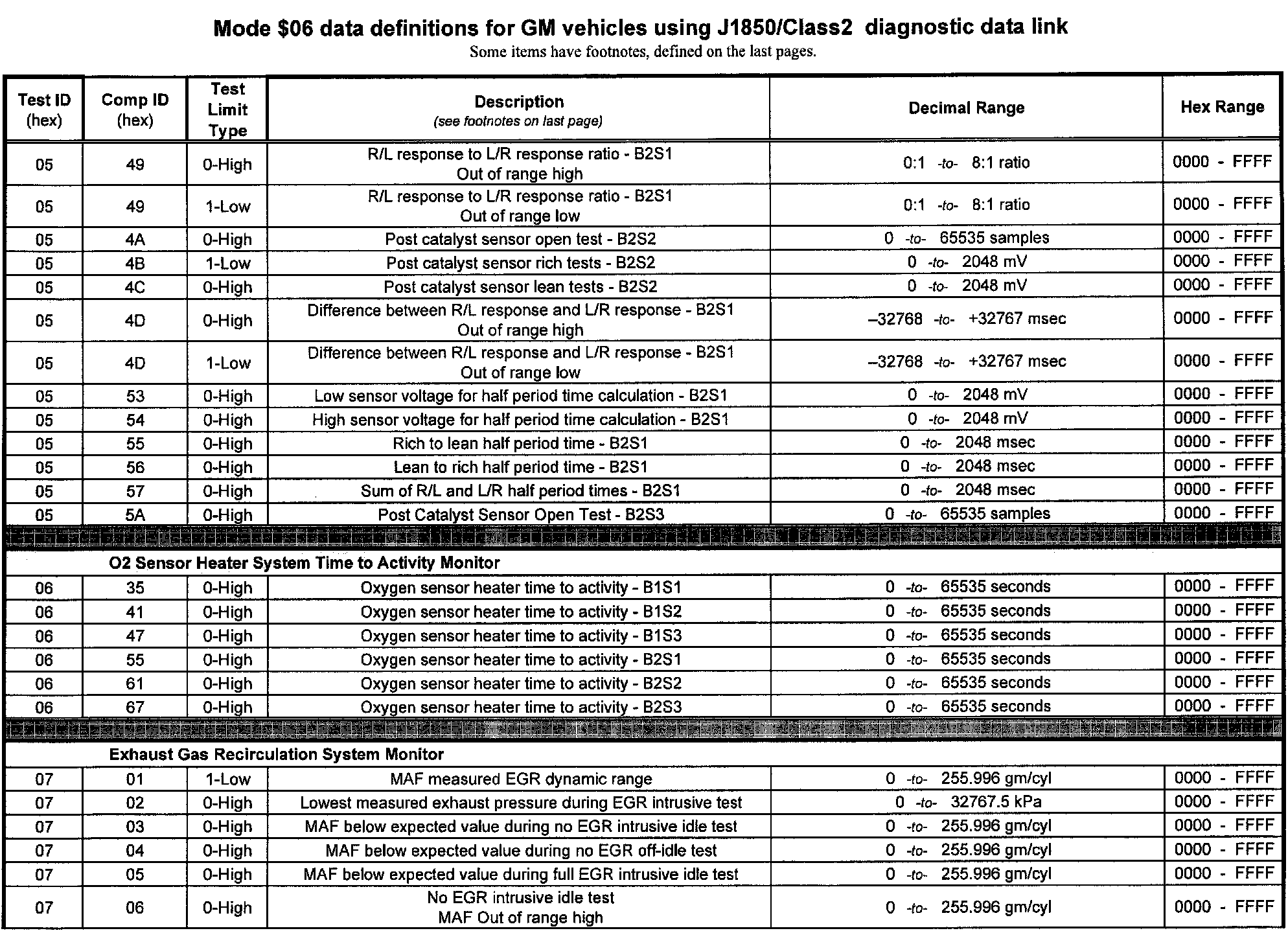

Mode 6 Data Page 1:

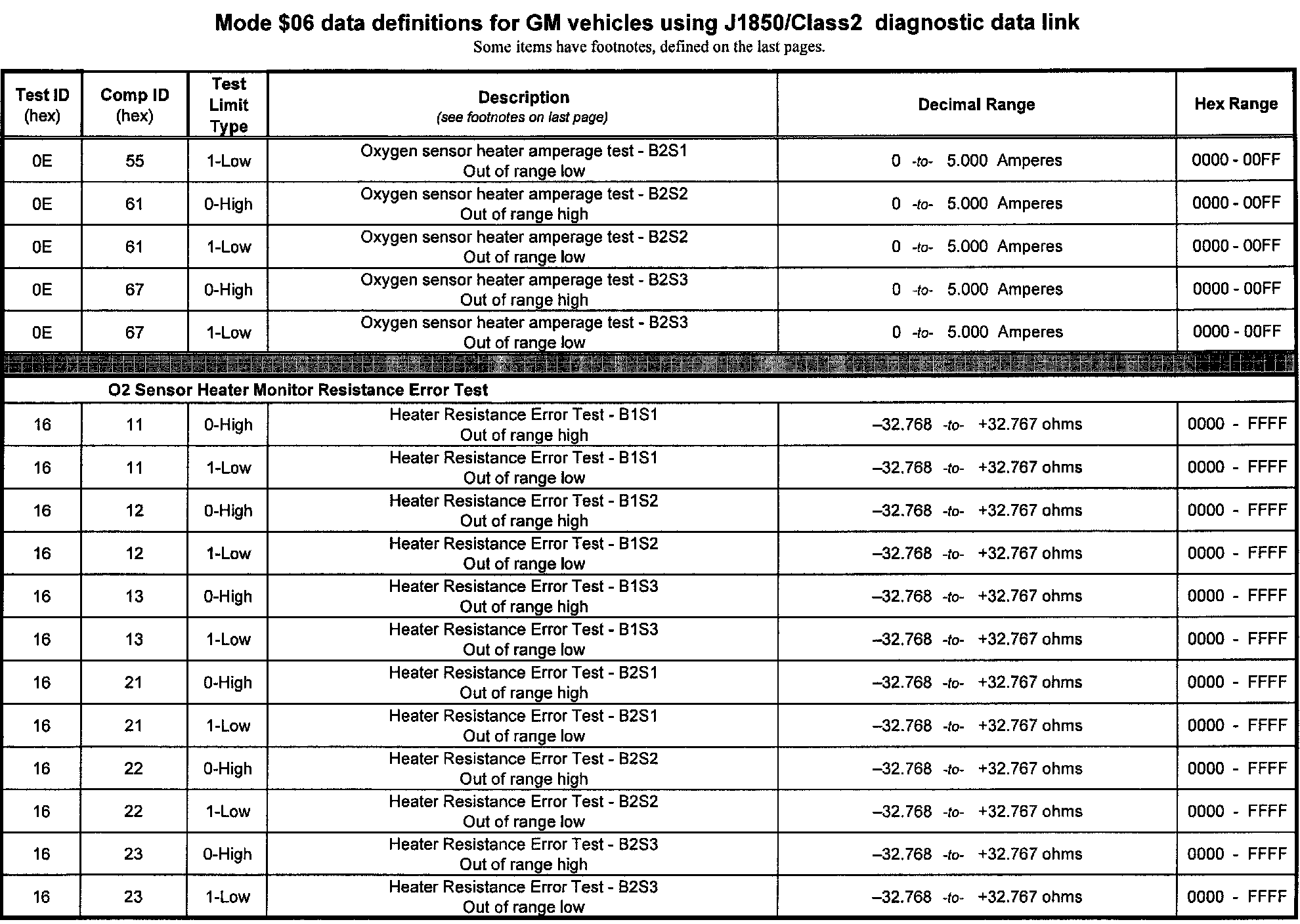

Mode 6 Data Page 2:



Mode 6 Data Page 3:



Mode 6 Data Page 4:



Mode 6 Data Page 5:



Mode 6 Data Page 6:



Mode 6 Data Page 7:



Mode 6 Data Page 8:

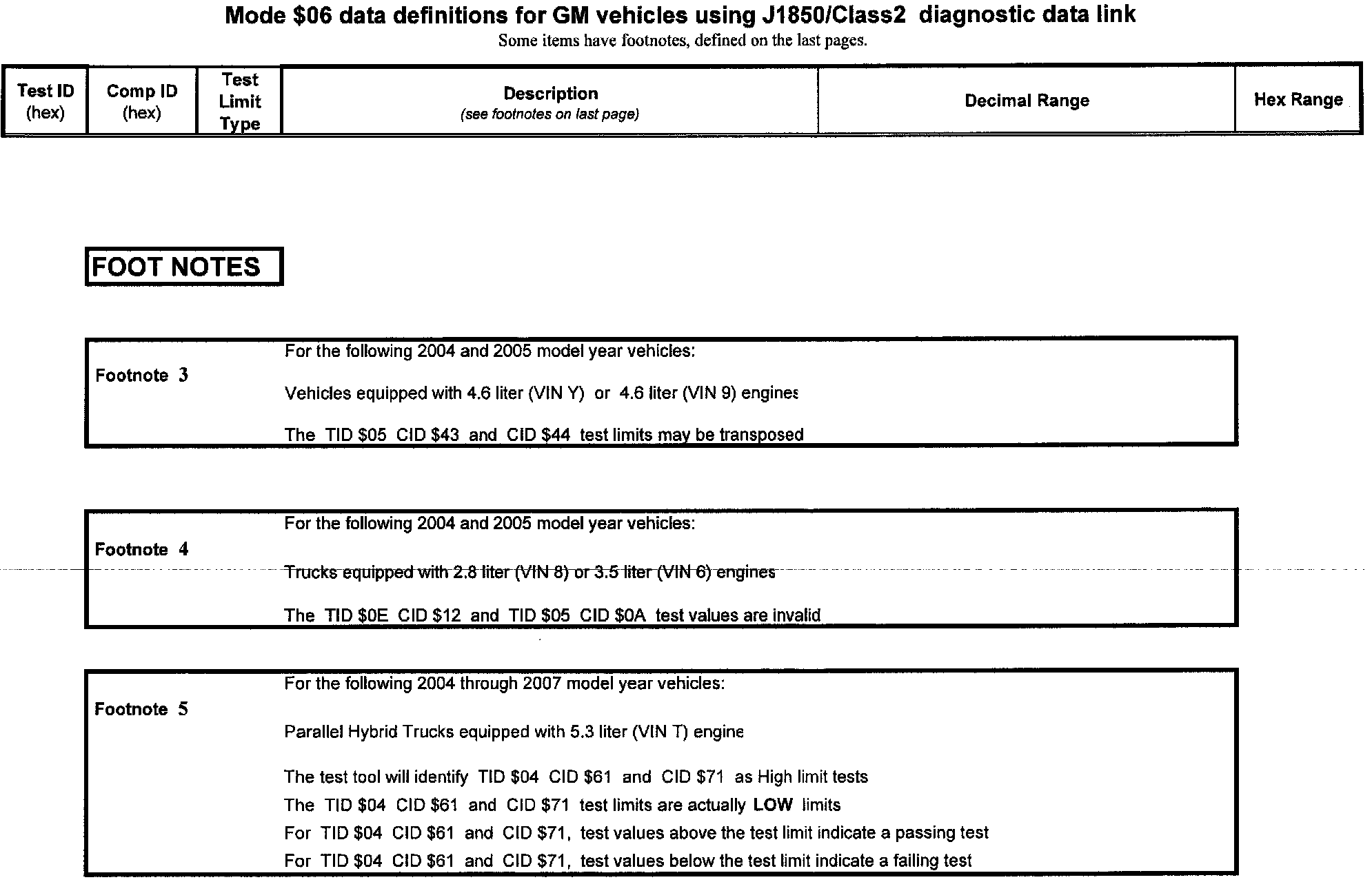

Mode 6 Data Page 9:

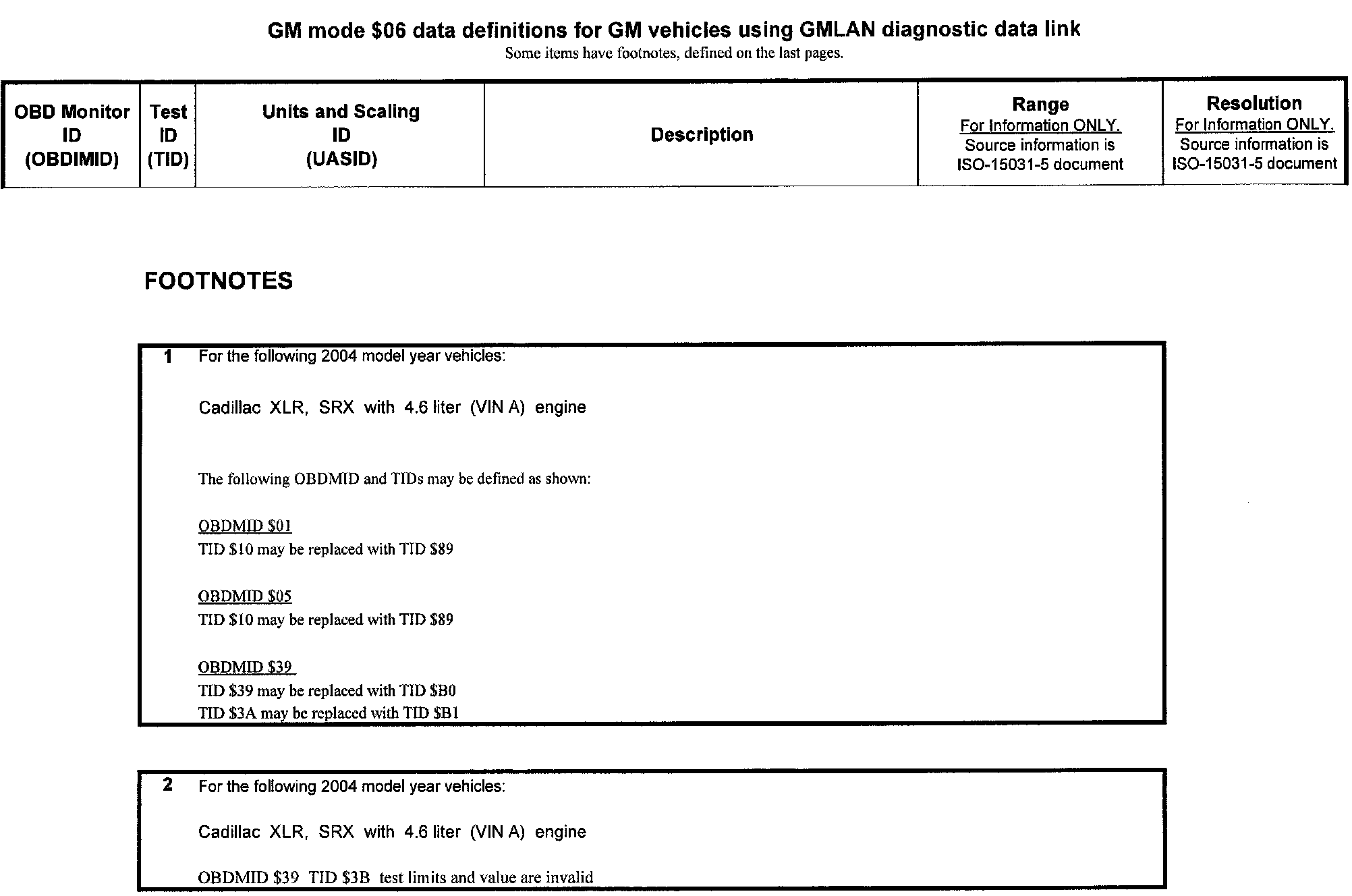

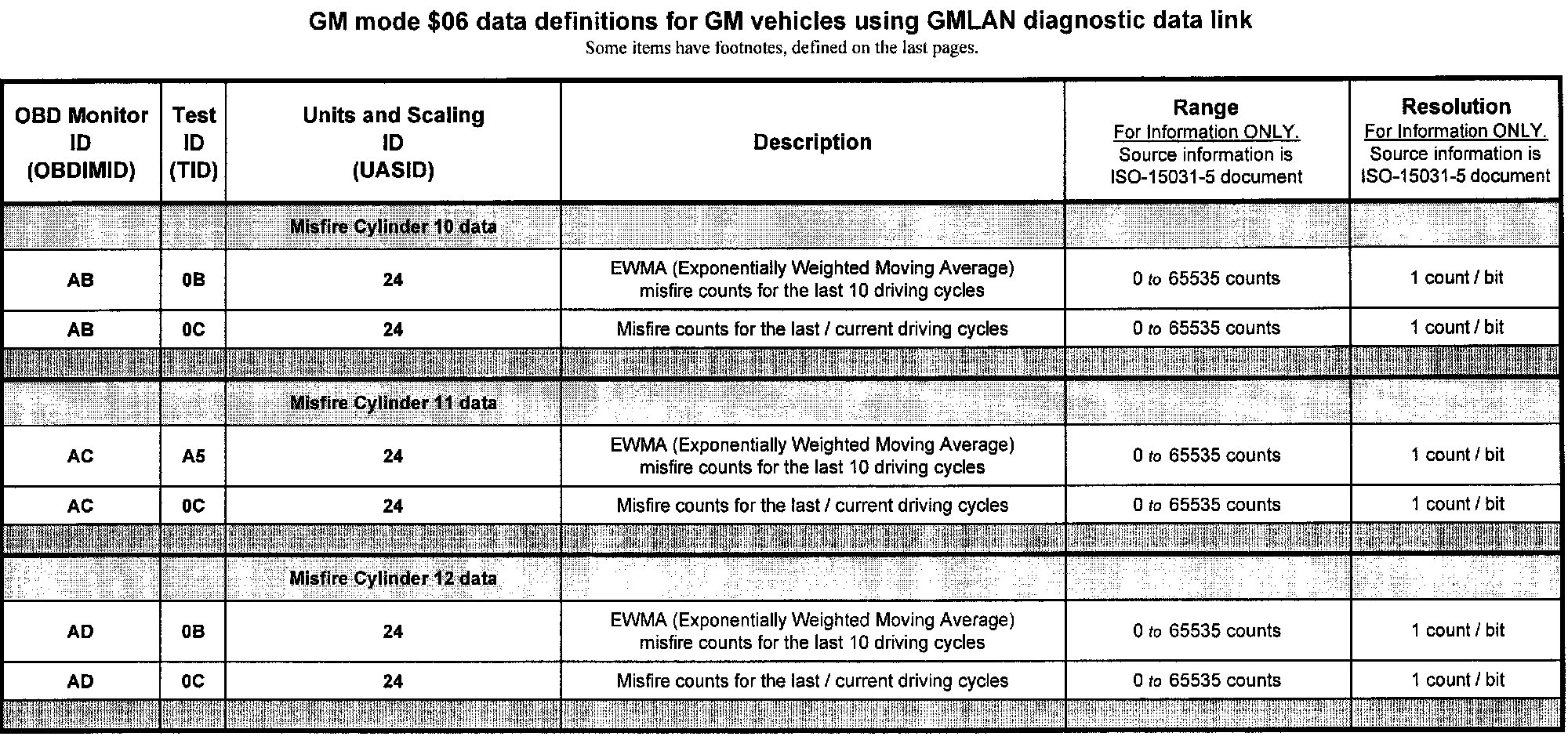

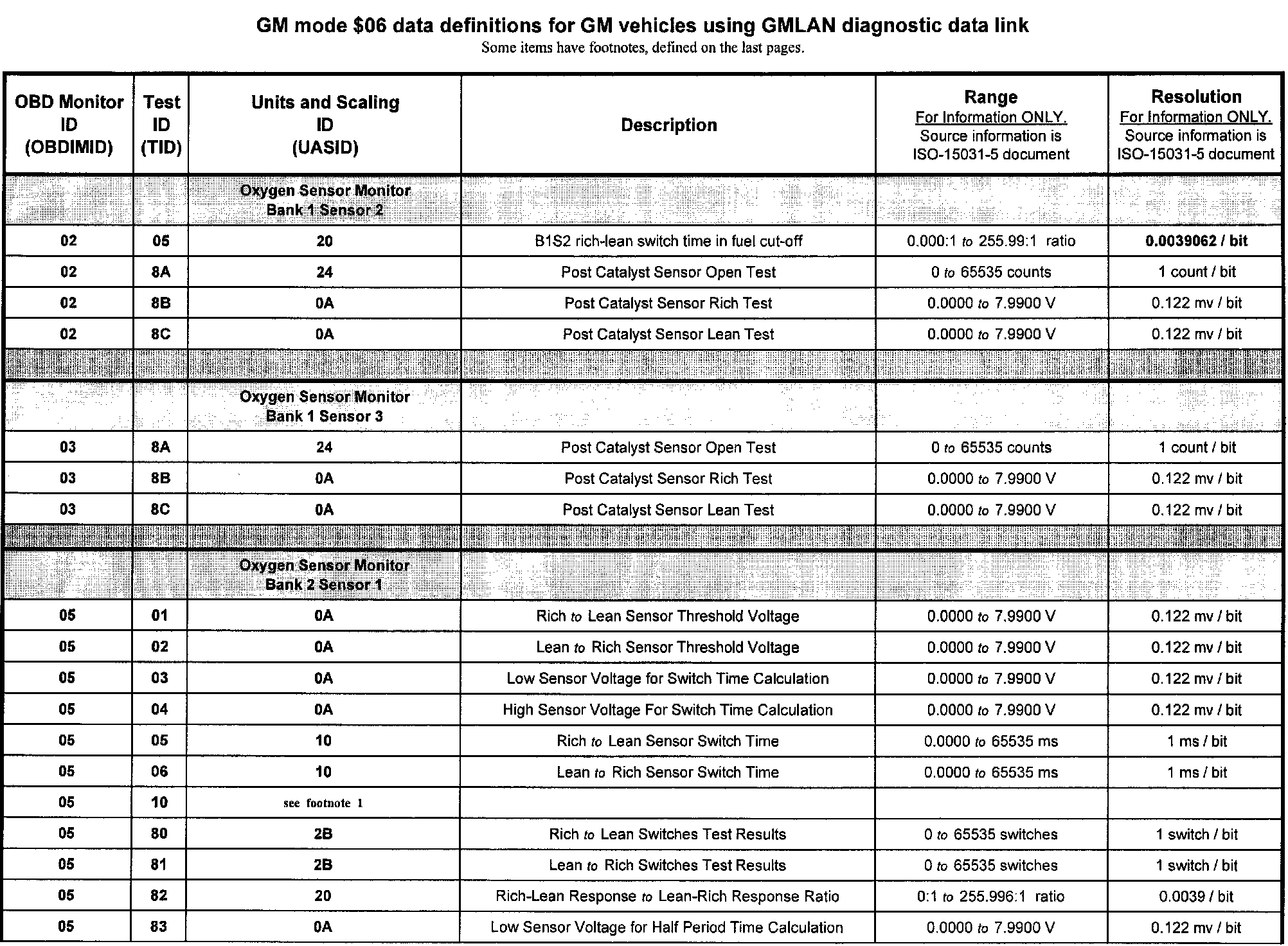

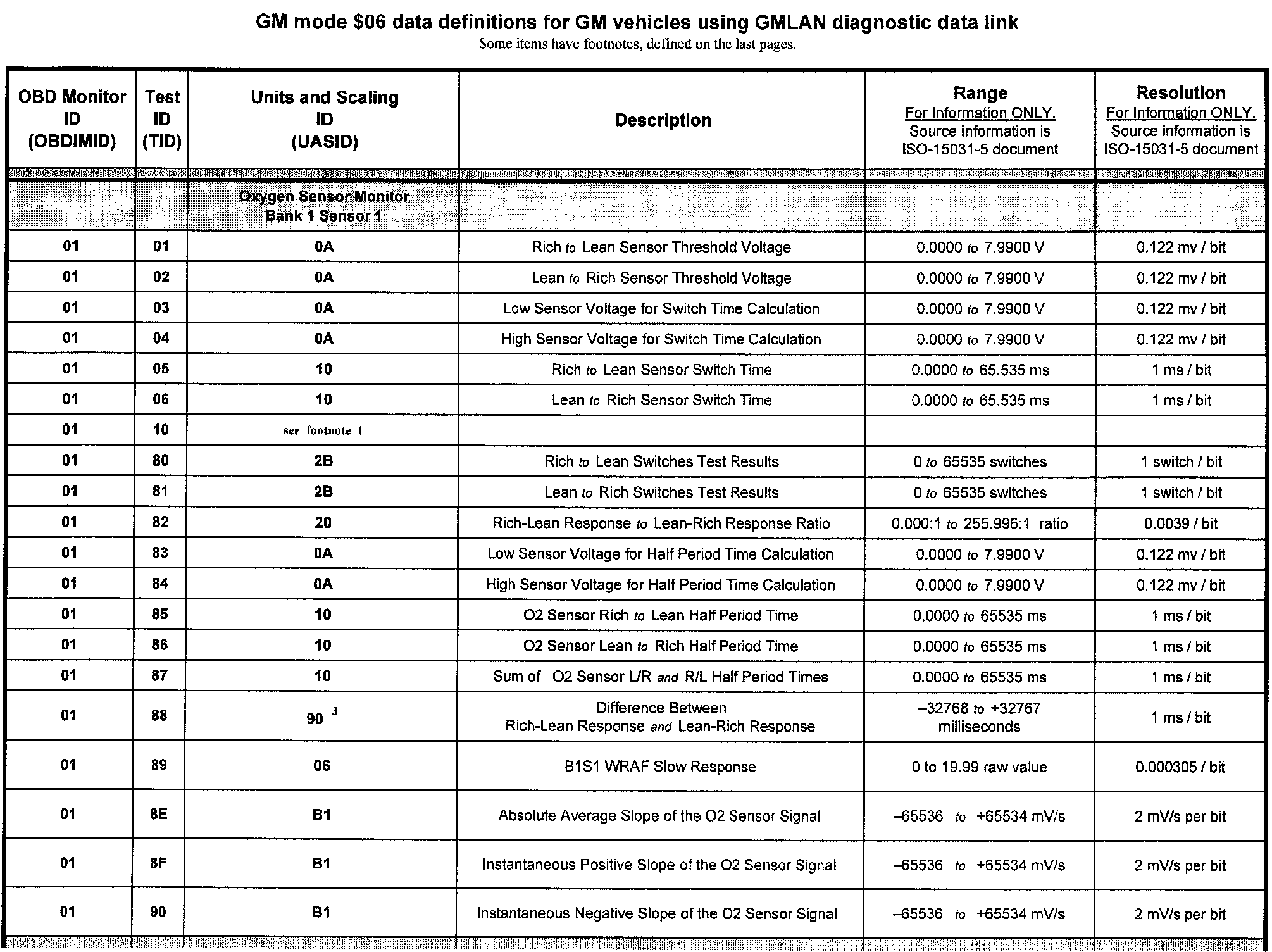

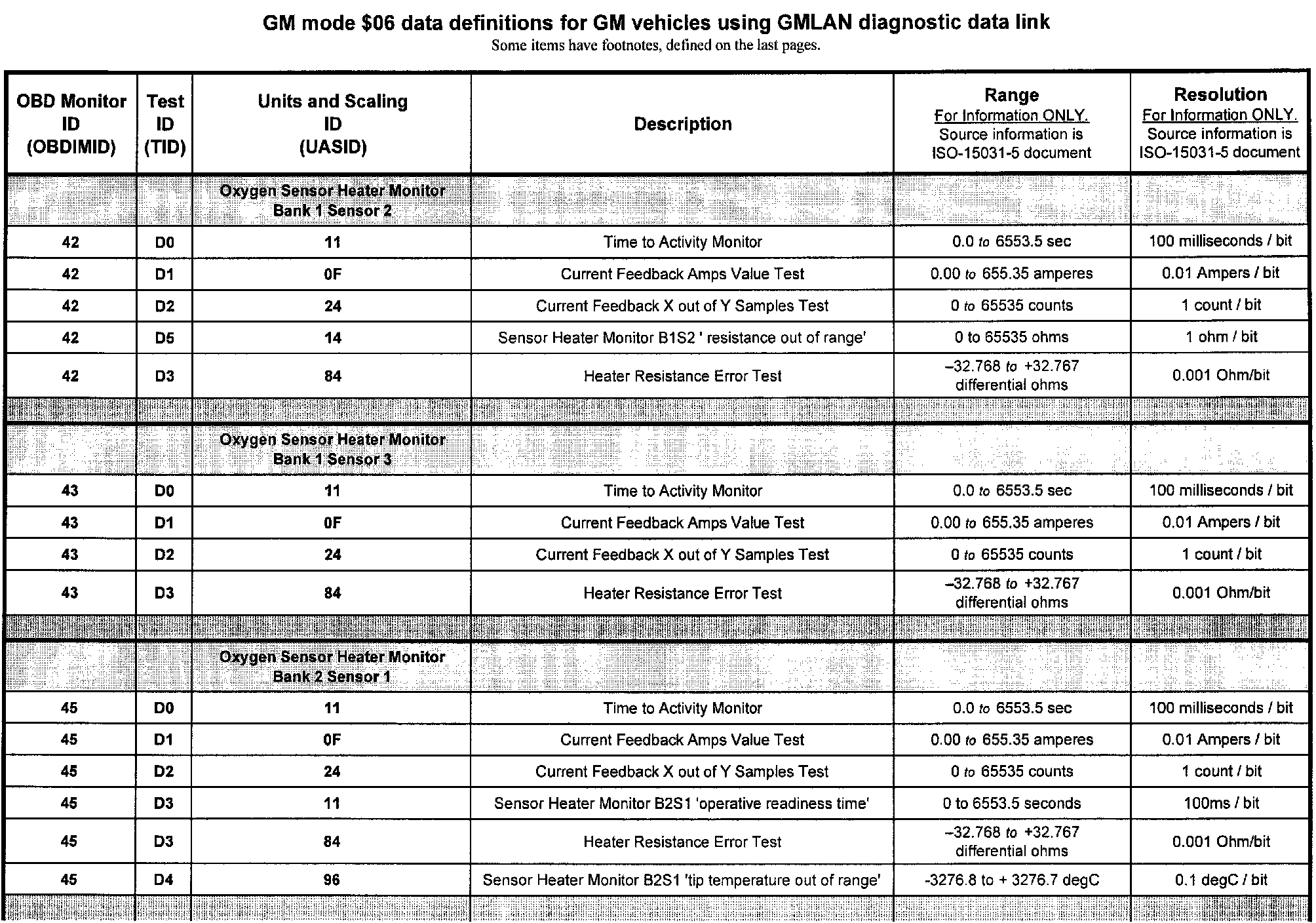

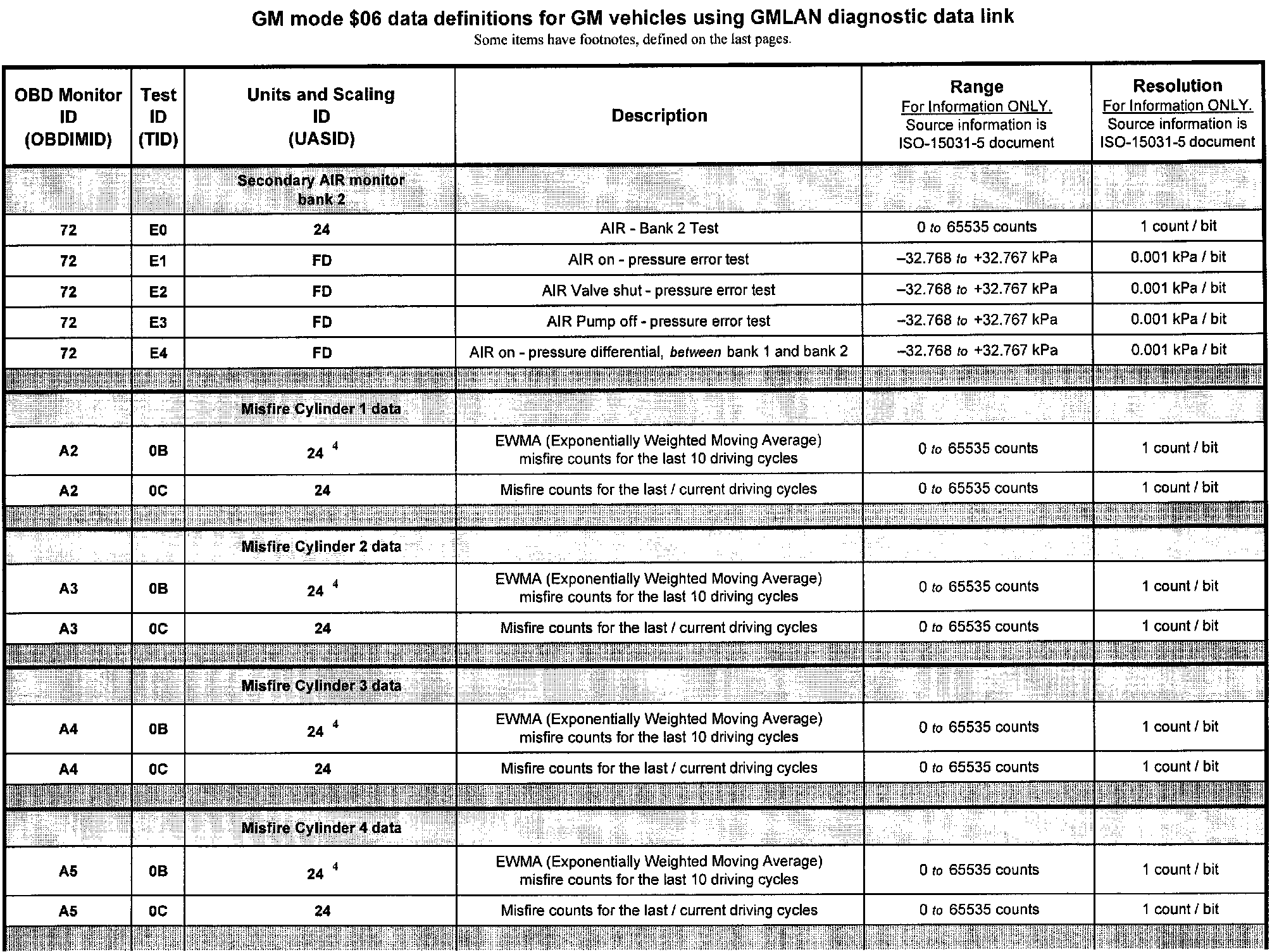

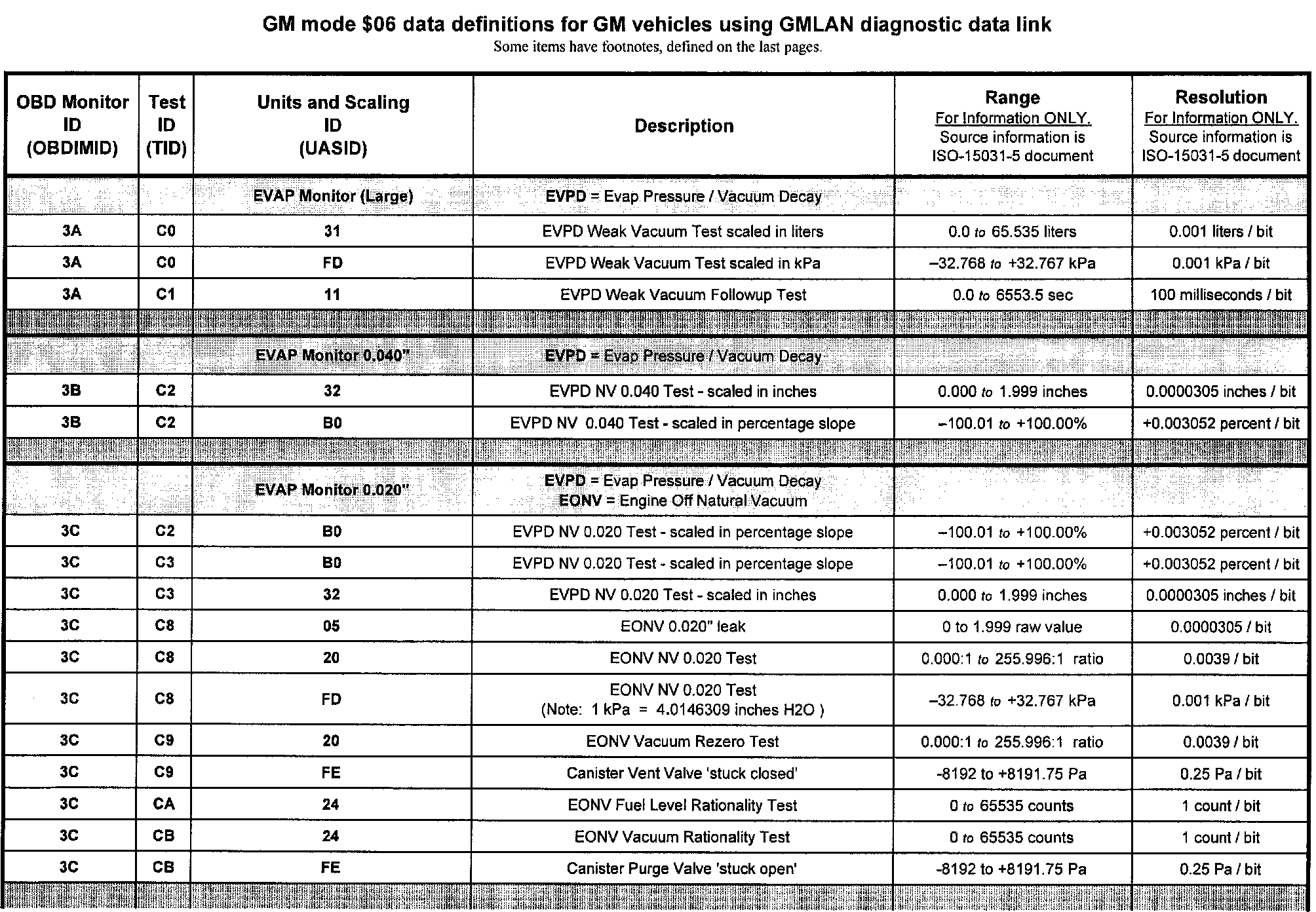

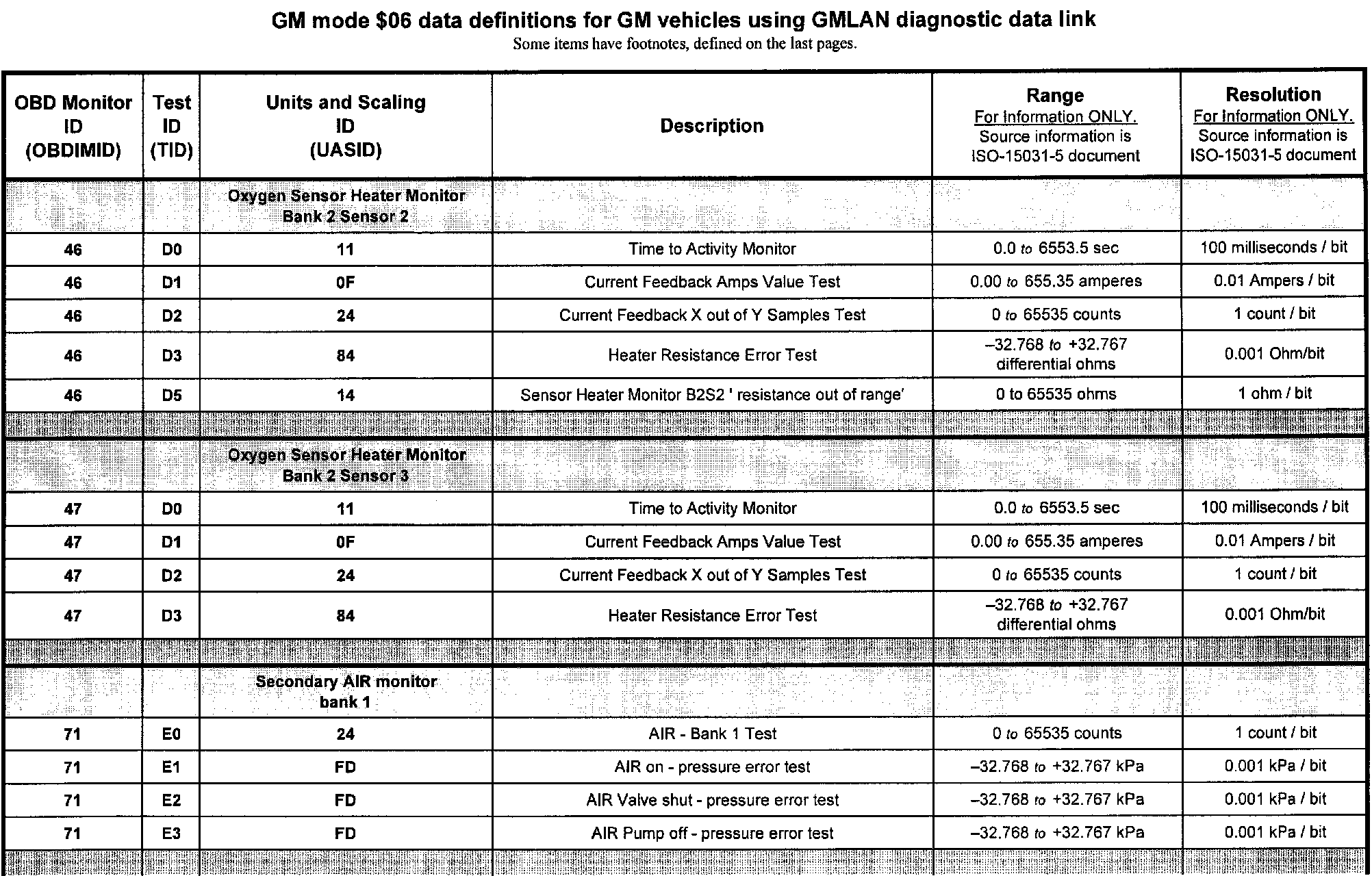

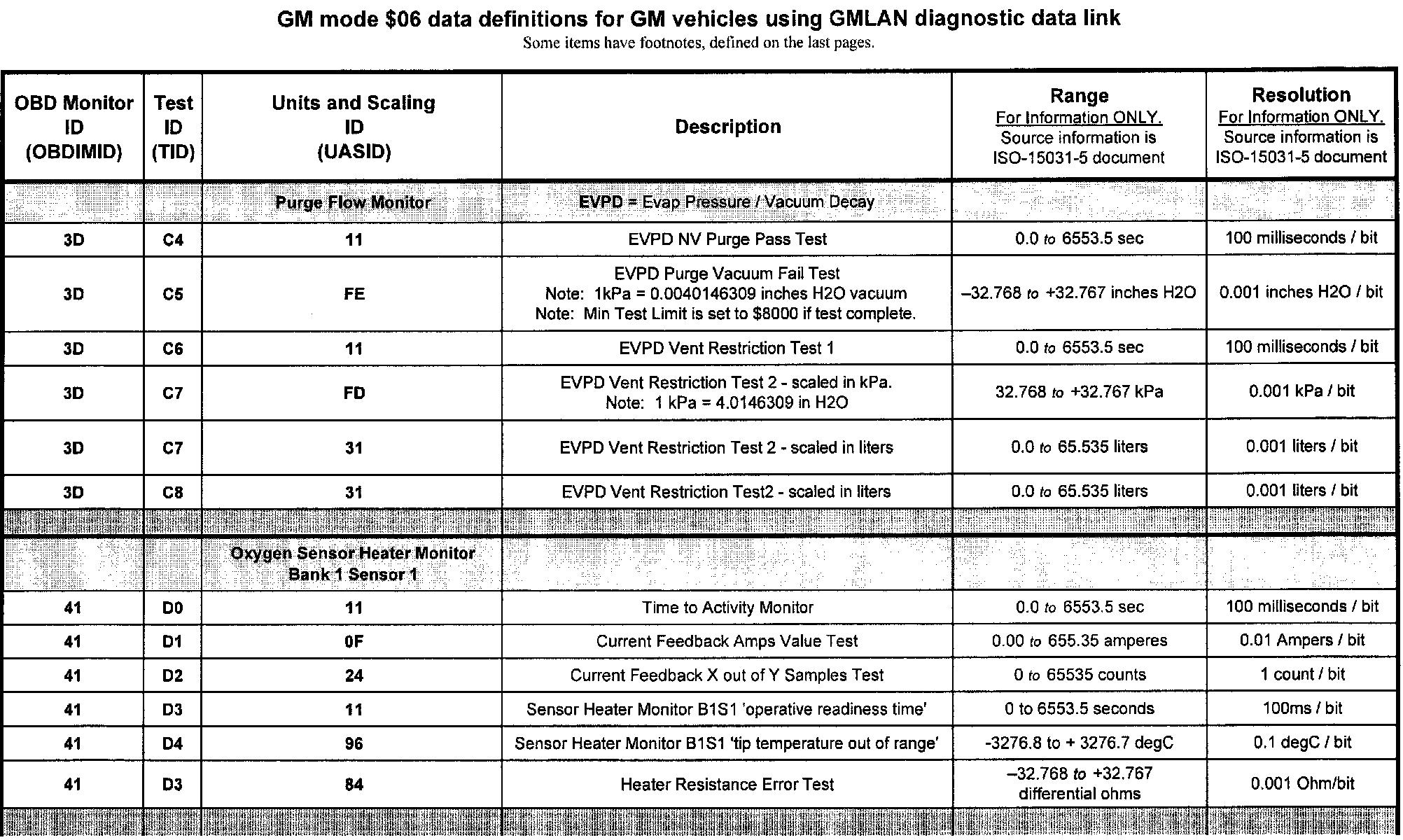

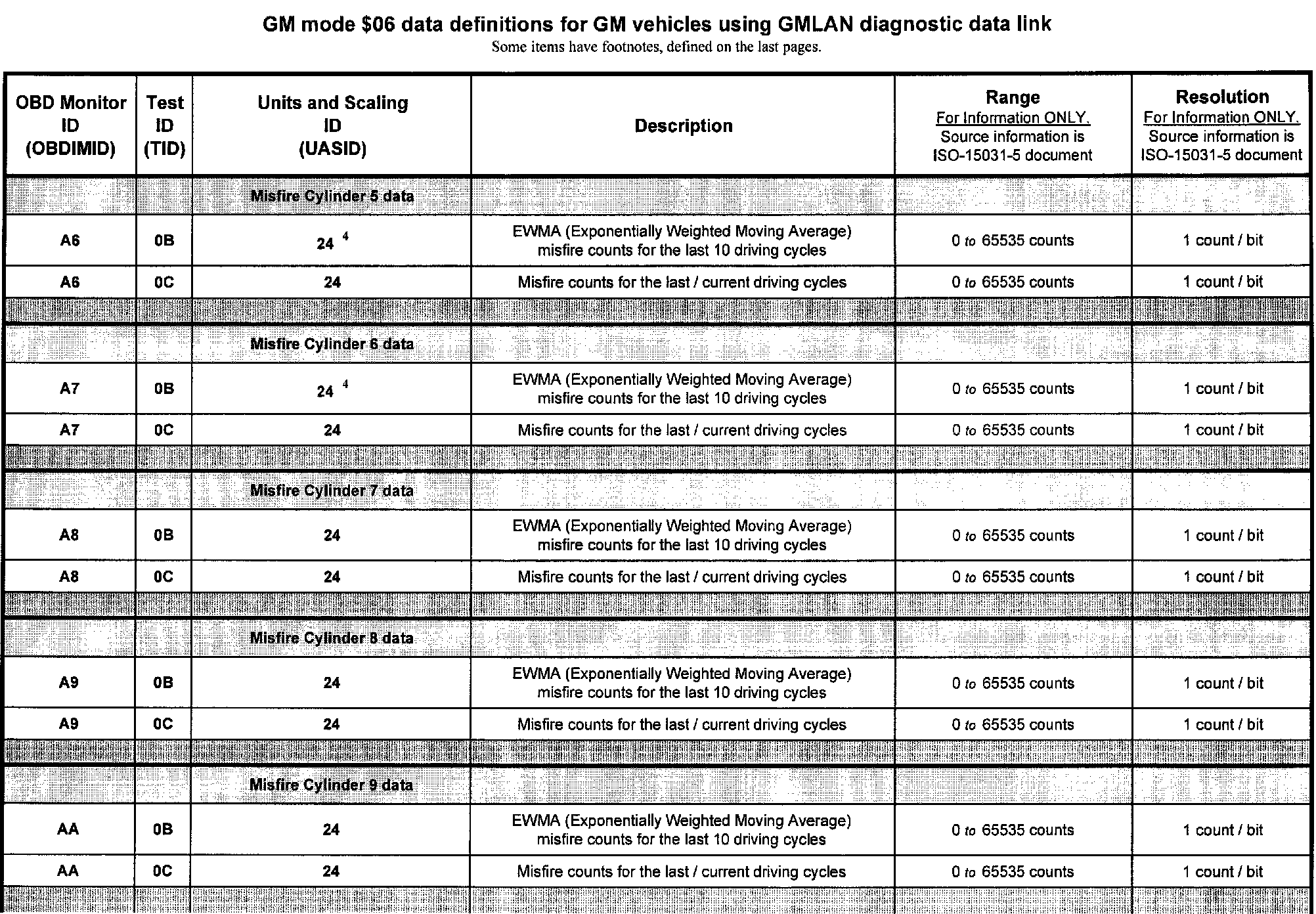

GMLAN Mode 6 Data Description Page 1:

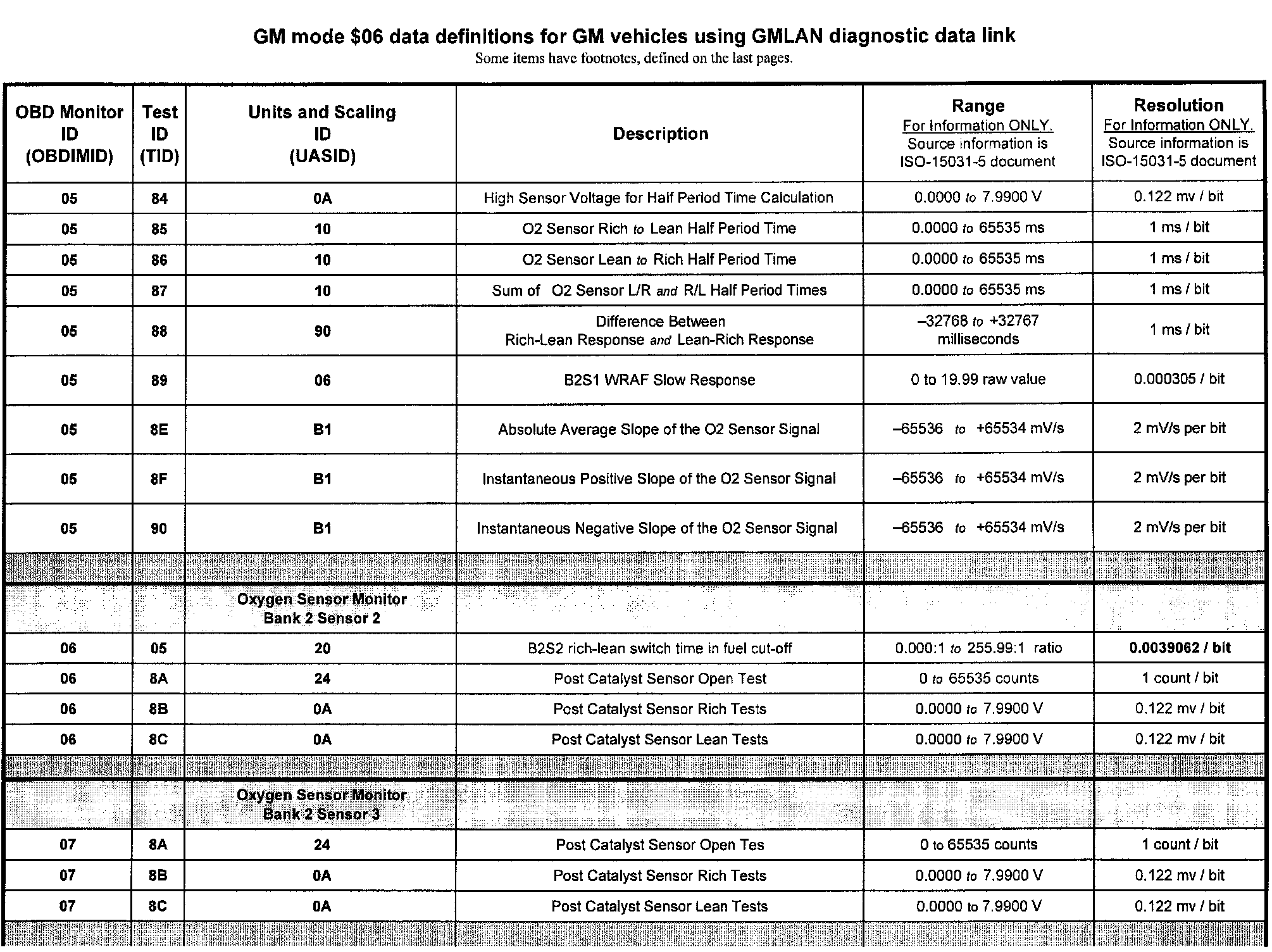

GMLAN Mode 6 Data Description Page 2:

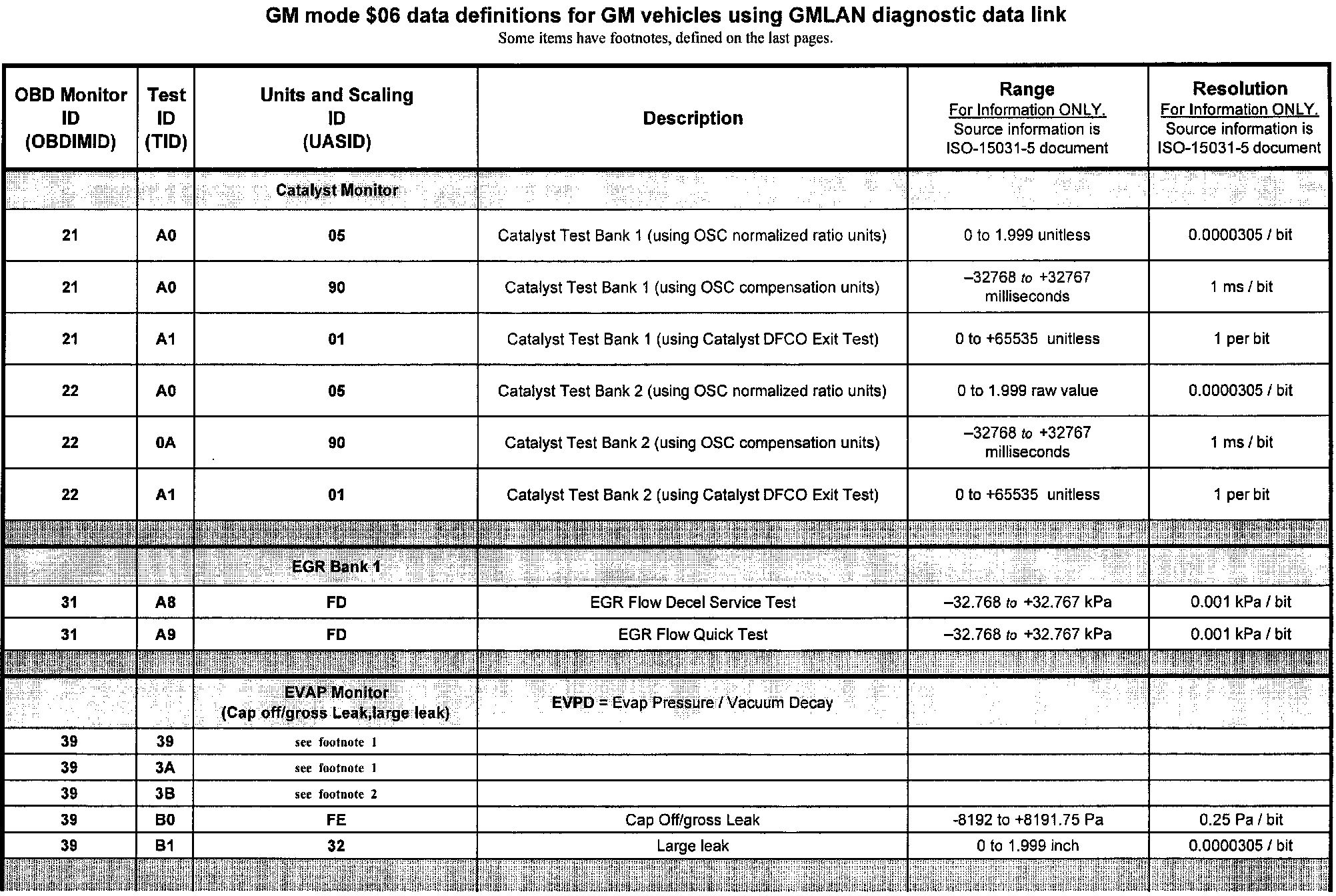

GMLAN Mode 6 Data Description Page 3:



GMLAN Mode 6 Data Description Page 4:



GMLAN Mode 6 Data Description Page 5:



GMLAN Mode 6 Data Description Page 6:



GMLAN Mode 6 Data Description Page 7:



GMLAN Mode 6 Data Description Page 8:



GMLAN Mode 6 Data Description Page 9:



GMLAN Mode 6 Data Description Page 10:



GMLAN Mode 6 Data Description Page 11:



GMLAN Mode 6 Data Description Page 12:

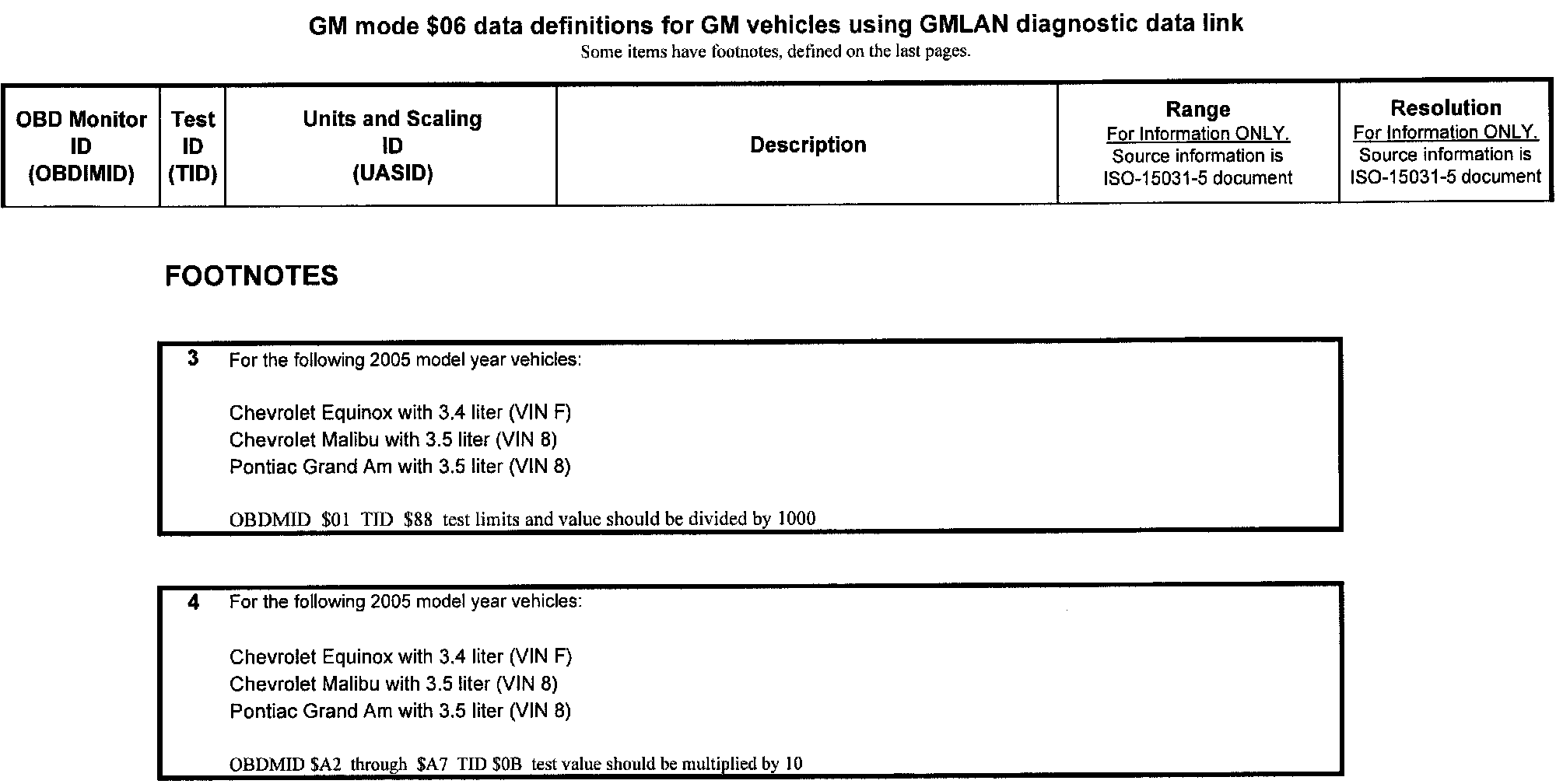

GMLAN Mode 6 Data Description Page 13:
