Engine Controls Schematics 11



Engine Controls Schematics

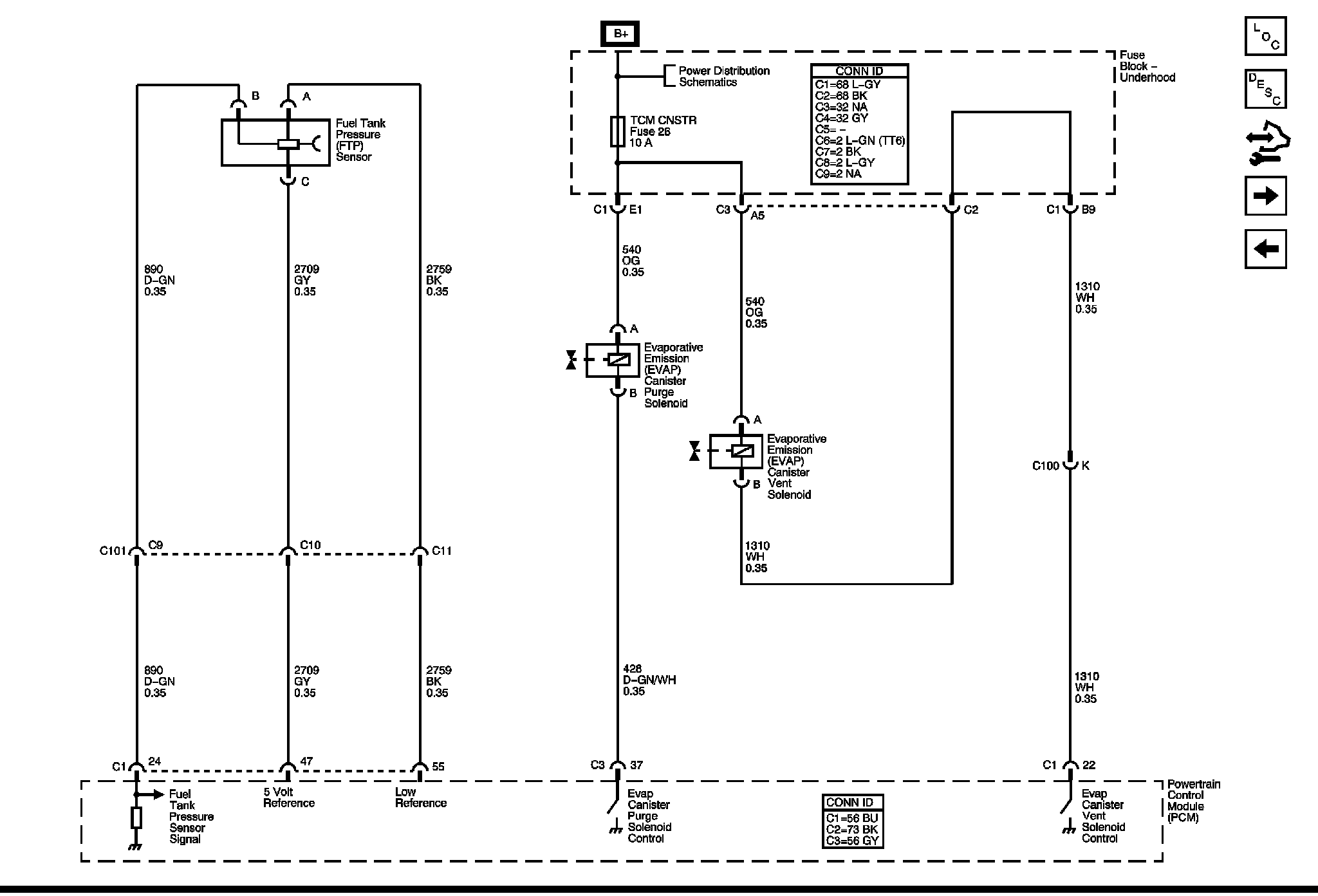

Fuel Controls - EVAP Controls






Next Diagram Engine Controls Schematics 12

Previous Diagram Engine Controls Schematics 10

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
