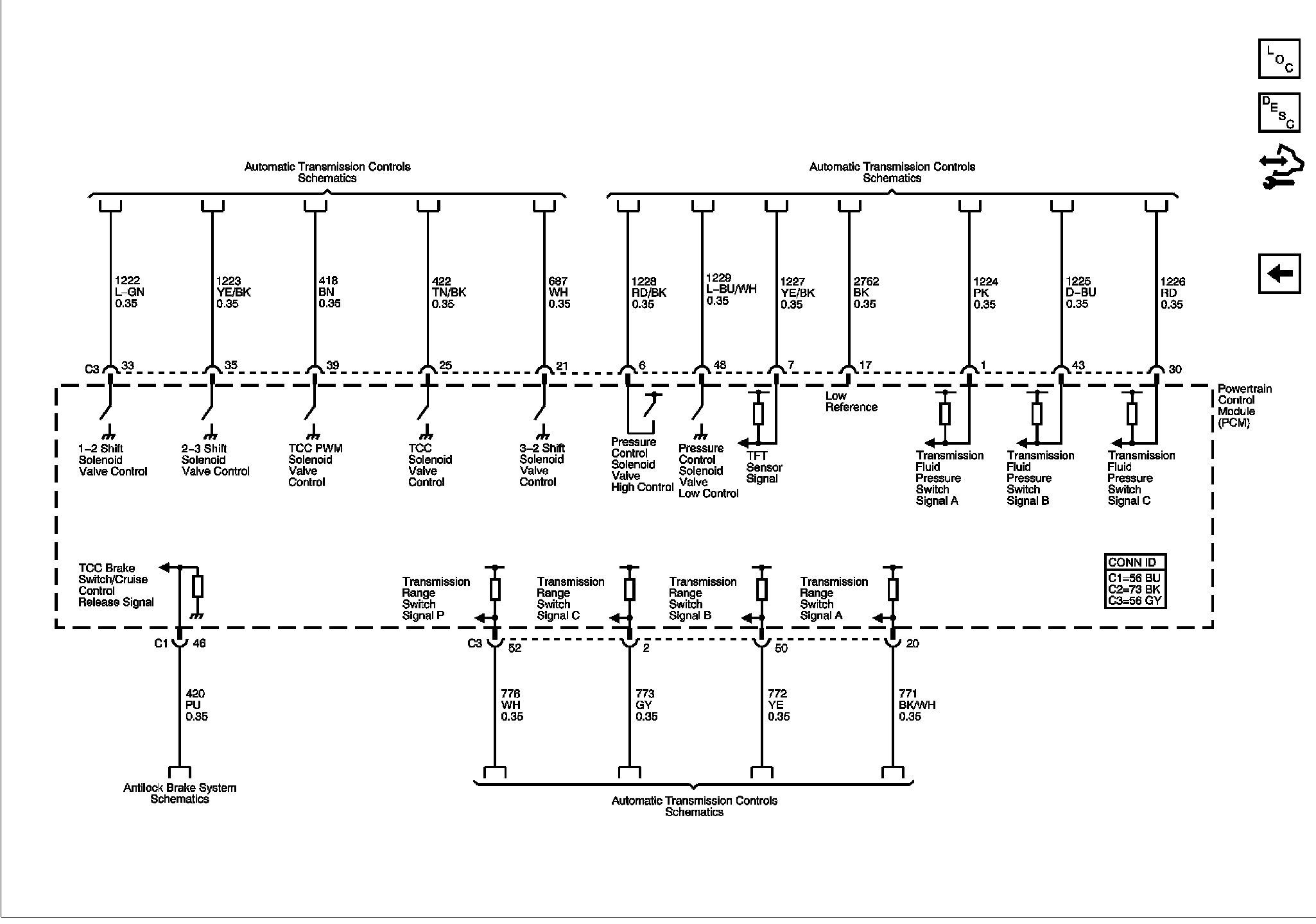

Engine Controls Schematics 14



Engine Controls Schematics

Transmission Control References - A/T






Previous Diagram Engine Controls Schematics 13

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
