Fluid Pressure Sensor/Switch, A/T

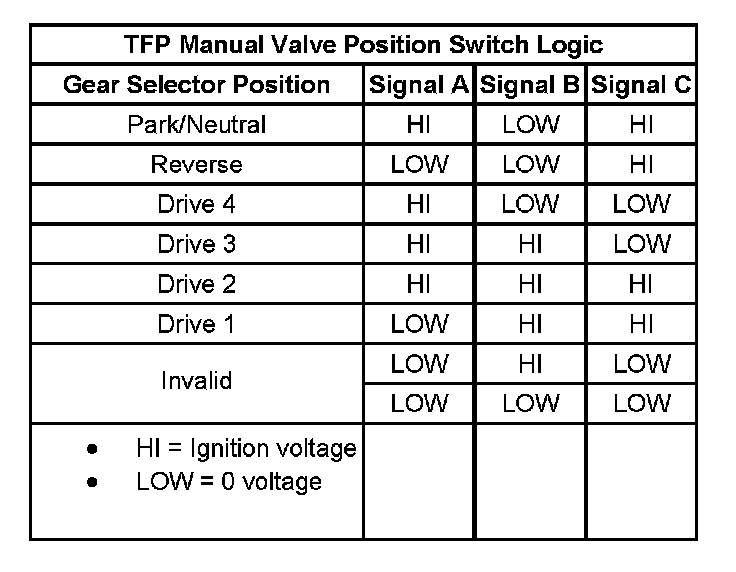

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic:
