System Specifications

Torque Specifications

Timing Cover

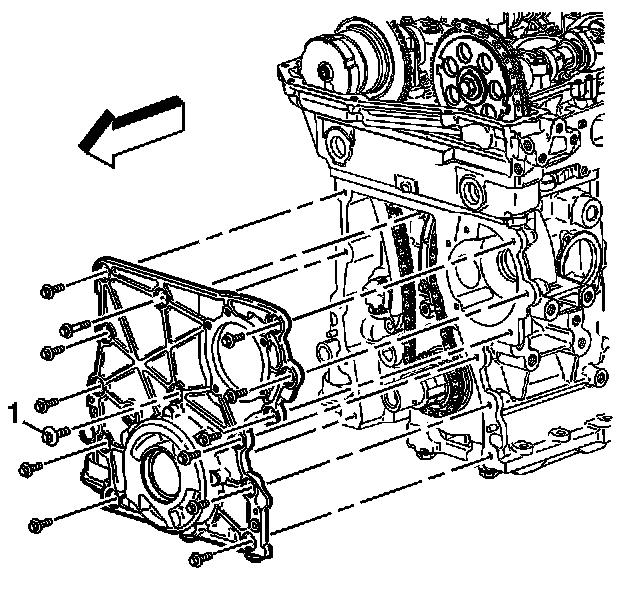

Engine Front Cover Bolt 10 Nm (89 in. lbs.)
Engine Front Cover Spacer Bolt 10 Nm (89 in. lbs.)

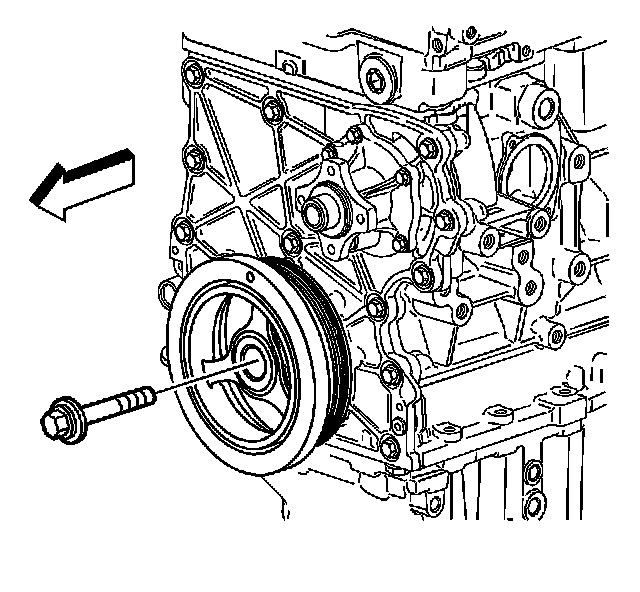

Crankshaft Balancer Bolt




^ First Pass 150 Nm (110.6 ft. lbs.)
^ Final Pass 180 degrees
