Timing Cover

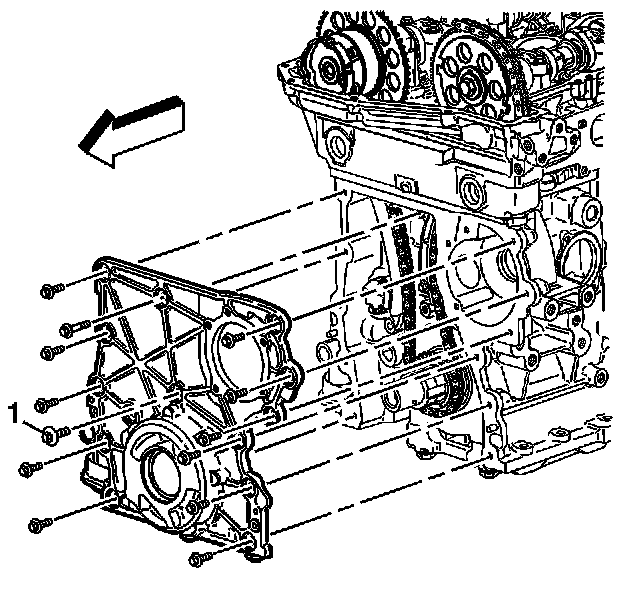

Engine Front Cover

Tighten the engine front cover bolts to 10 Nm (89 in. lbs.).
Tighten the small center bolt (1) last to 10 Nm (89 in. lbs.).
Engine Front Cover Spacer Bolt 10 Nm (89 in. lbs.)
Engine Front Lift Bracket Bolt 50 Nm (37 ft. lbs.)
