Control Module: Locations



Automatic Transmission Electronic Component Views

Transmission Control Module (TCM)

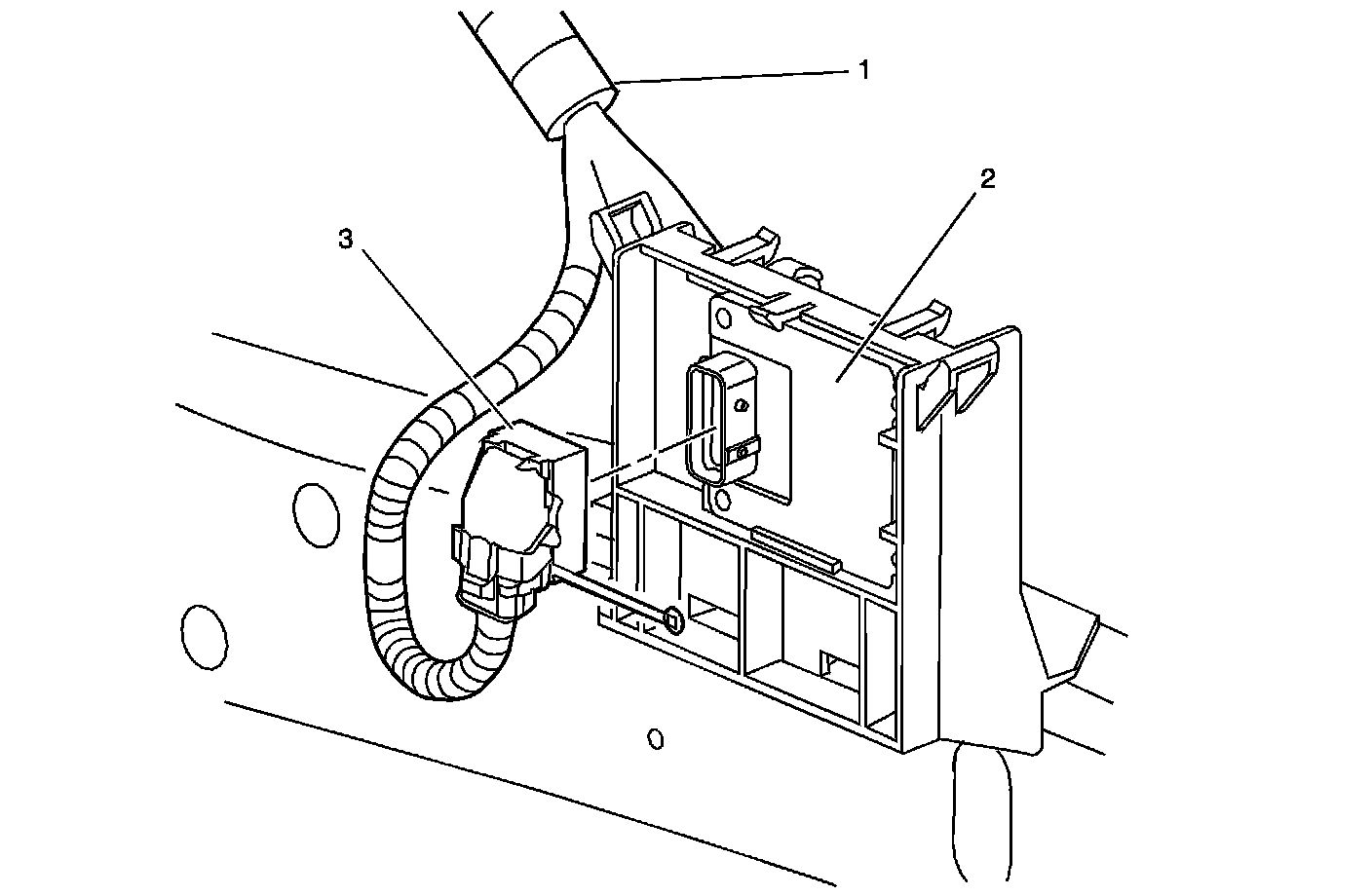

Transmission Control Module (TCM):




1 - Engine Harness
2 - Transmission Control Module (TCM)
3 - Transmission Control Module (TCM) Connector Harness
