Control Module: Locations

Transfer Case Control Component Views

Instrument Carrier Support, Lower Left

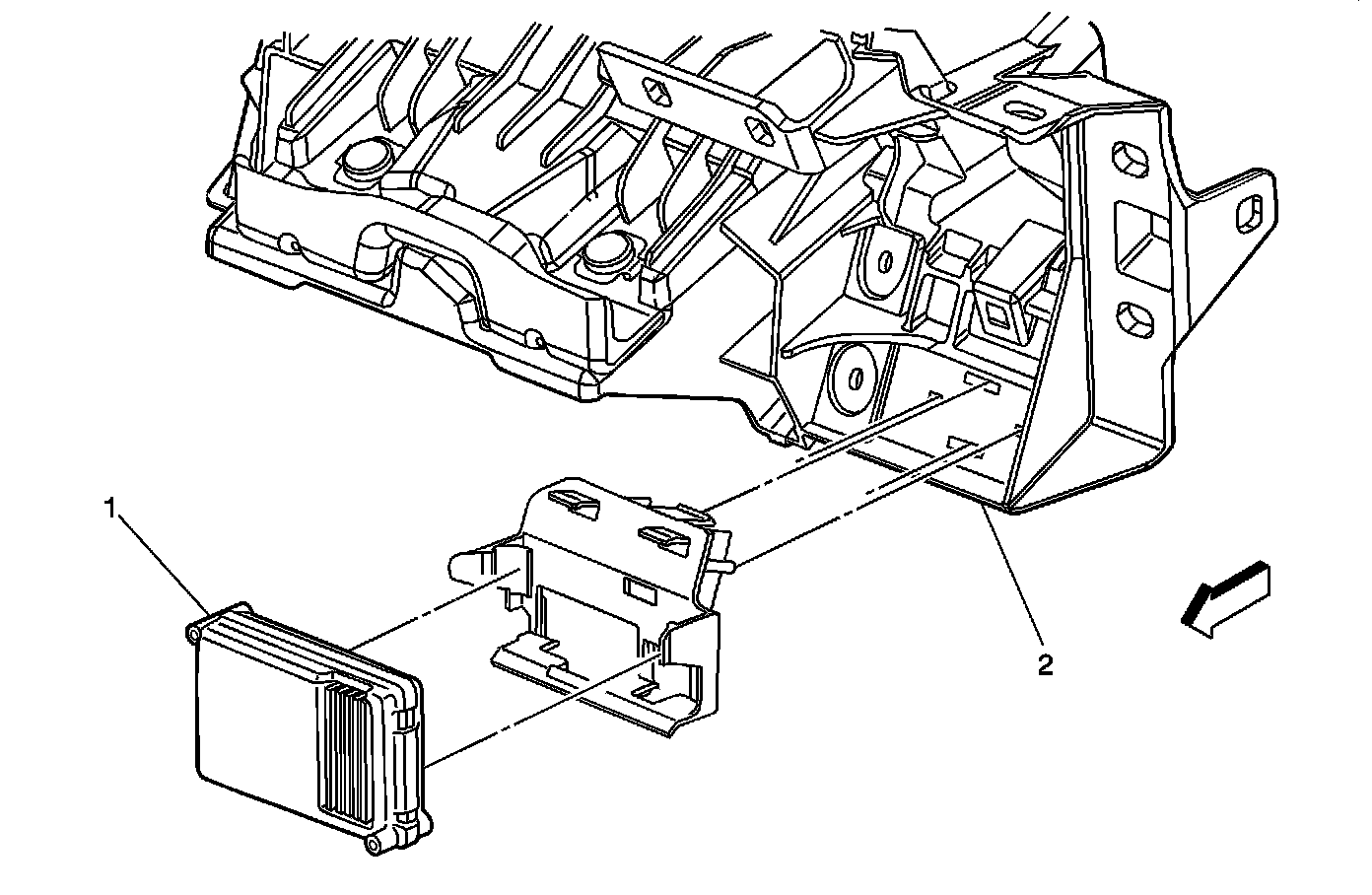

Instrument Carrier Support, Lower Left:

1 - Transfer Case Shift Control Module
2 - Instrument Carrier Support, Left Side

Transfer Case

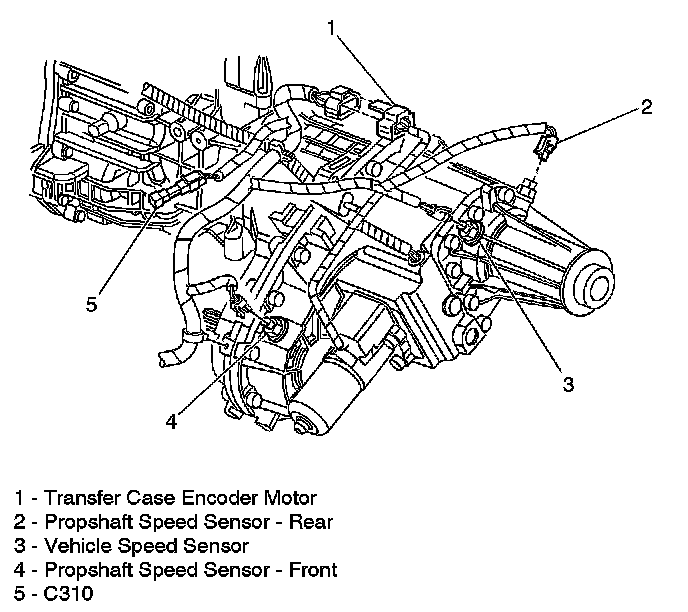

Left Side Of The Transfer Case - Rear:

1 - Transfer Case Encoder Motor Connector
2 - Propshaft Speed Sensor - Rear
3 - Vehicle Speed Sensor (VSS)
4 - Propshaft Speed Sensor - Front
5 - C310
