Power Window Motor



Component Connector End Views

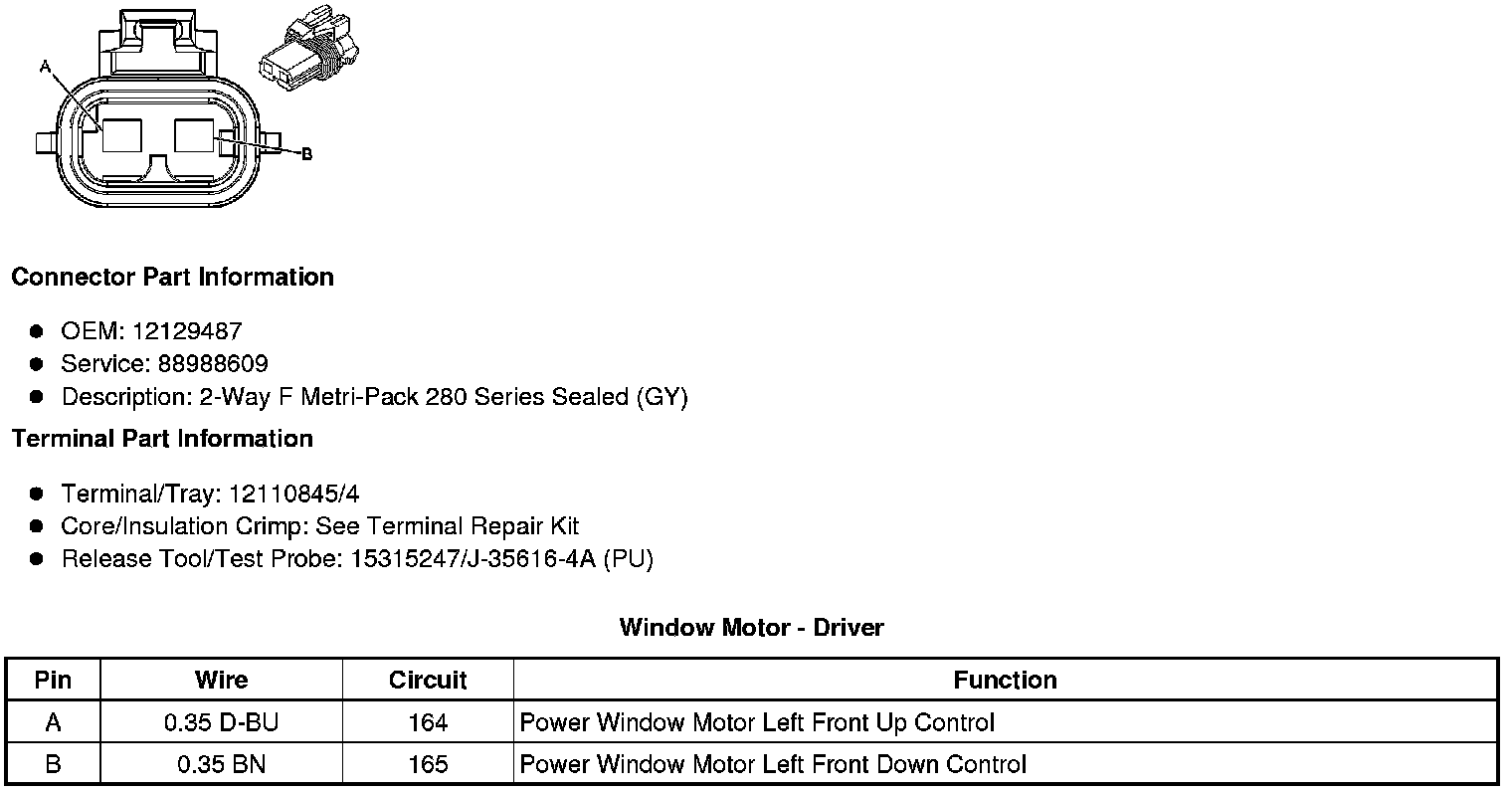

Window Motor - Driver





Window Motor - Front Passenger





Window Motor - Left Rear

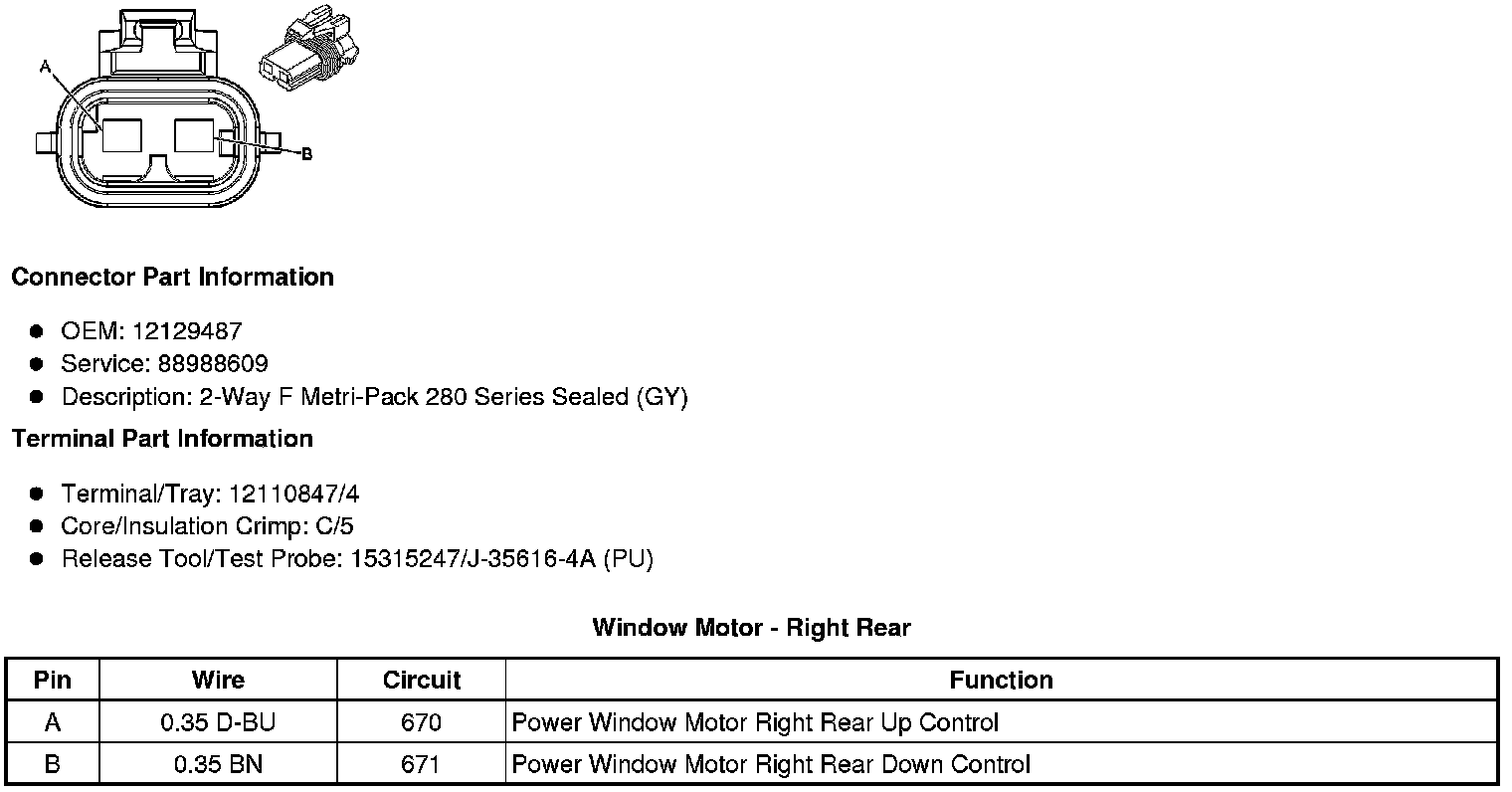

Window Motor - Right Rear
