Body Control Systems
Body Control System Schematics

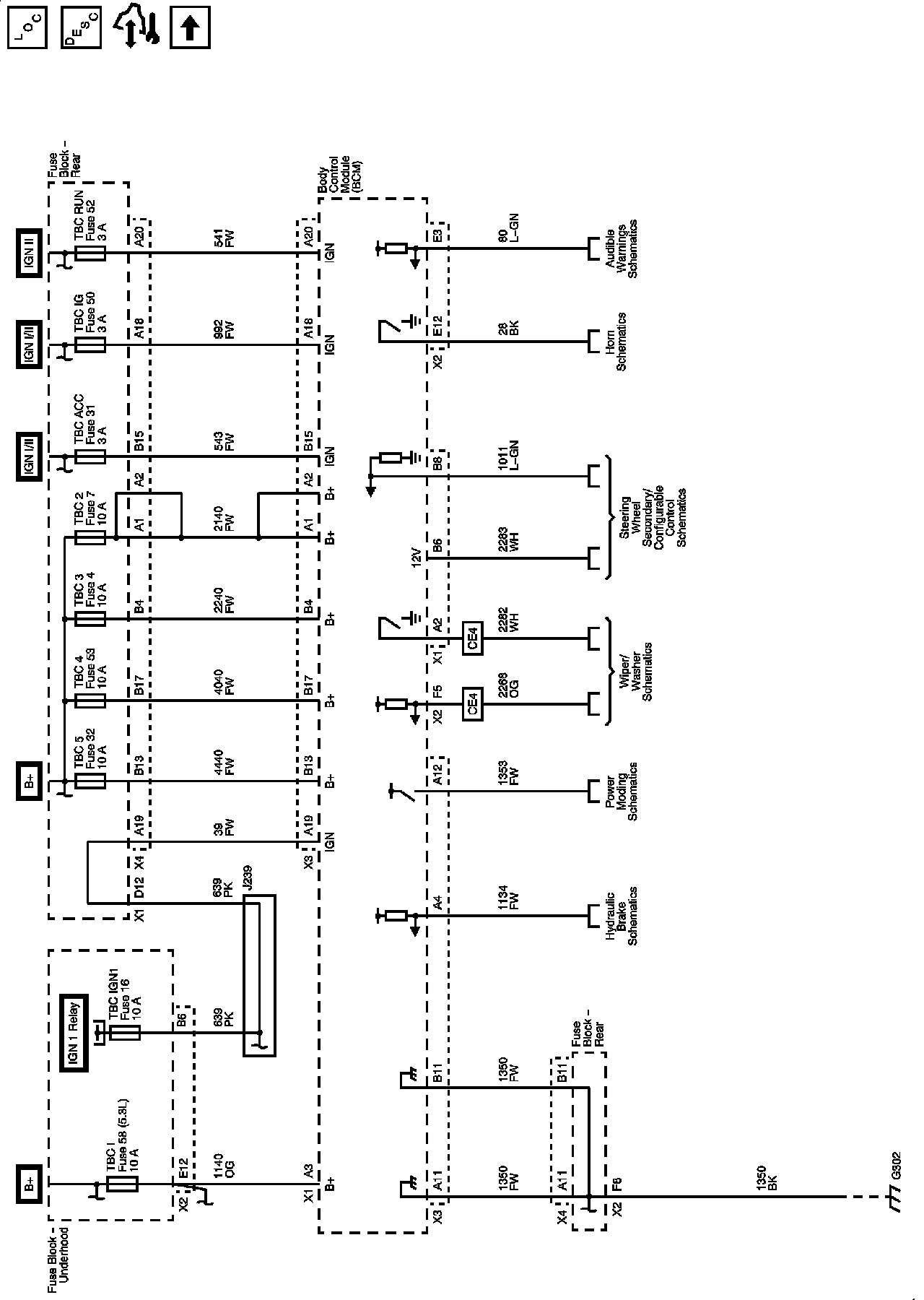

BCM Module Power and Ground
BCM Controlled/Monitored Subsystem References - 1 of 3
BCM Controlled/Monitored Subsystem References - 2 of 3
BCM Controlled/Monitored Subsystem References - 3 of 3
Body Control System Schematics
BCM Module Power and Ground
BCM Controlled/Monitored Subsystem References - 1 of 3
BCM Controlled/Monitored Subsystem References - 2 of 3
BCM Controlled/Monitored Subsystem References - 3 of 3
