Door Control Module Schematics



Door Control Module Schematics

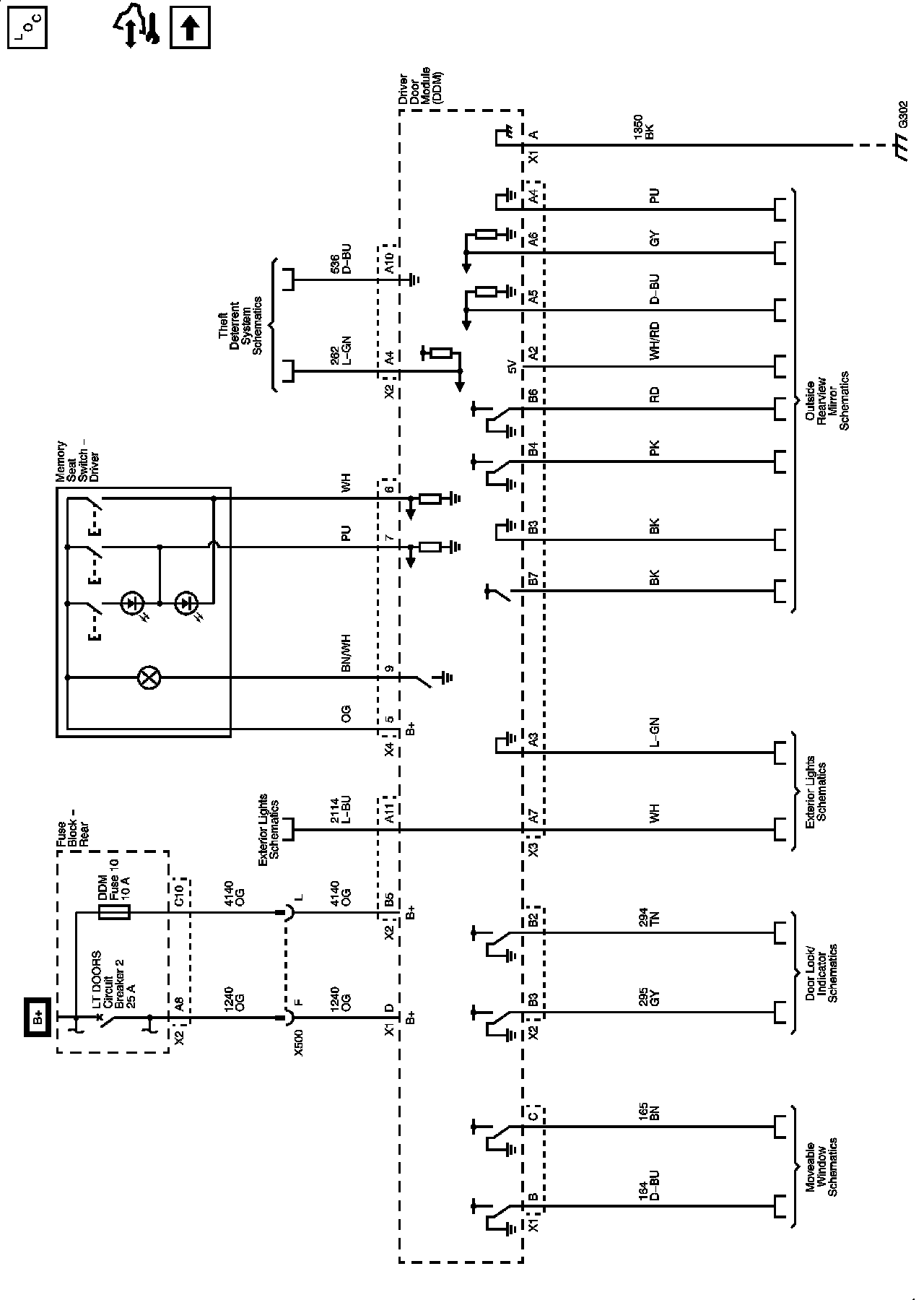

Power, Ground, and Subsystem References

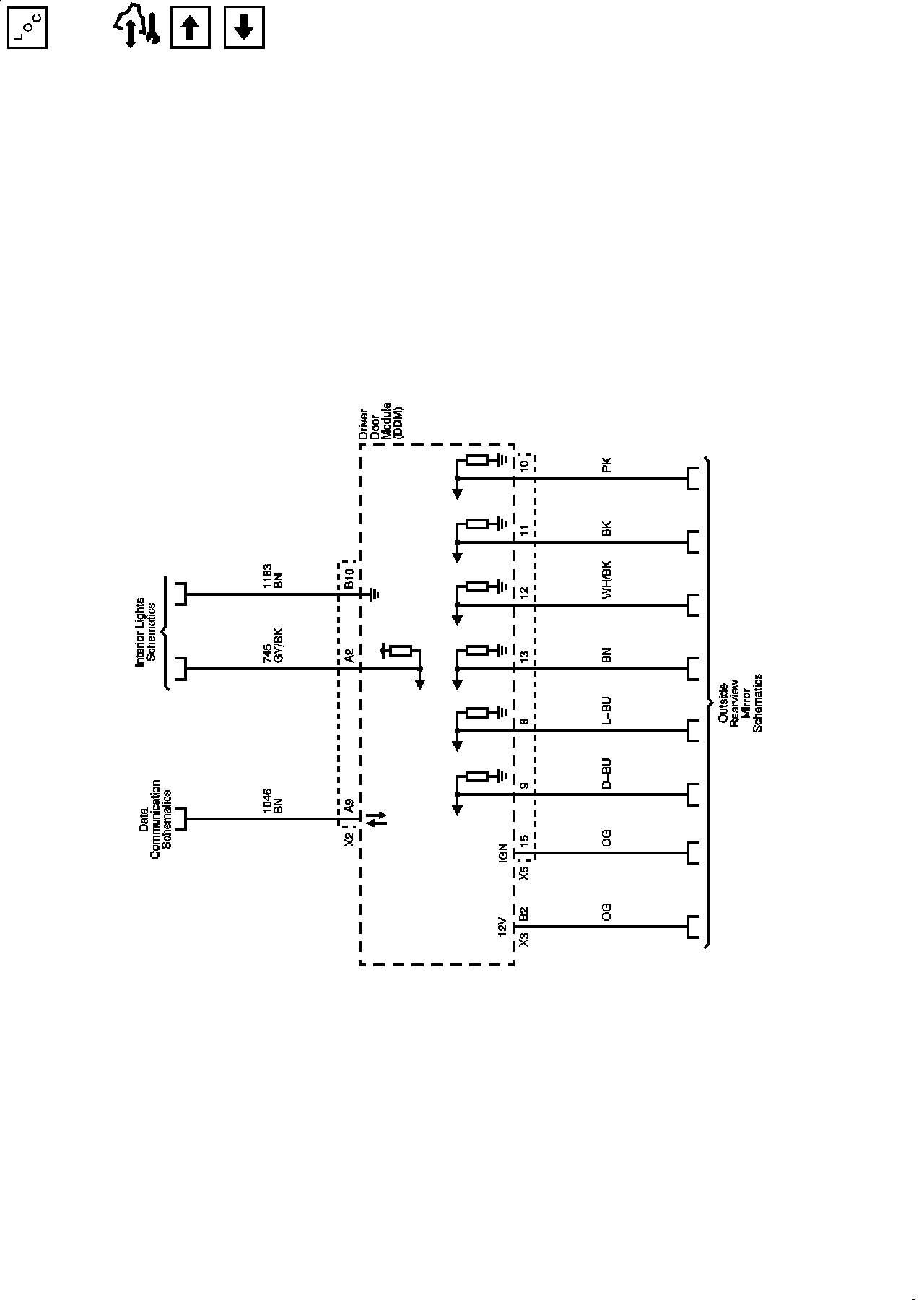

Serial Data and Subsystem References

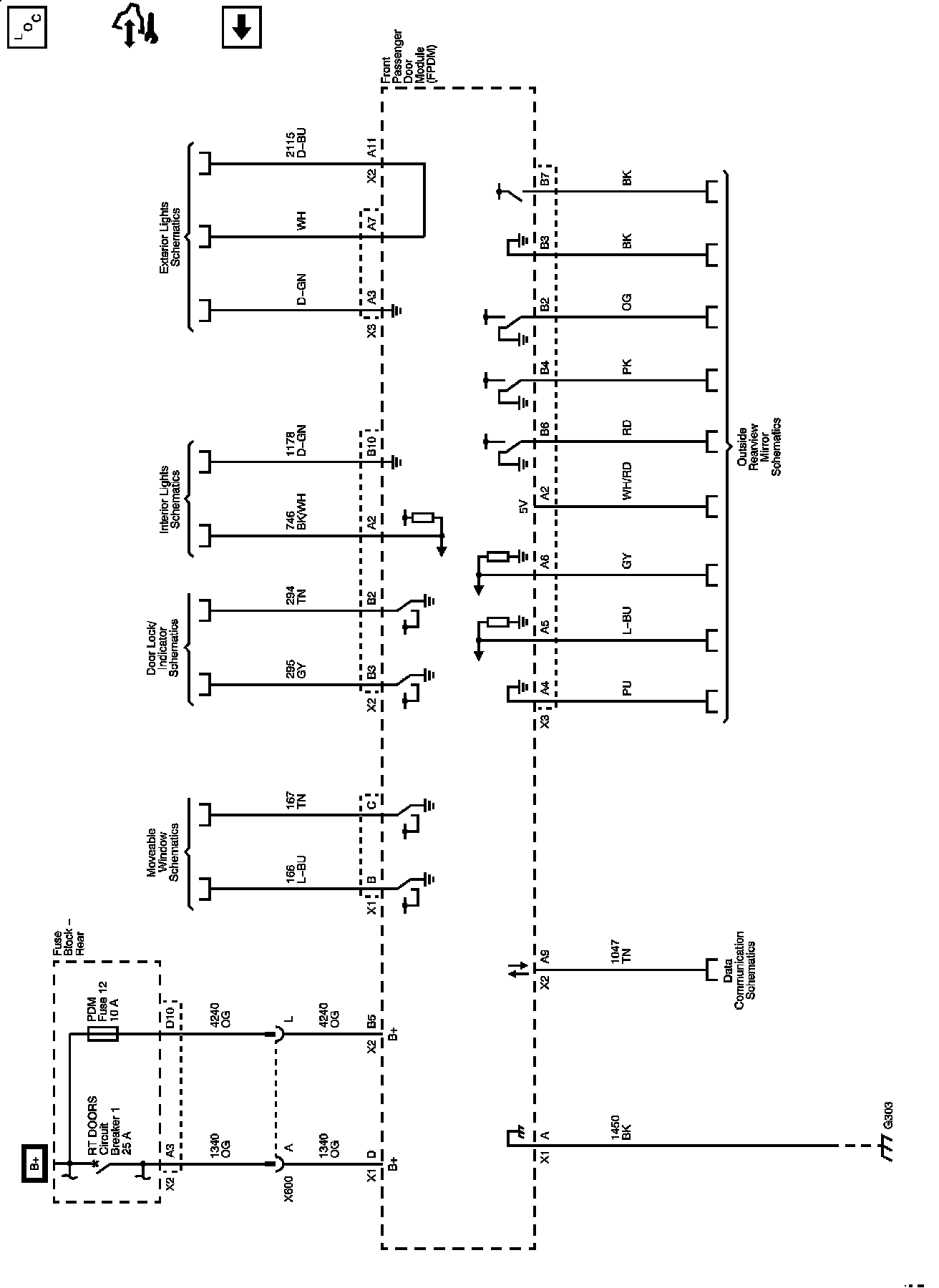

Front Passenger
