Door Control Module Schematics




Door Control Module Schematics

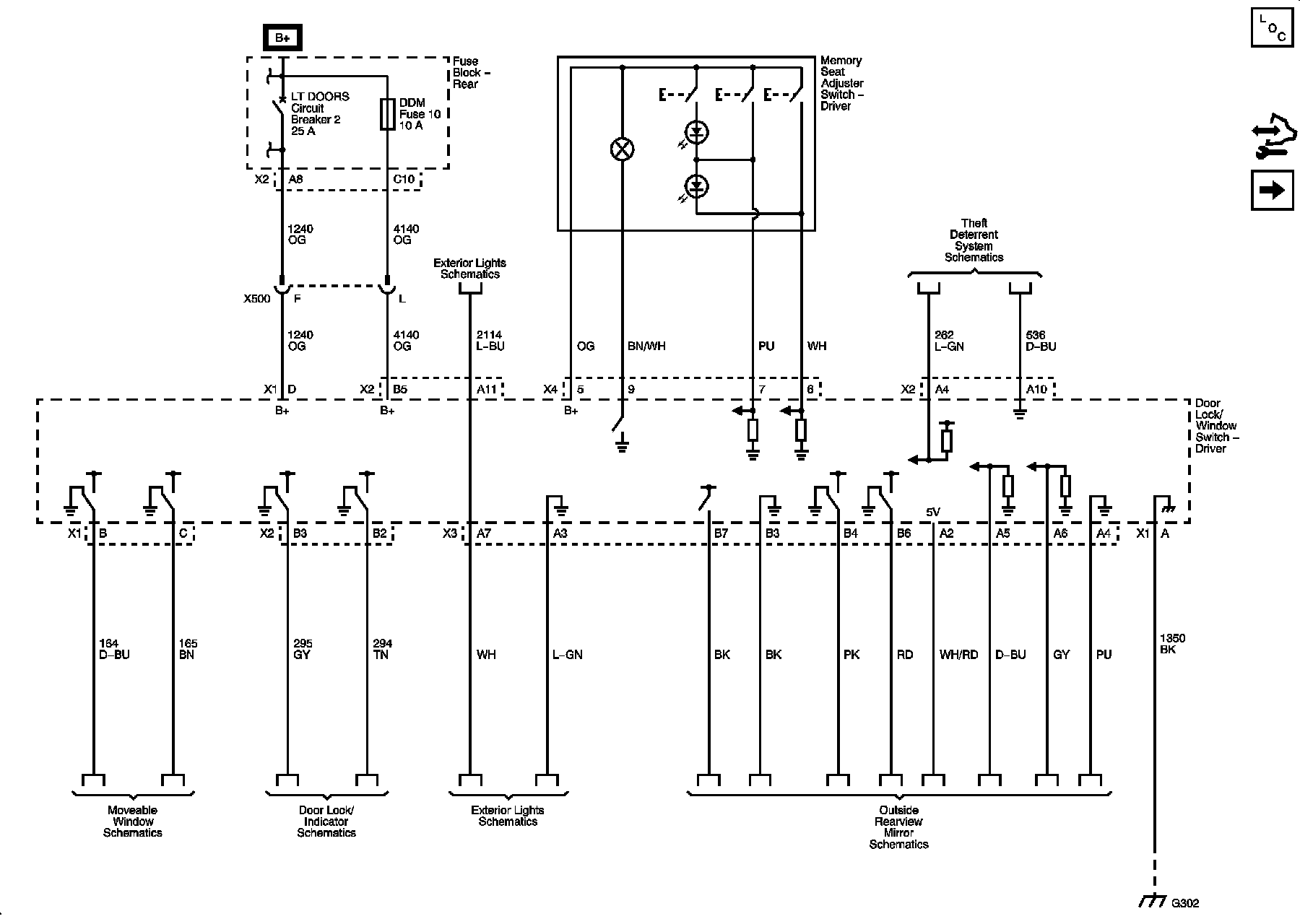

Power, Ground, and Subsystem References





Serial Data and Subsystem References





Front Passenger
