Memory Positioning Switch: Locations

Door Component Views

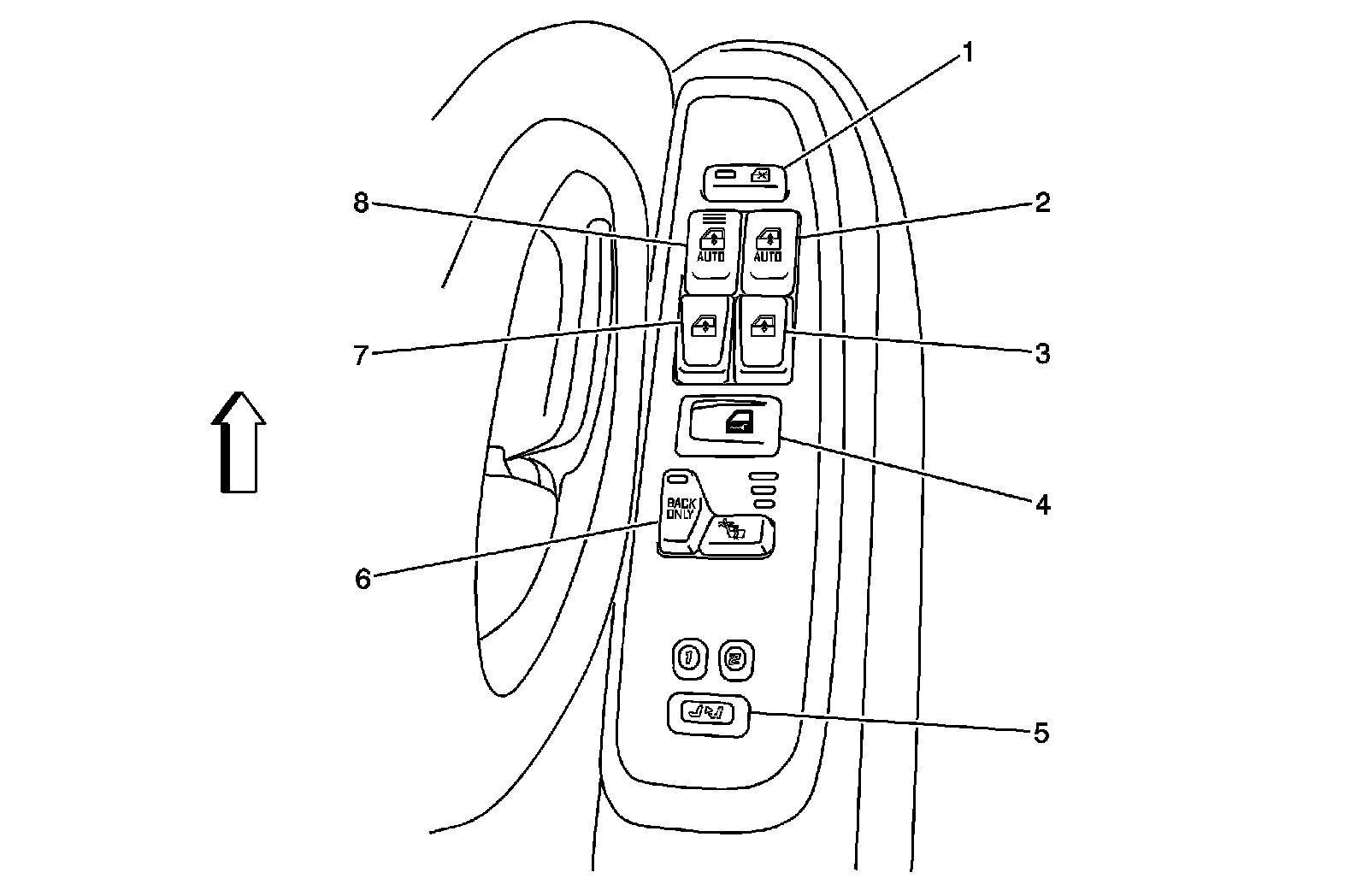

Driver Door Components 2 of 2




1 - Window Lockout Switch
2 - Passenger Window Switch
3 - Right Rear Window Switch
4 - Door Lock Switch - Driver
5 - Memory Seat Switch - Driver (w/Memory)
6 - Heated Seat Switch - Driver (w/Heat)
7 - Left Rear Window Switch
8 - Driver Window Switch
