Air Flow Meter/Sensor

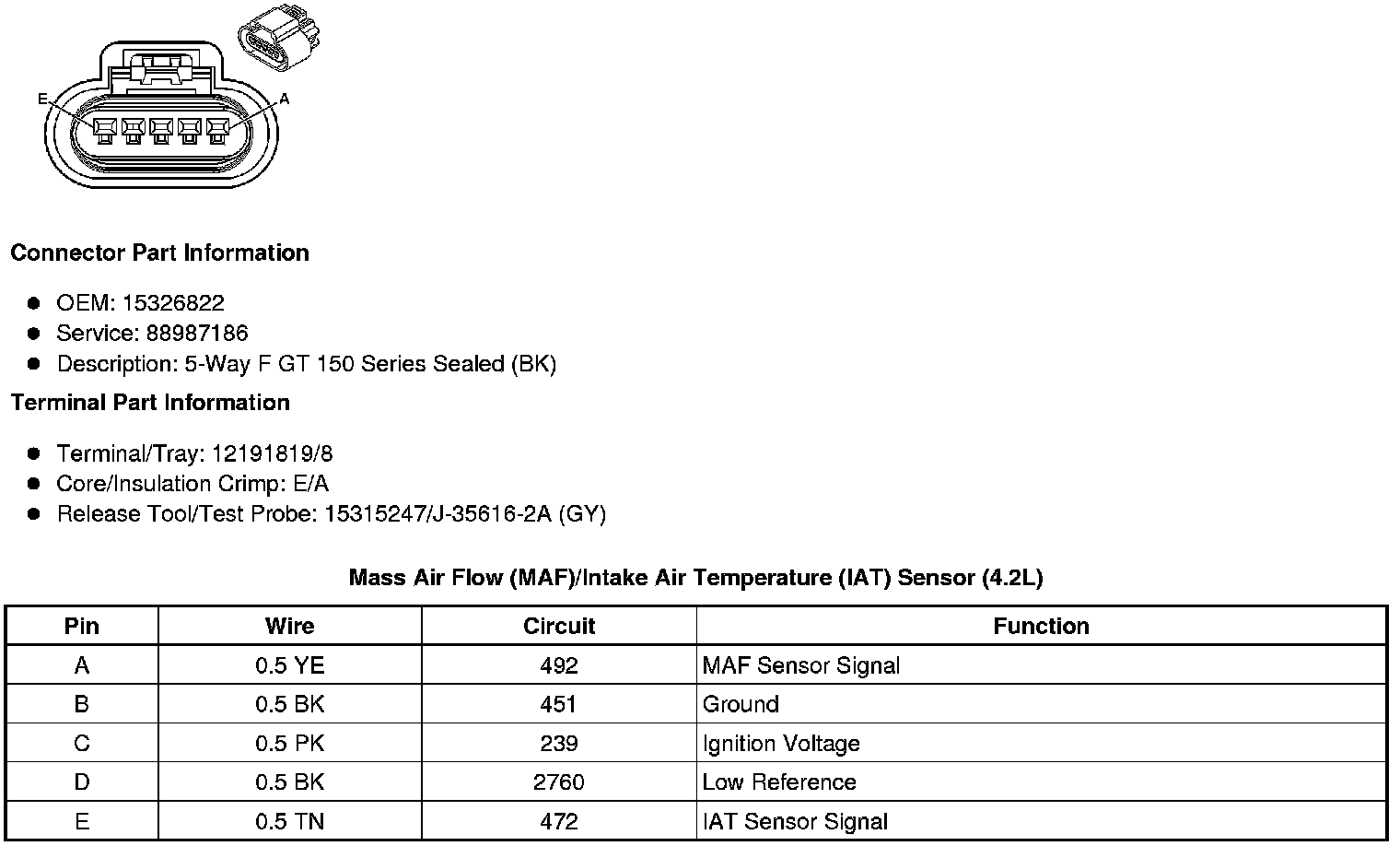

Component Connector End Views
Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (4.2L)
