Alarm Module, (Vehicle Antitheft)




Component Connector End Views

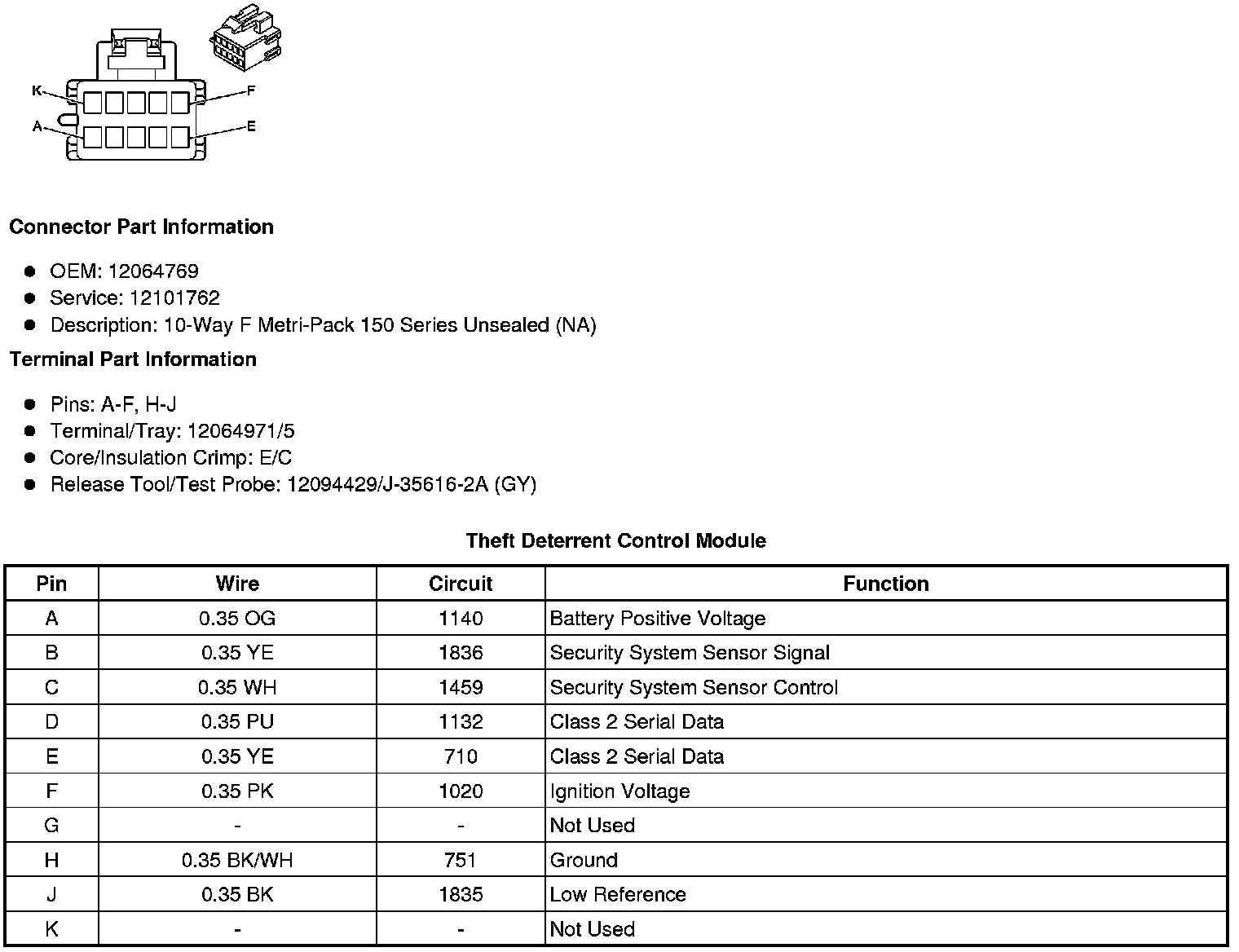

Theft Deterrent Control Module

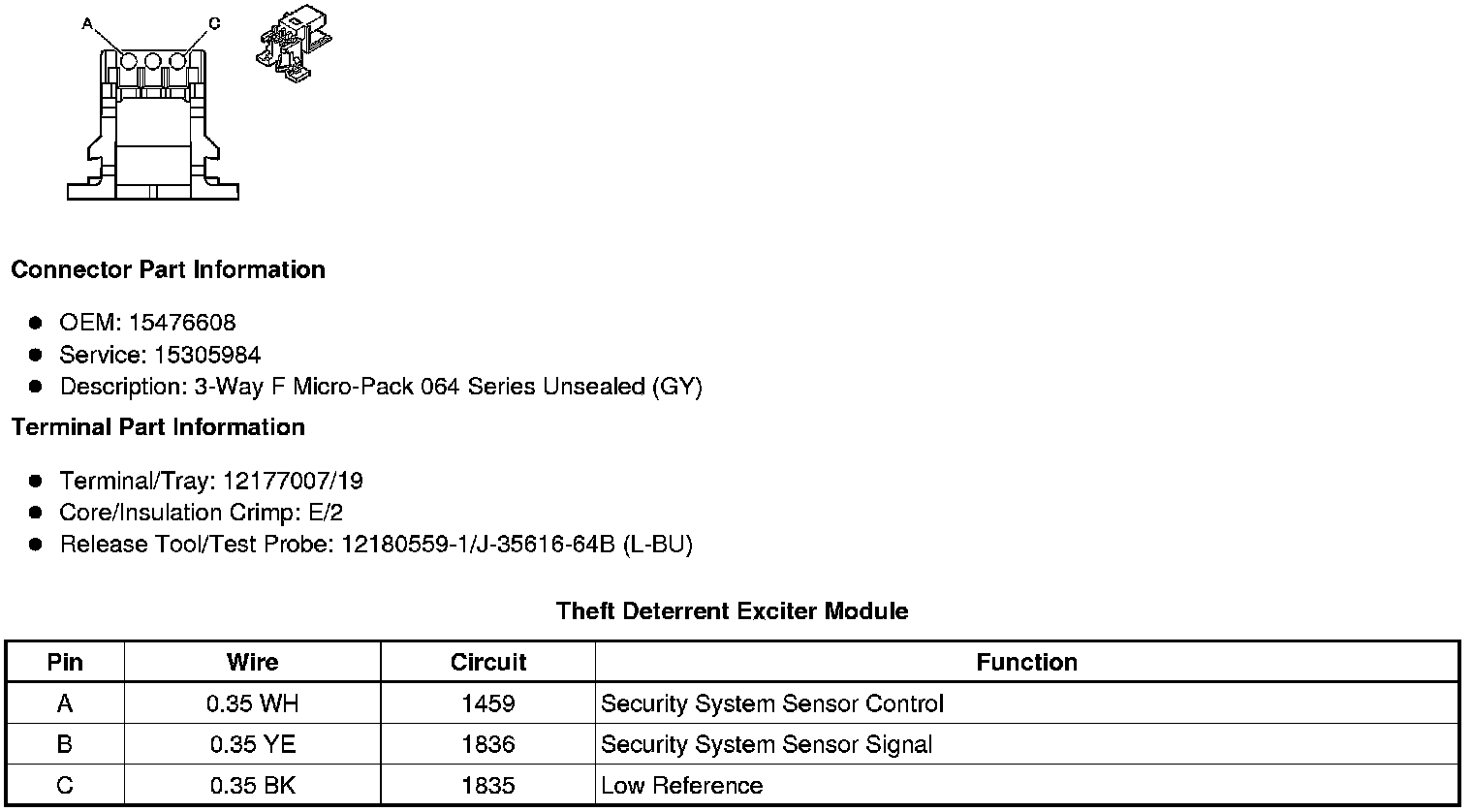

Theft Deterrent Exciter Module
