Power Seat Switch




Component Connector End Views

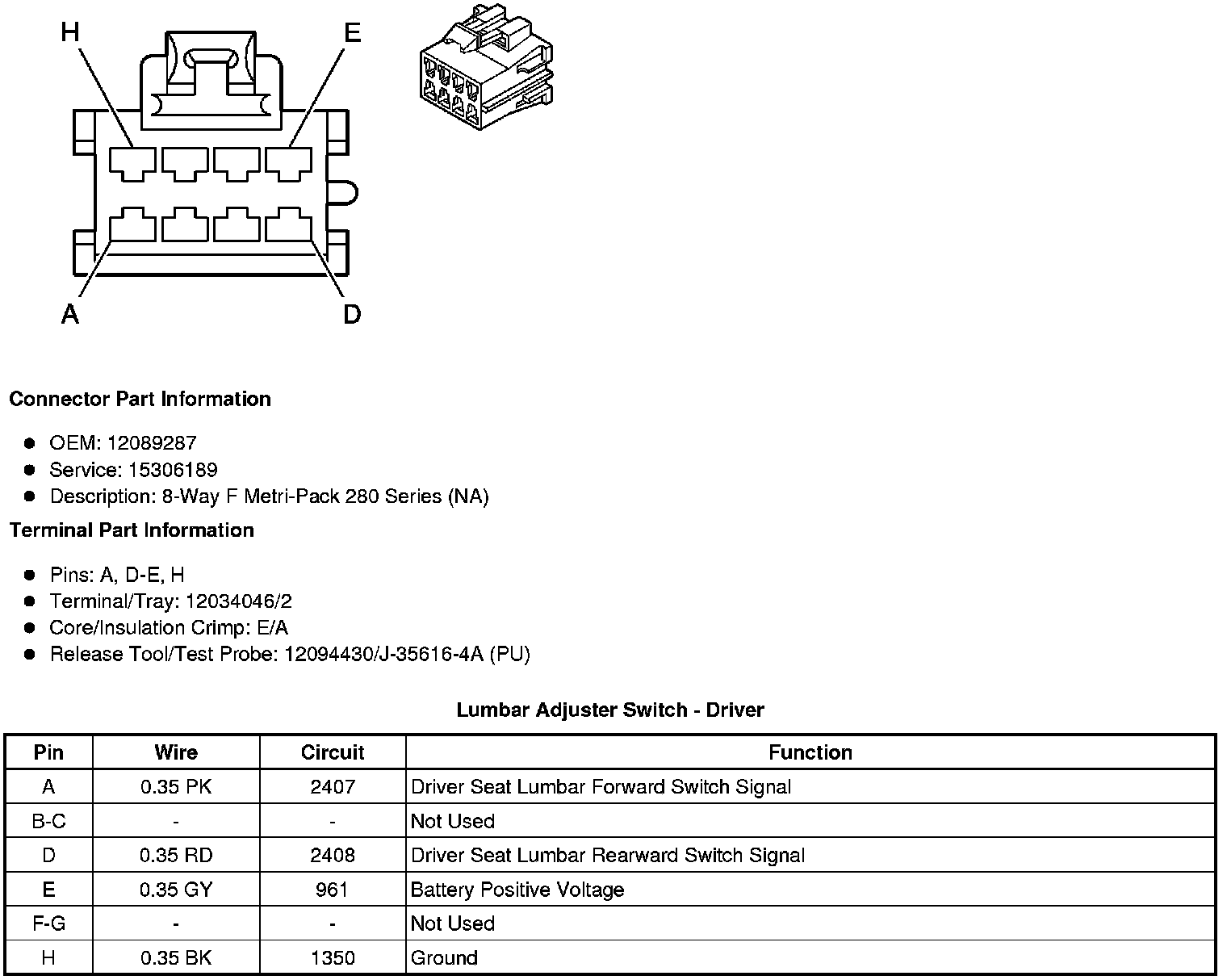

Lumbar Adjuster Switch - Driver

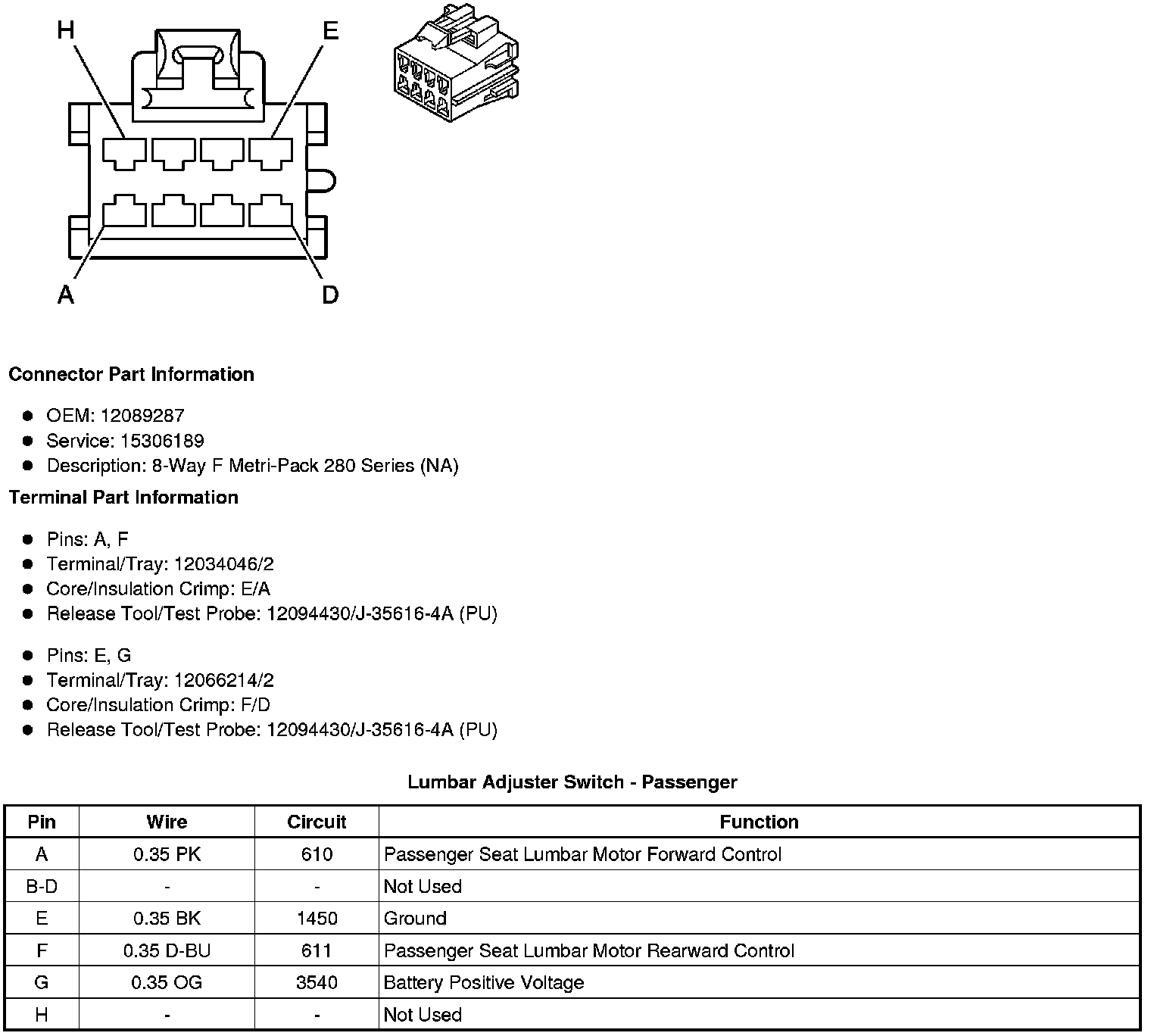

Lumbar Adjuster Switch - Passenger

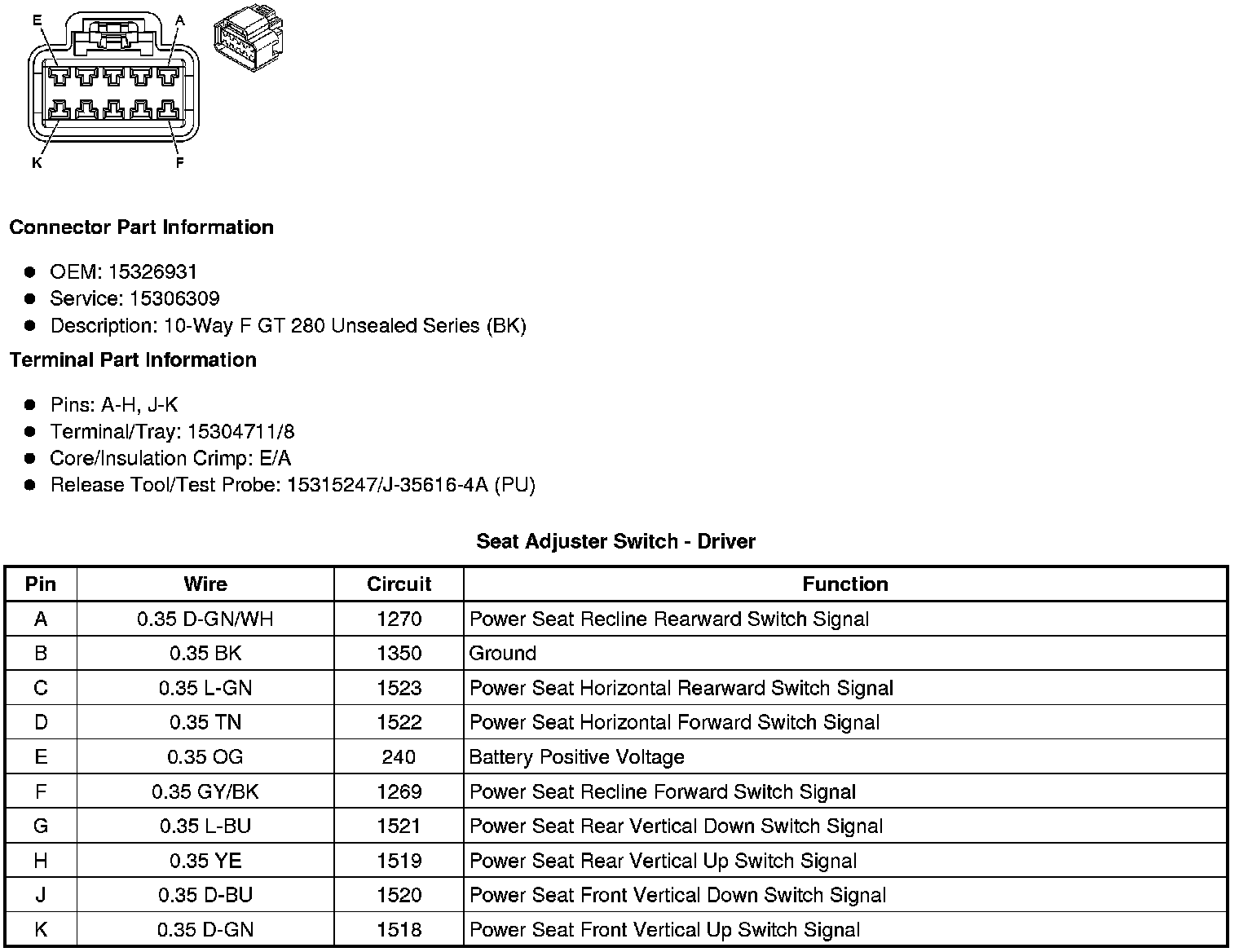

Seat Adjuster Switch - Driver

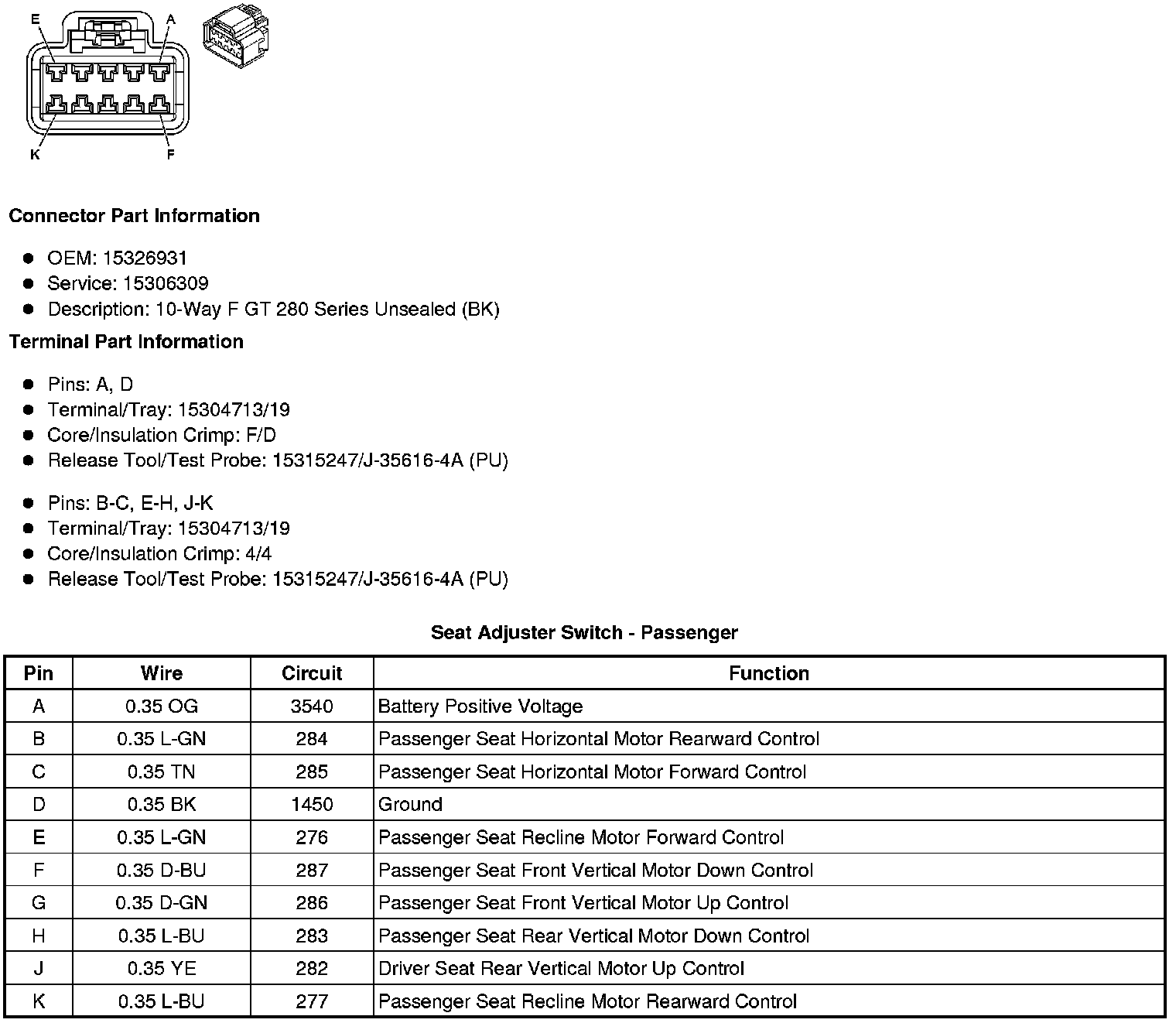

Seat Adjuster Switch - Passenger
