Instrument Panel/Center Console Component Views

Instrument Panel/Center Console Component Views

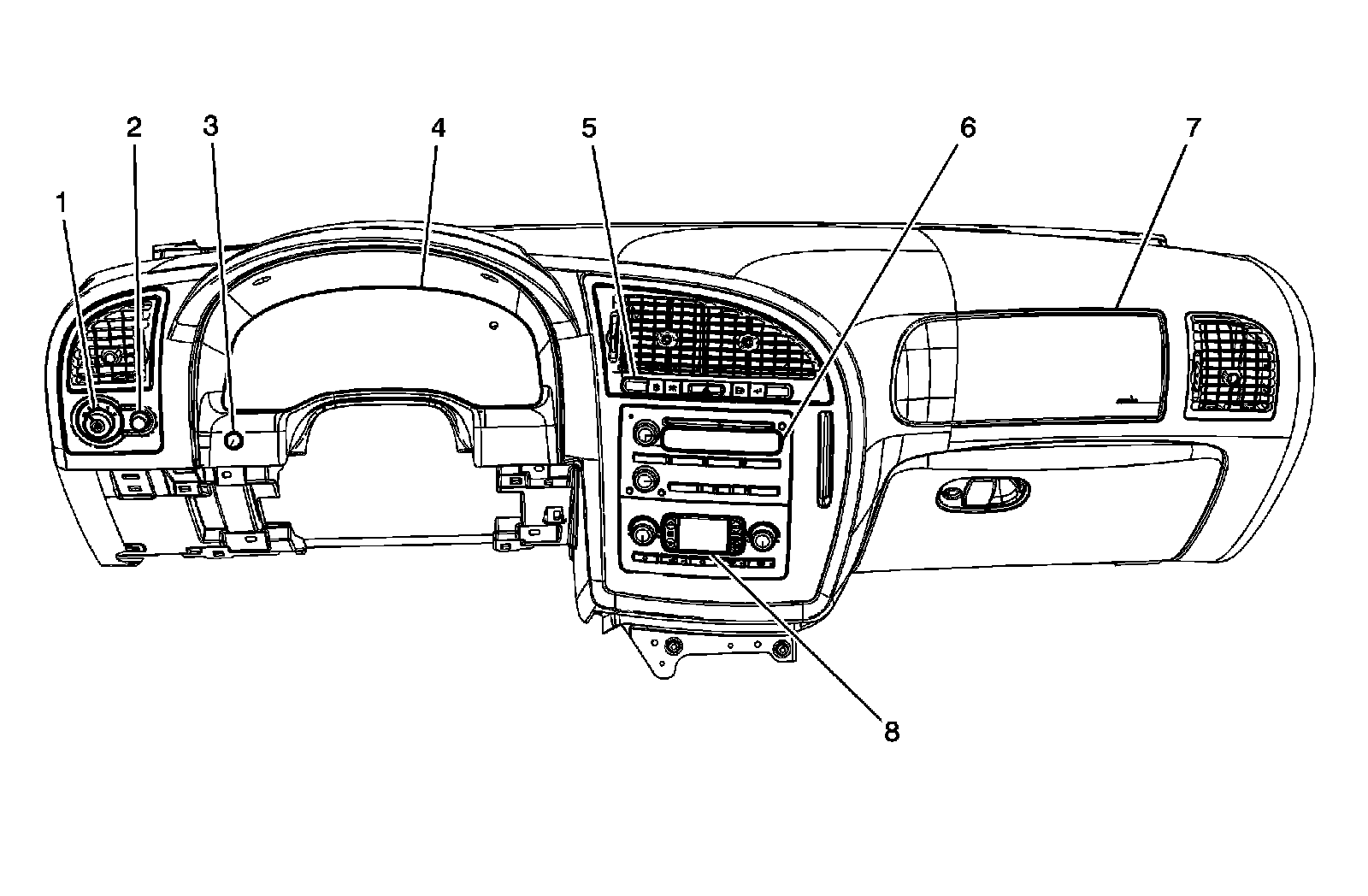

Front of the I/P Components




1 - Rear Window Wiper/Washer Switch
2 - I/P Dimmer Switch
3 - Interior Lamp Defeat Switch
4 - Instrument Panel Cluster (IPC)
5 - Driver Information Center (DIC) Switch
6 - Radio
7 - Inflatable Restraint I/P Module
8 - HVAC Control Module

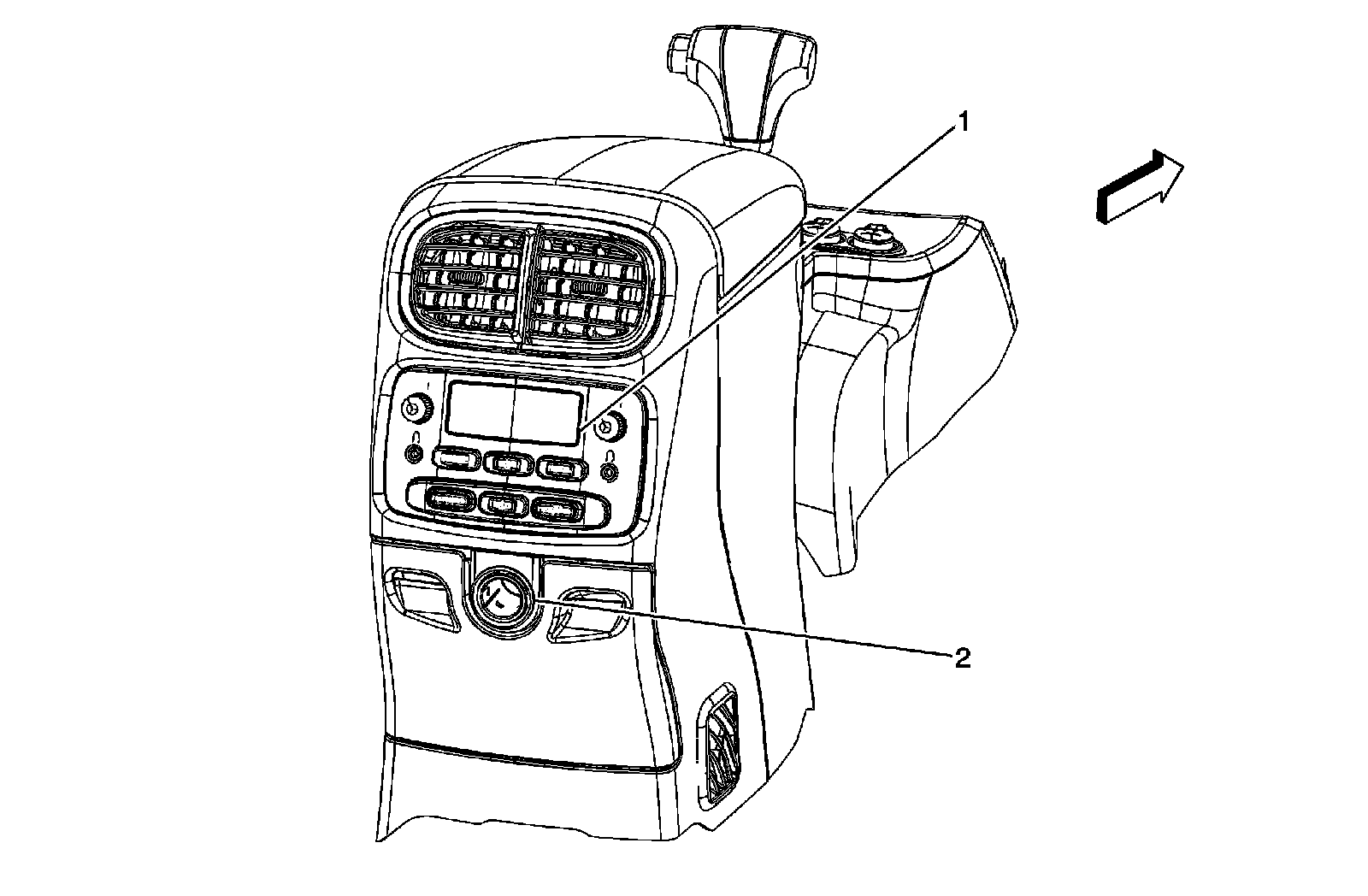

Console Components 2 of 2




1 - HVAC Control Module - Auxiliary
2 - Accessory Power Outlet - Rear
