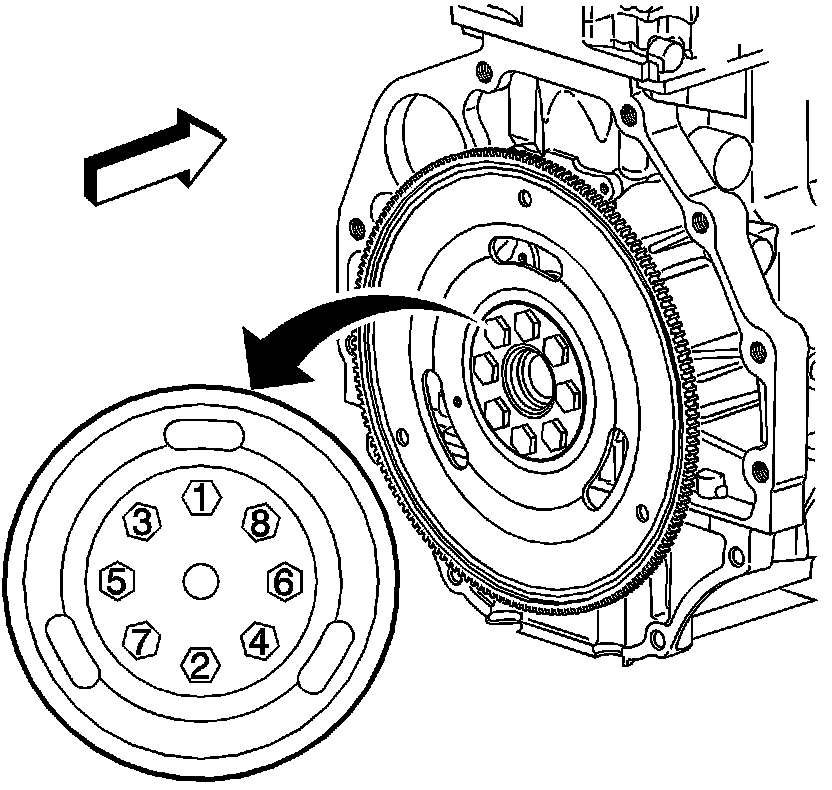

Flex Plate
FLYWHEEL
/FLEXPLATE
Engine
Flywheel
Bolt
First Pass
25 Nm (18 ft. lbs.)
Final Pass
50 degrees
