Ignition Switch: Service and Repair

Ignition and Start Switch Replacement

Removal Procedure

1. Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement (Console Shift Lever Bezel Replacement).

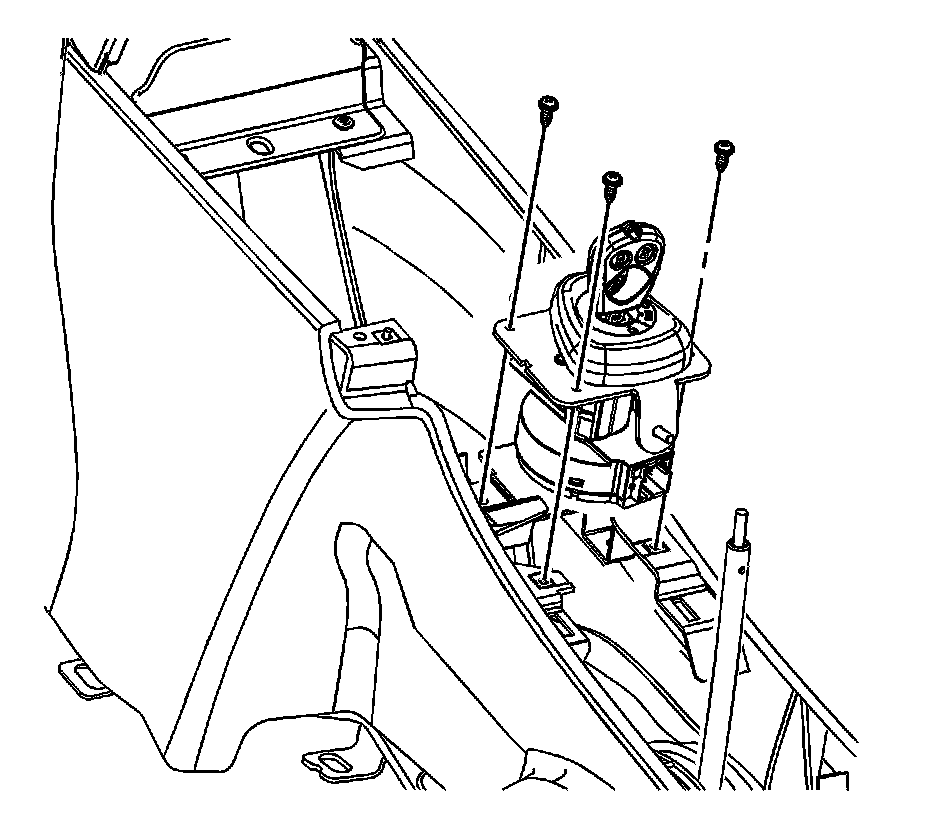

2. Remove the ignition switch assembly screws.




3. Disconnect the electrical connector.
4. Remove the ignition switch.

Installation Procedure




1. Locate the ignition switch to the console.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the screws securing the switch to the console and tighten to 2 Nm (18 in. lbs.).
3. Connect the electrical connector.
4. Install the shift lever bezel. Refer to Console Shift Lever Bezel Replacement (Console Shift Lever Bezel Replacement).
