Intake air sensor (688)
Location:
B207
on the charge air pipe

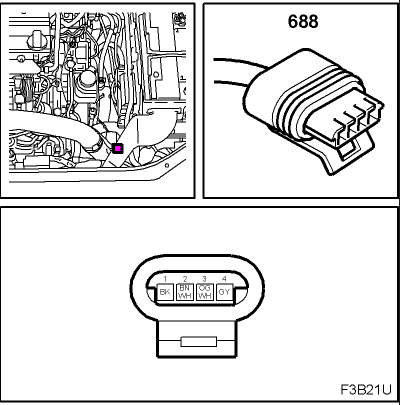

Fig 1: Identifying Intake Air Sensor (688) - B207
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
