Main relay, engine control system (229): EDC16

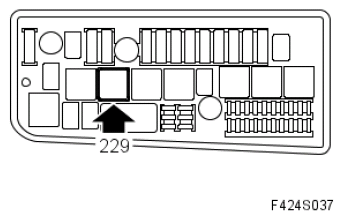

Fig 1: Identifying Main Relay, Engine Control System (229) - EDC16
G05546944Courtesy of SAAB-SCANIA OF AMERICA, INC.
ENGINE CONTROL SYSTEM RESISTANCE CHART

Resistance, winding at 20°C (68°F) Ohm 85 ± 5
Nominal control voltage V 12
Nominal current A 30
